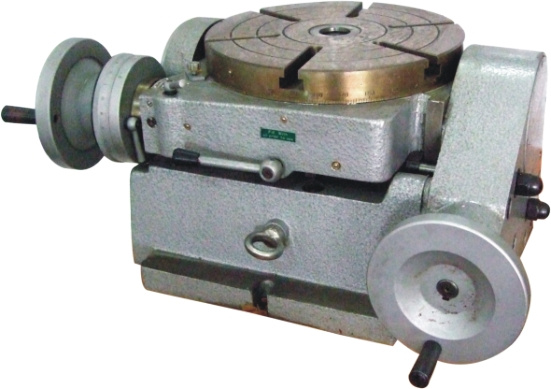

Universal Tilting Rotary Table (TSK Series)

Universal Tilting Rotary Table (TSK Series)
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: TSK -250
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: silver
Material: metal
Brand: gongda
Lead Time: have stock
Dameter Of Table: 250mm
Morse Taper Of The Center Hole: 3#
Diameter Of Center Hole: 30.6mm
Width Of T-Slot: 12mm
Modules Of Worm And Worm Gear: 2mm
Weight: 93kg
Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Contour Control
Control Method: Open-Loop Control
Numerical Control: NC
Performance Classification: Economical CNC Machine Tools

Product Description

This is an accurate designed table for milling, boring and other machine tools. This table allows indexing,

facing and other work to be carried out rapidly with extreme precision.

Tiliting range 0-90 degrees from horizontal to vertical position, 1 rotation of handle equals 3 degrees, 5

minutes tilting reading.10 Second Vernier Scale.

Table Dial 1 Minute Graduations.

Fast Degrees: Dividing Notch Pin & 24 Holes in 15 Degrees Around The insures Rapid Accurate Spacing.

Minimum Set-up time.

Rugged Construction

Specifications
TSK250

Diameter of table (mm)
Φ250

Mose taper of the center hole
3#

Diameter of the center hole(mm)
Φ30*6

Width of t-slot (mm)
12

Adjacent angle of t-slot
60°

Width of the locating key(mm)
14

Modules of worm and worm gear
2

Transmission ratio of the worm gear
0.104166667

Graduation of the table
360°

Tilting table
0°~90°

Readout of the hand wheel
1'

Minimum value of vemier
10

Minimum reading of the tilting vemier
2'

Indexing accuracy
60"

Max bearing(with table hor)kg
200

Max bearing(with table vert)kg
100

Net weight kg
80

Gross weight kg
93

Case dimensions mm
550*430*330
