| Prod Model: |
JY-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
1950+/- 50mm |
| Width: |
480+/- 20mm |
| Ascending Distance: |
200+/- 50mm |
| Forward: |
>=20° |
| Backward: |
>=15° |
| Rightward: |
>=15° |
| Back Board Fold Upward: |
>=90° |
| Head Board Fold Upward: |
>=35° |
| Head Board Fold Downward: |
>=90° |
| Table Rated Load Capacity: |
135kg |
| Using Ambient: |
Hospital |
| Material: |
Metal |
| Type: |
Medical Table |
| Type Of Stretcher: |
Without |
| Type Of Operation Table: |
Universal Operation Table |
| Numbers Of Function: |
Without |
| Type Of Medical Carts: |
Without |
| Folded: |
Without |
| Type Of Hospital Bed: |
Operation Table |
Product Description

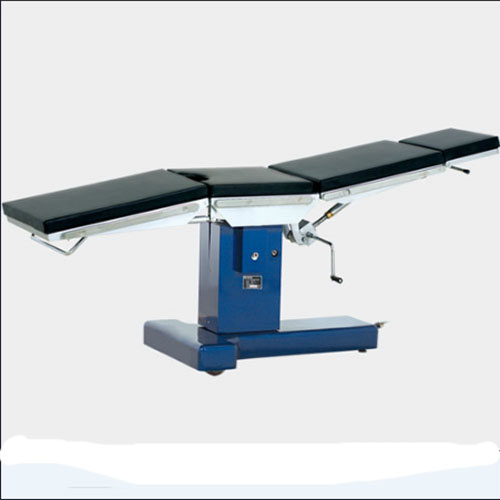

JY·B operation tables are suitable for various operations conducted by medical unit.
Features:
Various actions are controlled by hydraulic pneumatic system and mechanical driven system.
The table can be rotated 360°on the condition that the base is fixed.
Imported Y type sealing ring and is durable.
The table surface adopts imported carbon plastic plate which is easily for conducting X-ray examination, photography.
Both sides of the bed rail for the high quality 304 stainless steel.
The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.
Foot treadle brake device which is easily for moving operating table.
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waistband.JY· B Universal Operation Table is mainly used by department of thoracic surgery, ophthalmology, E. N. T., Obstetrics & Gynecology and urology for common operations.
This product adopts the foot-stepping hydraulic pressure pump which combines oil-saving pump tank with driving machine, threadlike pole drive and air vat so as to control variable movements on the table. It provides convenient operation, reliable orientation, compact and reasonable structure, novel sculpt, etc.
Technical Specifications
| Length | 1950± 50mm |
| Width | 480± 20mm |
| Maximum and minimum height of the platform | 750± 50mm 950± 50mm |
| Ascending distance | 200± 50mm |
| Forward | ≥20° |
| Backward | ≥15° |
| Rightward | ≥15° |
| Back board fold upward | ≥ 90° |
| Head board fold upward | ≥ 35° |
| Head board fold downward | ≥ 90° |
| Leg board fold downward | ≥ 90° |
| Table rated load capacity | 135Kg |
Length): 1950± 50mm
Width): 480± 20mm
Maximum and minimum height of the platform): 750± 50mm 950± 50mm
Ascending distance): 200± 50mm
Forward) ≥20°
Backward) ≥15°
Leftward) ≥15°
Rightward) ≥15°
Back board fold upward)≥ 90°
Head board fold upward)≥ 35°
Head board fold downward)≥ 90°
Leg board fold downward) ≥ 90°
Table rated load capacity): 135Kg
