Price: | US $ 50-80/Square Meter |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 1/Square Meter |
Pay Type: | T/T,Western Union |
Prod Model: | MS 01 A |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 1.22m*1.22m/1.22*2.44m |
Load Capacity: | 750 Kg / Squaremeter |
Certification: | TUV |
Main Tube: | 50*3mm |
Braces: | 20*2mm |
Dimension(L*W*H): | All Size Can Be Customized |
Quality: | Excellent |
Keyword: | Stage |
Height: | 0.6-1m/1.6-2m or Other |
Material: | Aluminum Alloy |
Usage: | Background Plate |
Characteristics: | Space Frame Truss |
Structural Classification: | Truss Bridge |
Shape: | Square |
Color: | Aluminum Silver |
Specifications of stage:
material | aluminium alloy |
stage topping | can be 18mm plywood, or 16mm organic glass ,toughen glass and so on. |
single stage size | 1.22 *1.22M.1.22*2.44M(you can put several pieces together or divided ) |
Adjustable height | 0.6-1M 1-1.4m, 1.6-2m |
Frame Main tube | 50*3MM |
Weight-Loading | 750kG/sq.m |
Features and advantages of the stage:

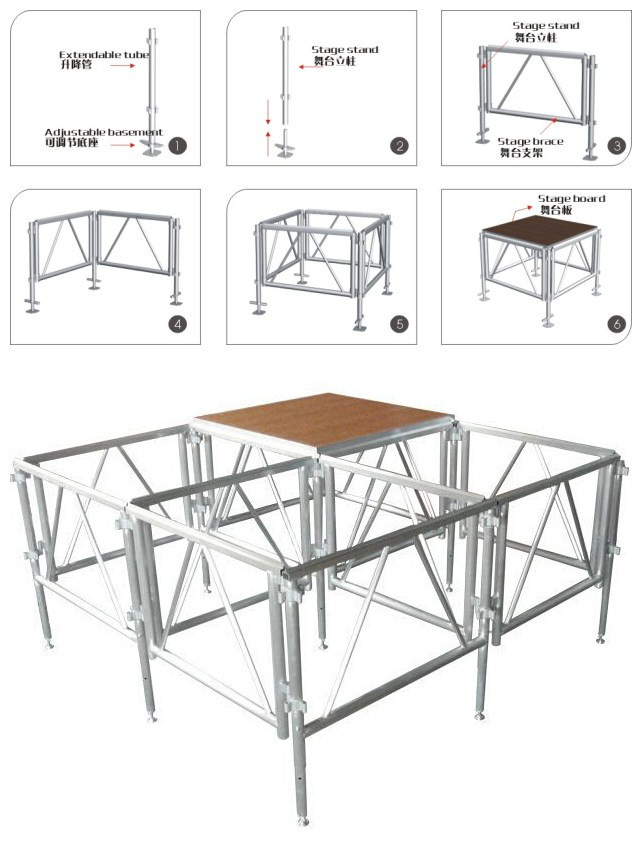

1. This kind of stage consist of stage topping, stage brace, stage stand, extendable tube and adjustable base.
2. It is easy to assemble and dismantle.
3.There are many other stage accessories to match the stage, like stage guardrail, aluminum stair.
4. There are many kinds of stage topping for your choosing, such as: laminated plywood topping, acrylic topping, fibrous topping and so on.
other kinds of stage:
stage truss system:
DRAGON STAGE EQUIPMENT (HK) CO., LTD found in 2008. We are a professional manufacturer for aluminium scaffolding, industrial platform, aluminiumtruss, moving stage, layer truss and so on .which DRAGON brand name is popular use in Europe, Australia, Southeast Asia, USA and Middle East. They are popular not only for their lightweight, but also for the good load capacity and reasonable price.They are easy install, store and transport. We are confident that once you have tried our truss and stage you will place repeat orders with us in large quantities.
