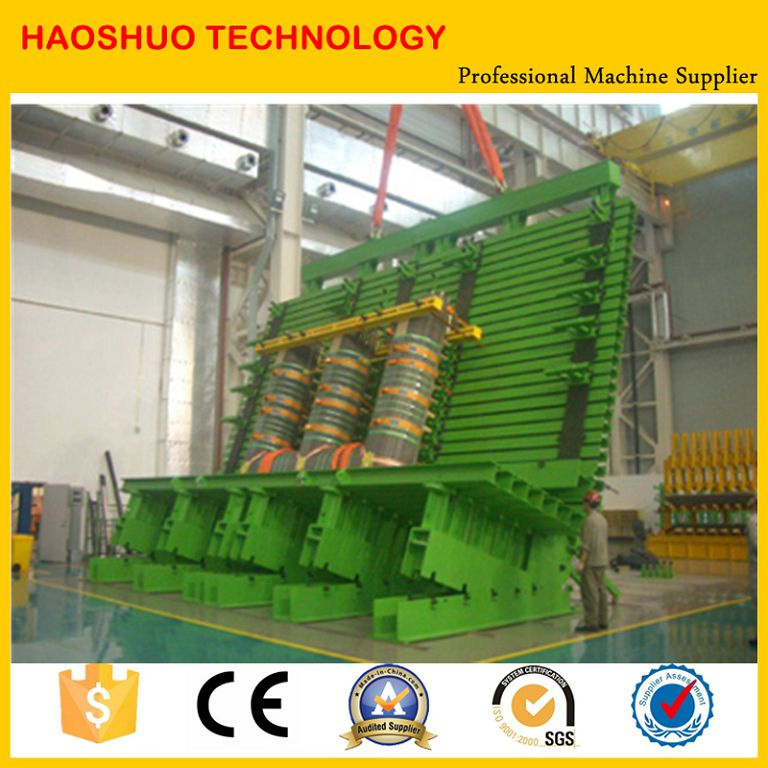

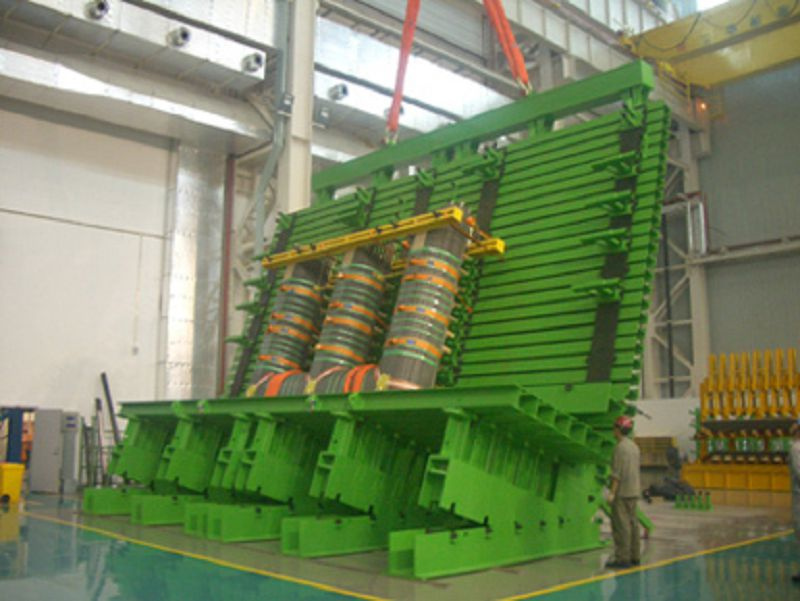

Transformer core lamination stacking table
Product description
Transformer core lamination stacking table is for huge transformer core lamination assembly and mounting.
It is equipped with adjustable profile modeling. Operator can position core pieces according to the profile modeling, thus increase laminating precision and speed. Longitudinal movement is through linear guide, rotation is driven by hydraulic or by traveling crane. Hydraulic type needs foundation.
The stacking table has 3 legs or 5 legs for optional.
Item | TXD-5 | TXD-10 | TXD-20 | TXD-50 |
Max core weight / tons | 5 | 10 | 20 | 50 |
Max core height/mm | 1800 | 3000 | 3500 | 3700 |
Max core width/mm | 2000 | 3200 | 4400 | 6400 |
Laminating precision/mm | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
Working height/mm | 1000 | 1000 | 1000 | 1000 |
Overturning degree/° | 0-90 | 0-90 | 0-90 | 0-90 |
Overturning duration/sec | 80 | 80 | 120 | 120 |
Hydraulic system pressure/MPa | 30 | 30 | 30 | 30 |
Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
