| Prod Model: |
TN-010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
CE. RoHS. SGS |
| Type: |
Network Cabinet |
| Installation: |
Wall-Mounted Cabinet |
Product Description

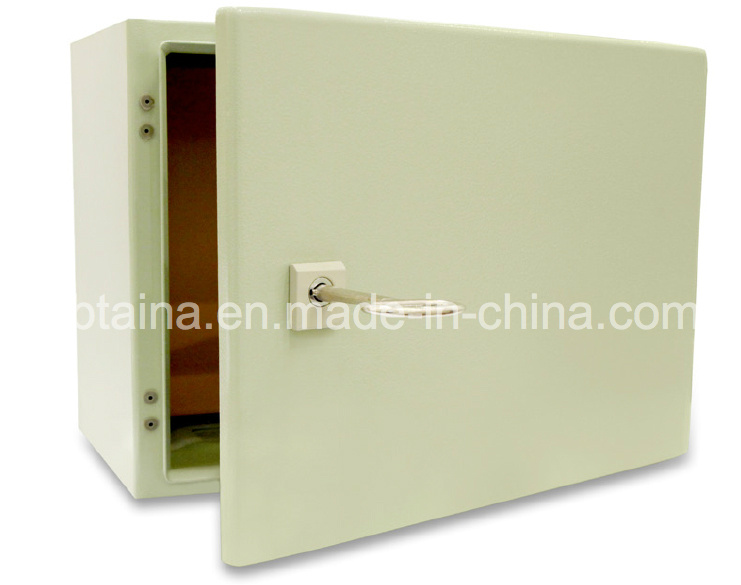

TN-010 OUT DOOR SMALL WALL MOUNT RACK
wall cabinets designed for Outdoor environ- ment. The cabinet's structure is welded and painted with
electro static powder coated finish.Easycab available in different sizes. Com- ply with ANSI/EIA RS-
310-D, DIN41497 part 1, IEC 297-2, DIN41497 standards.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting
Degree of Protection:
IP20.
Body Color:
RAL7035, RAL7044, RAL9004 etc.
Model No.
| Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-010
| 6U | 600mm | 450mm/600mm/750mm | 300mm |
TN-010
| 9U | 600mm | 450mm/600mm/750mm | 500mm |
TN-010
| 12U | 600mm | 450mm/600mm/750 | 700mm |
Optional Accessory:
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
And so on...
