| Prod Model: |
TN-007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
CE. RoHS. SGS |
| Type: |
Network Cabinet |
| Installation: |
Wall-Mounted Cabinet |
Product Description

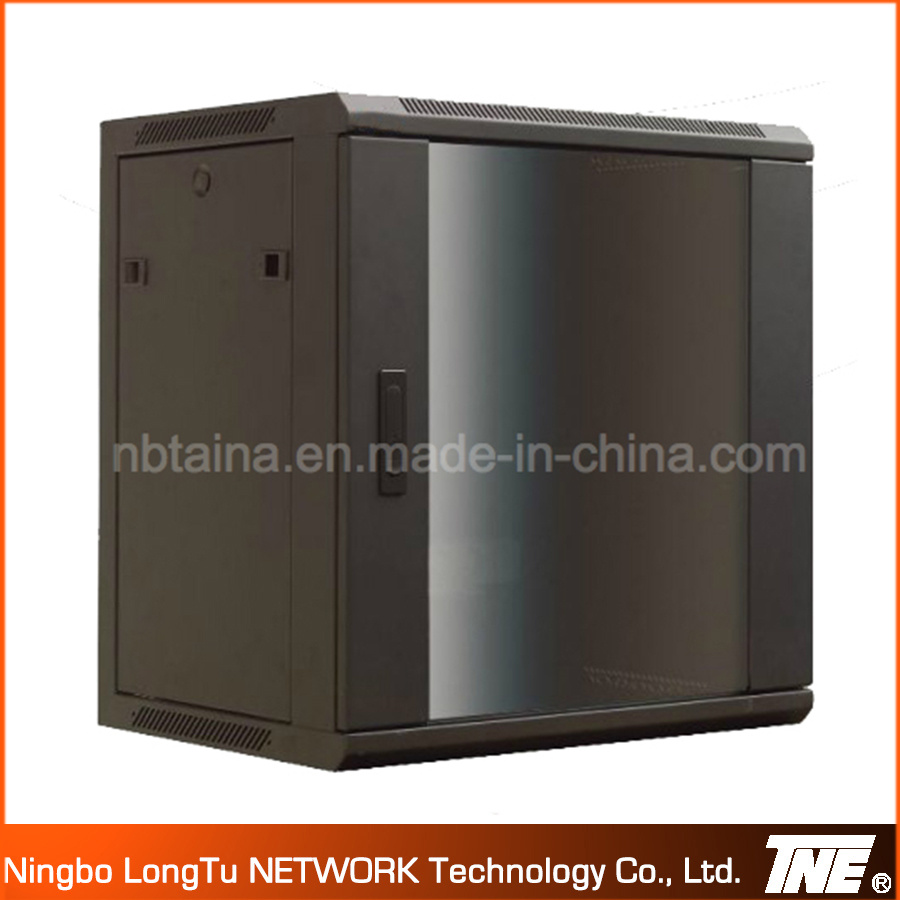

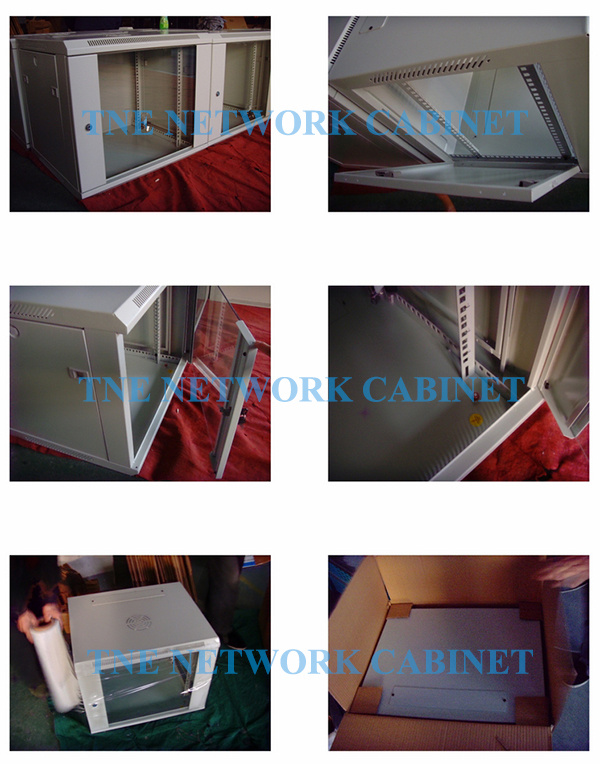

Model No. TN-007 19'' Single Section Wall Mount Cabinet (TN-007)*One Section/ Single Section Wall Mount Cabinet
*Welded frame, reliable structure
*Standing or wall mounting installation
*Adjustable feet and heavy duty castors are optional
*Removable side panels, side locks optional
*Cable entry on both of top cover and bottom panel
*120mm fan available (220V or 110V)
*Turning angle of front door is over 180 degrees.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting
Degree of Protection:
IP20.
Body Color:
RAL7035, RAL7044, RAL9004 etc.
Optional Accessory:Fixed/cantilever shelf, sliding shelf, for 450mm, 600mm depth cabinet
1U, 2U support board
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Optional lock for side panels
Earth kit
And so on...

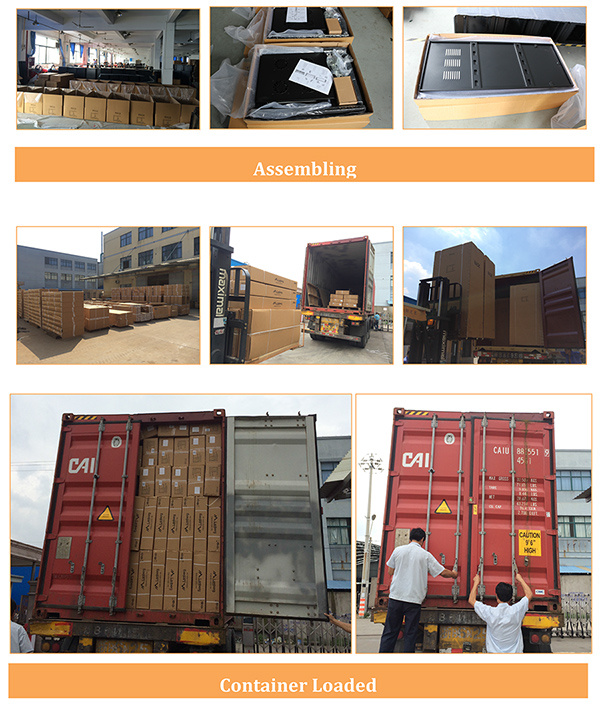

Packing Way:
Model No.
| Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-007
| 4U | 600mm | 450mm/600mm | 279mm |
TN-007
| 6U | 600mm | 450mm/600mm | 368mm |
TN-007
| 9U | 600mm | 450mm/600mm | 501mm |
TN-007
| 12U | 600mm | 450mm/600mm | 635mm |
TN-007
| 15U | 600mm | 450mm/600mm | 769mm |
TN-007
| 18U | 600mm | 450mm/600mm | 901mm |
TN-007
| 22U | 600mm | 450mm/600mm | 1082mm |
TN-007
| 27U | 600mm | 450mm/600mm |
1304mm
|
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...
TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
