| Prod Model: |
TN-004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
CE. RoHS. SGS |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Certification: |
RoHS |
| Condition: |
Used |
| Fan Number: |
2 or 4 or 6 PCS |
| Capacity: |
12u~47u |
Product Description

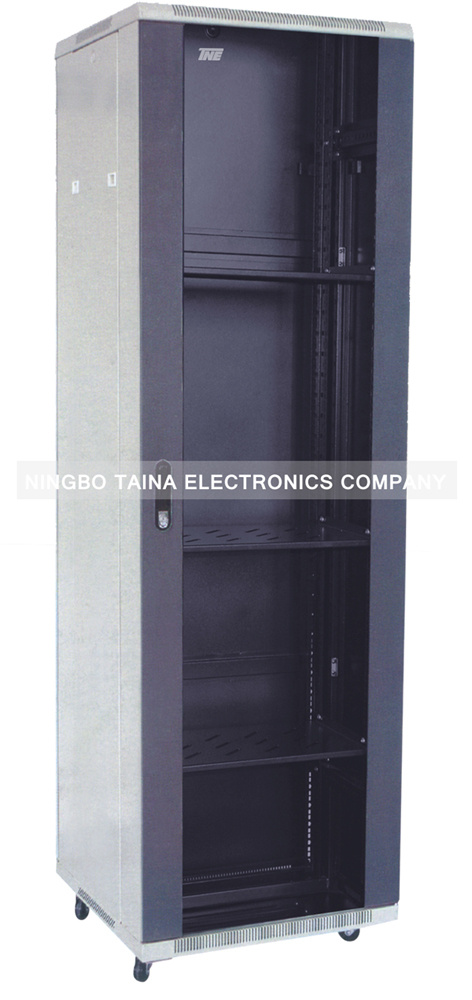

Tn-004 Model 19'' Network Cabinet for Telecom EquipmentFeathures

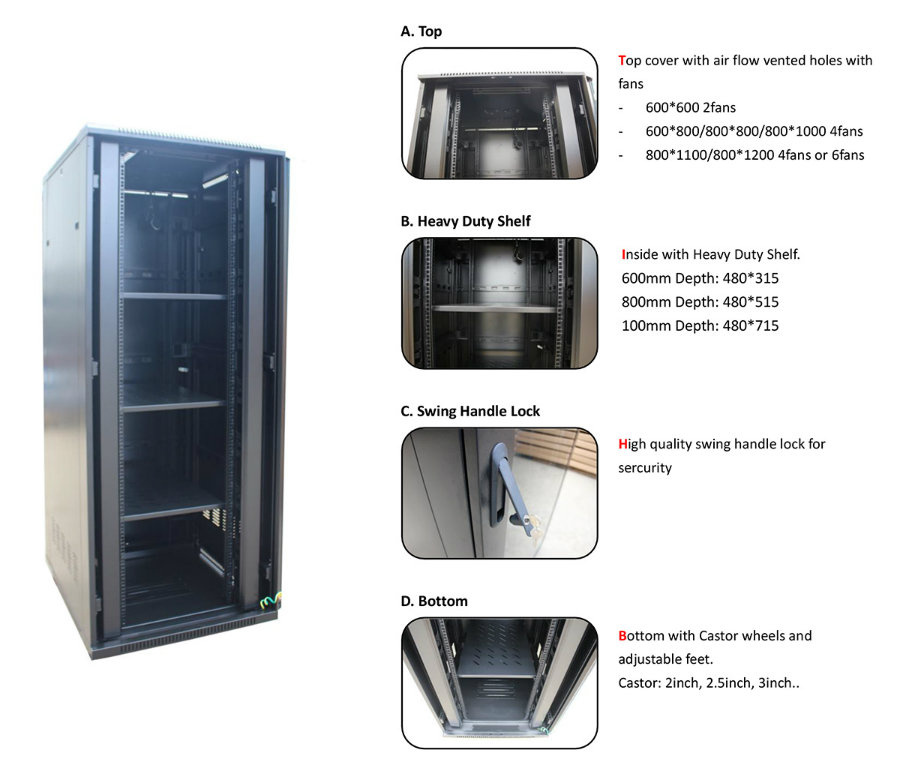

*Exquisite design with precise dimension and craftsmanship;
*Toughened temper glass door front and rear solid steel door
*Lockable door and side panels for system security;
*Fully adjustable vertical mounting rails;
*Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
*Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional AccessoryFixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...

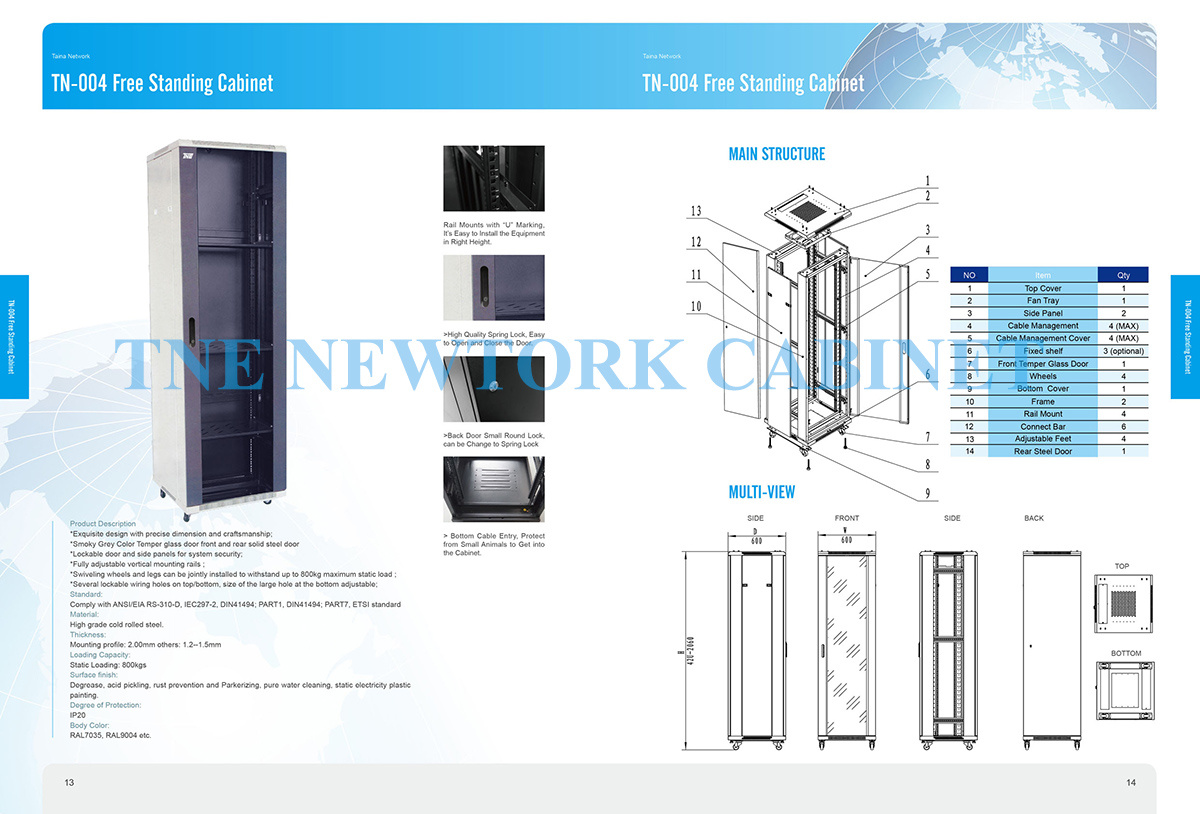

Catalog:

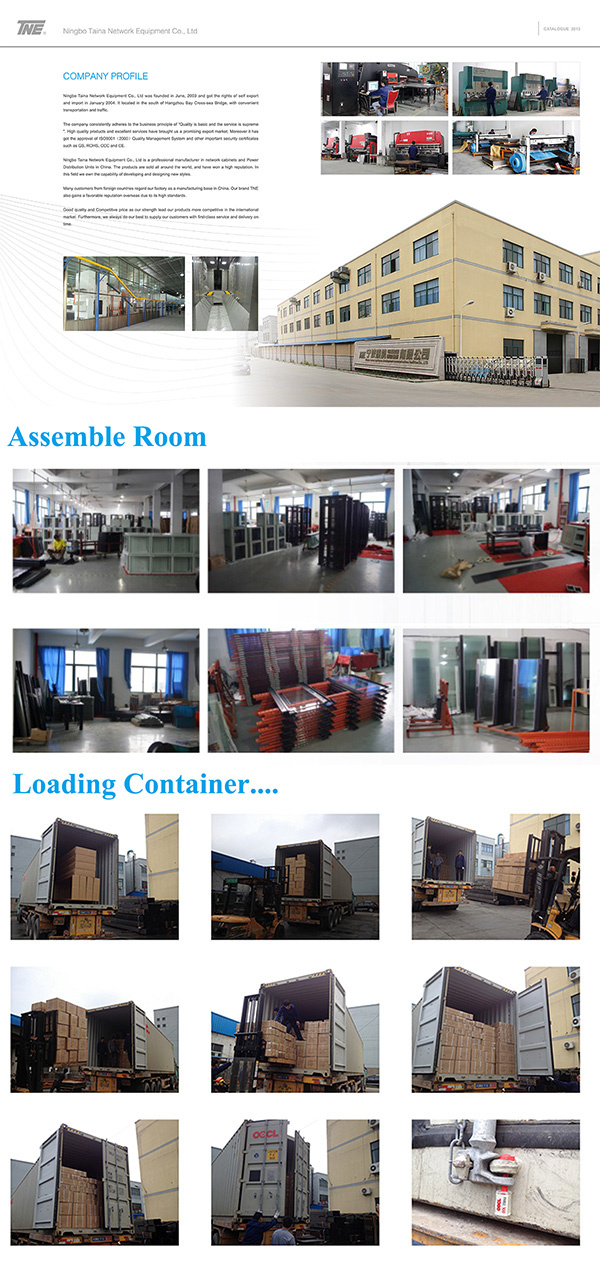

Factory Informaition:

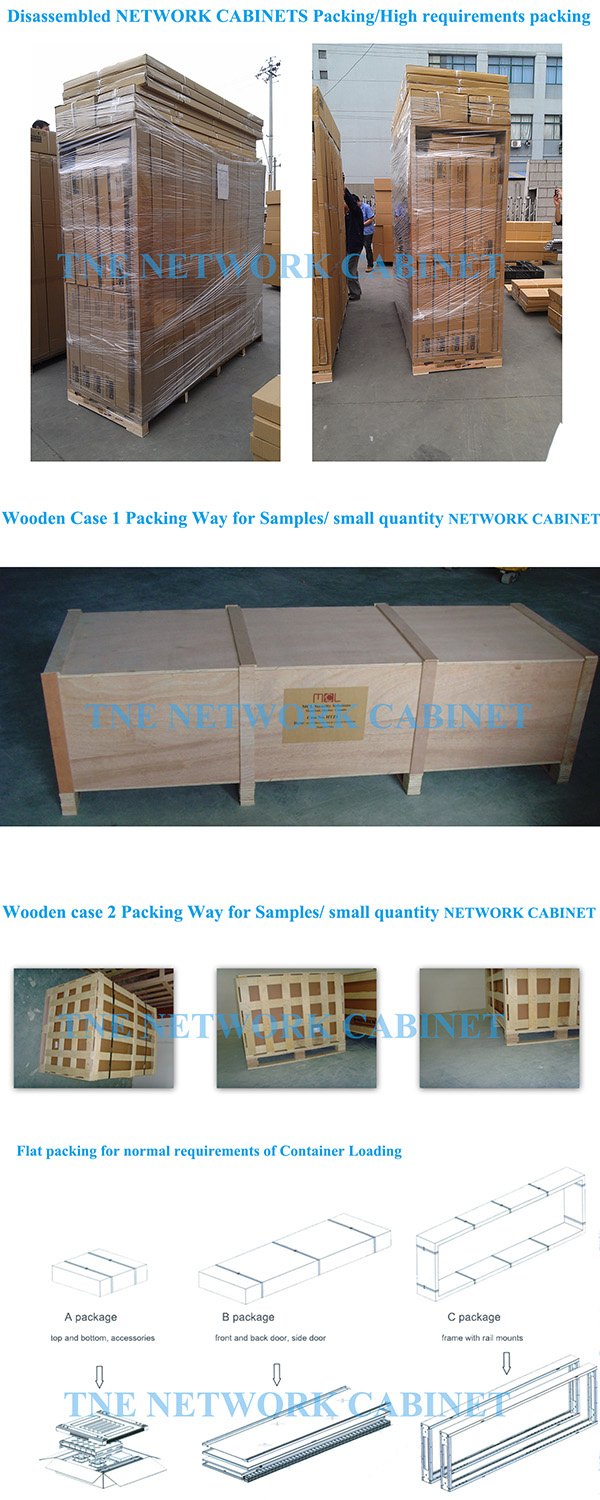

PACKING WAY:
| Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-004
| 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
TN-004
| 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
TN-004
| 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
TN-004
| 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
TN-004
| 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
TN-004
| 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
TN-004
| 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
TN-004
| 47U | 600mm/800mm | 600mm/800mm/1000mm | 2277mm |
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...

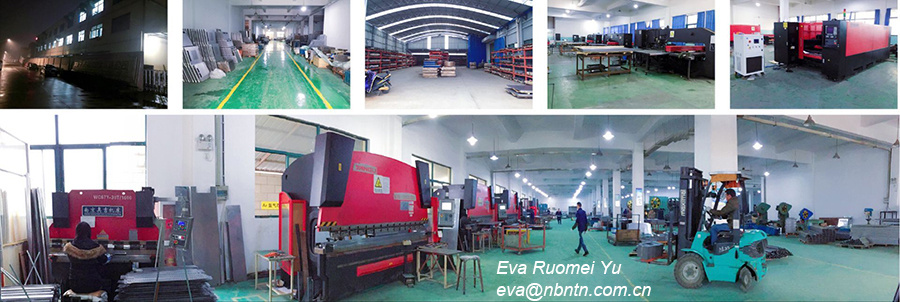

TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
