| Prod Model: |
TN-002B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
CE. RoHS. SGS |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Fan Number: |
Two |
| Certification: |
RoHS |
| Condition: |
Used |
Product Description

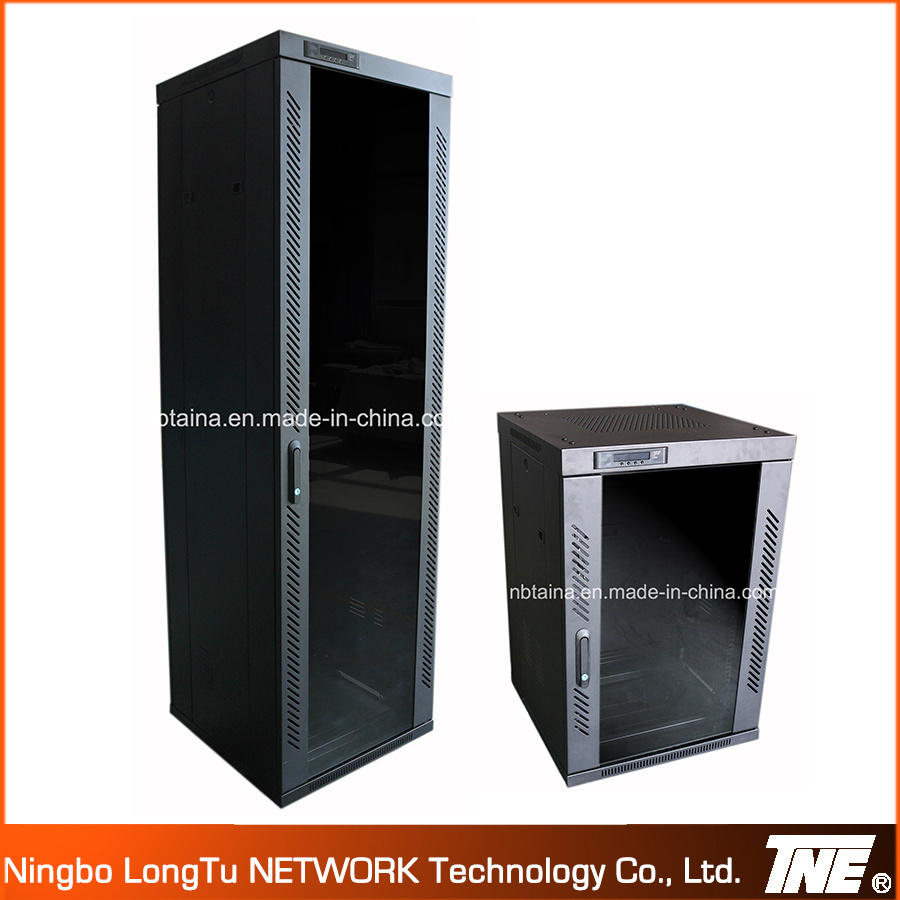

TN-002B with LCD Network Cabinet
Description:
Most Unique Design: *Top with LCD Control Panel to Control the Fans Work.
- Exquisite design with precise dimension and craftsmanship;
- Toughened temper glass door front and rear solid steel door

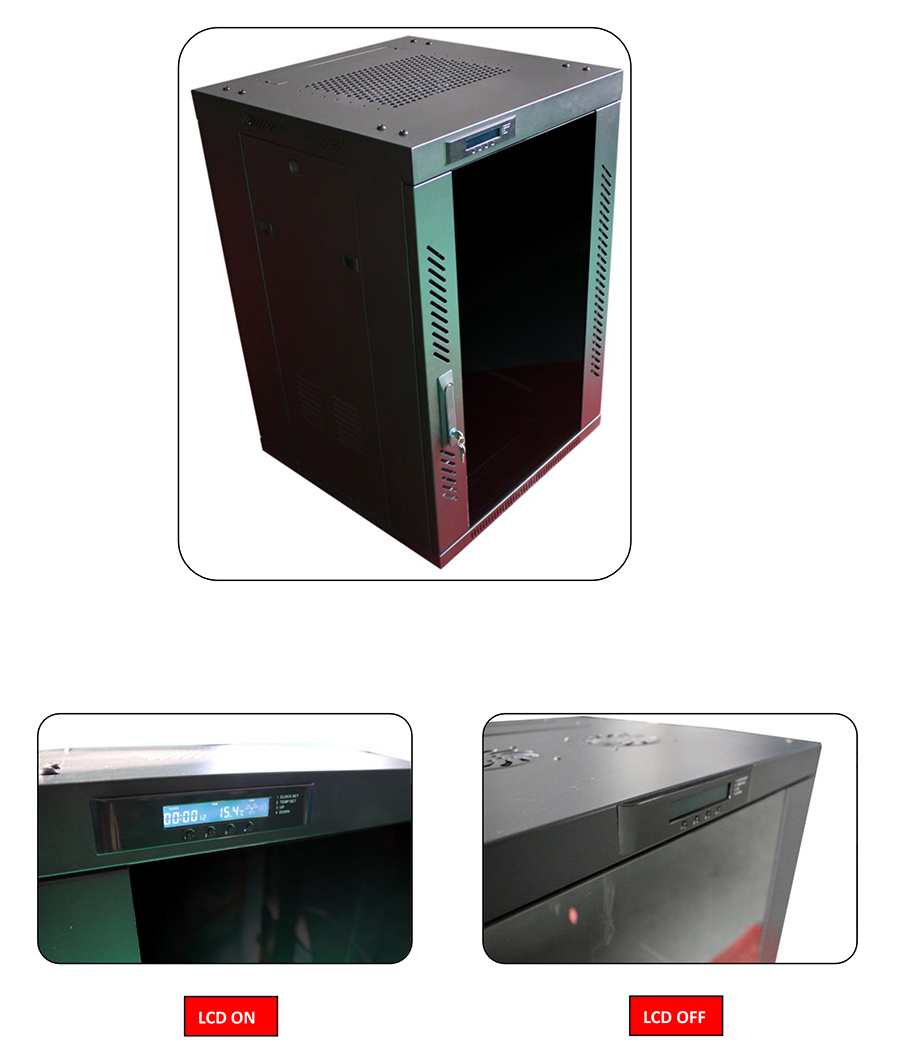

- Top with LCD Control Panel to Control the Fans Work.
- Lockable door and side panels for system security;

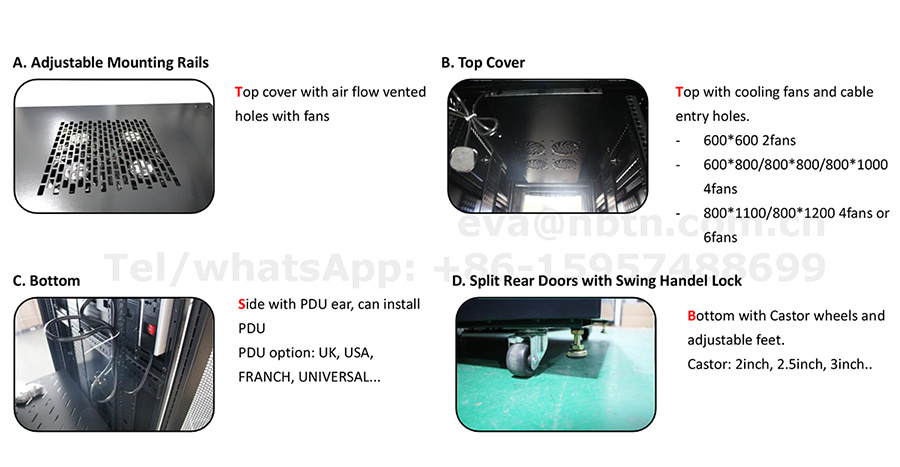

- Fully adjustable vertical mounting rails;
- Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
- Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Size Form | Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
| TN-002B | 18U | 600mm/800mm | 600mm/800mm/1000mm | 988mm |
| TN-002B | 22U | 600mm/800mm | 600mm/800mm/1000mm | 1166mm |
| TN-002B | 27U | 600mm/800mm | 600mm/800mm/1000mm | 1388mm |
| TN-002B | 32U | 600mm/800mm | 600mm/800mm/1000mm | 1610mm |
| TN-002B | 37U | 600mm/800mm | 600mm/800mm/1000mm | 1833mm |
| TN-002B | 42U | 600mm/800mm | 600mm/800mm/1000mm | 2055mm |
| TN-002B | 45U | 600mm/800mm | 600mm/800mm/1000mm | 2188mm |
| TN-002B | 47U | 600mm/800mm | 600mm/800mm/1000mm |
2277mm
|
Optional Accessory:- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
