Tilting Air Flotation Table / Glass Breaking Table

Tilting Air Flotation Table / Glass Breaking Table
Price: US $ 4000-6000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 2236
Type: Glass Cutting Machine

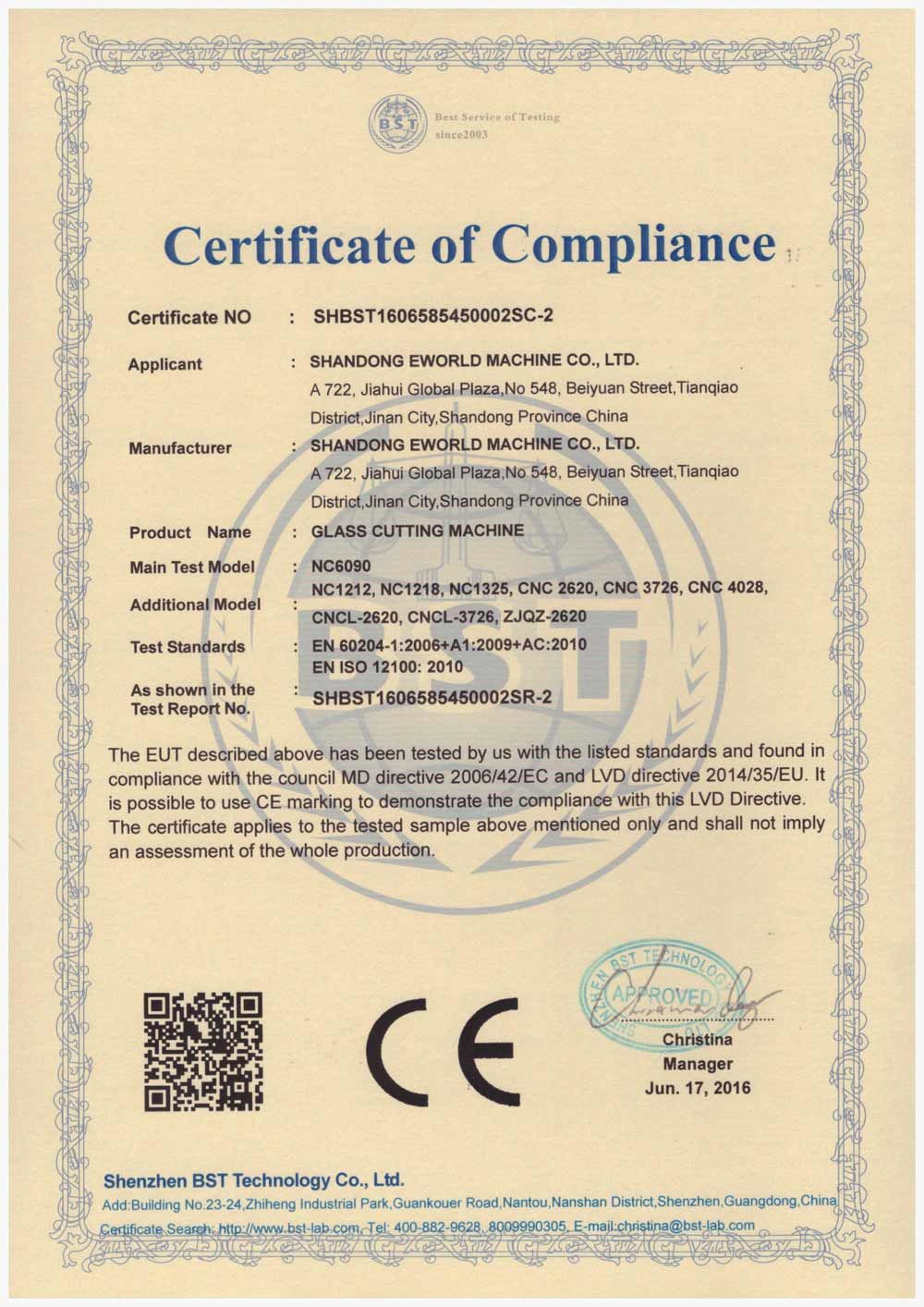

Certification: CE
Control System: Motor
Glass Washing Machine Type: No
Glass Edging Machine Type: No
Grinding Head Number: No

Product Description

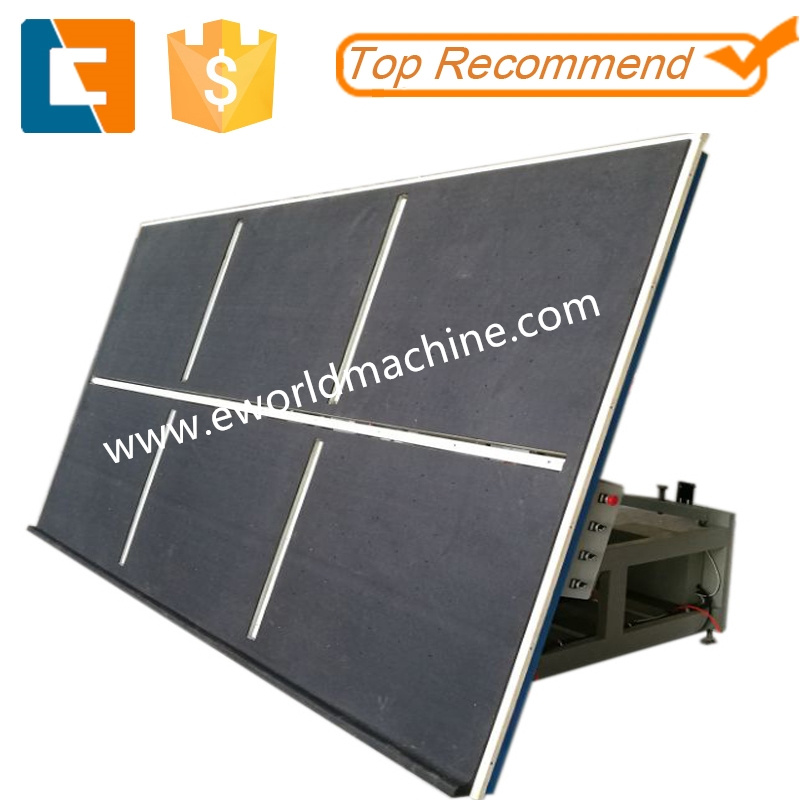

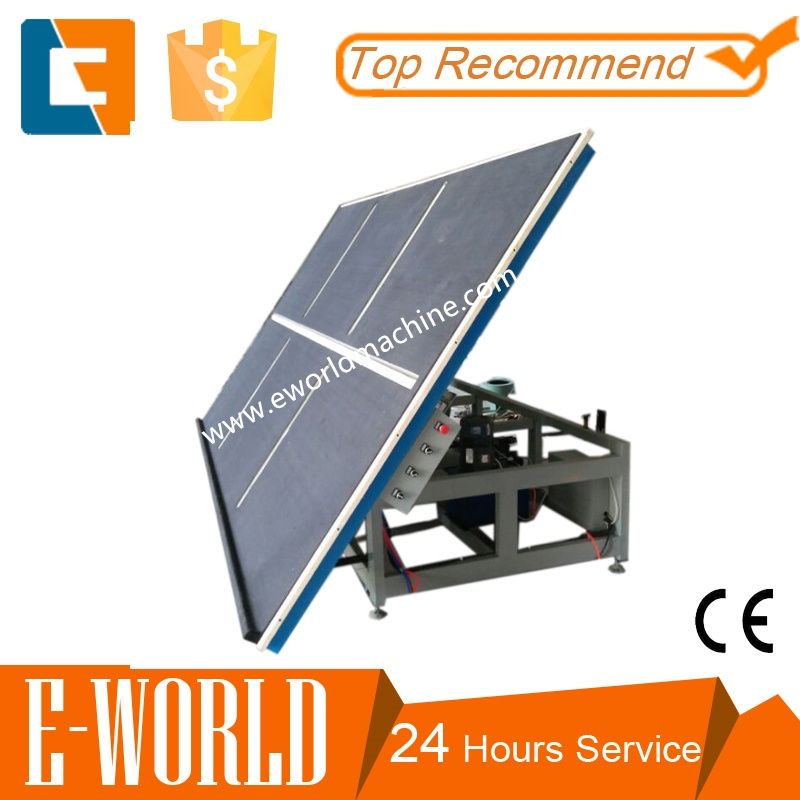

Tilting Air Flotation Table / Glass Breaking Table


 This machine working surface is equiped with air floating blower system for easy handing and shifting movement of the glass.

With hydraulically operated tilting table for stable and smooth ascending and descending motion and had pinions for catching the glass to ensure safety during loading of glass.

The pneumatically controlled X and Y  glass breaking bars can be activated by individual foot pedal swith to control each work position and section for large size cutting.
Table components: Strong metal Frame, strong metal table ,air float system, air supply system ,breaking system, tilt system


Technical parameter:
  1. input power: 380V,50HZ
  2. Workable glass thickness: 3-19mm
  3. 3 PCS breaking bars
  4. Blower protection system
  5. Power: 3 KW
  6. Table size: 2000*3000mm
  7. Weight: 700 KGS

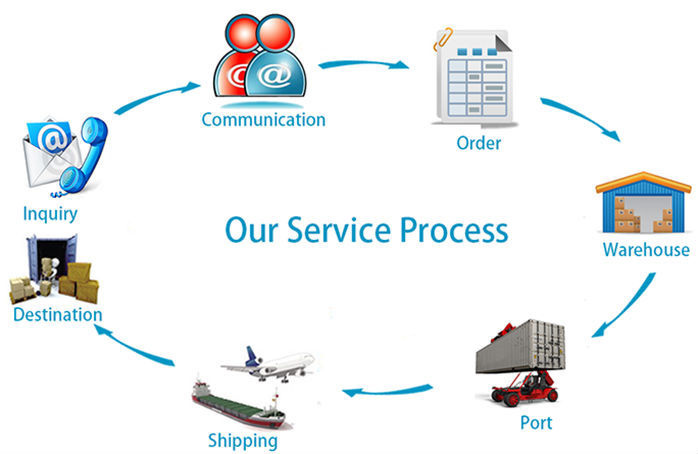

Our service


Our team

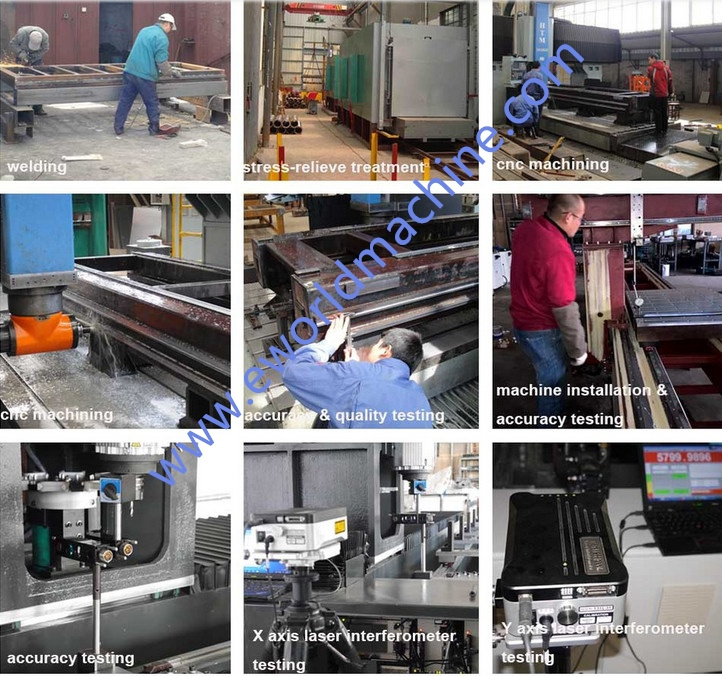

Manufacture process


Shandong Eworld Machine Co., Ltd is one of the famous and big manufacturers of glass equipments, windows equipments, CNC equipments. Since its inception in 2002, and after more than 10 years of development and growth, the company is now playing a leading role in glass machine manufacture industry in China.

Advanced products, exquisite techniques, solid working and cordial services all give birth to the unique culture of "EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers with the best service.

Main products: Insulating Glass Production Line, Glass Washing machine, Glass Cutting machines, Glass Edge polishing machine, Glass laminating machine, Glass drilling machine, Glass printing machine, Glass sandblasting Machine, Water jet cutting machine CNC Router, Laser Machines, PVC window and door machine, Aluminum window and door Machines. Scrap metal arts.

We take credit as the base of business and mutual benefits as the soul of business.

`Besides perfecting each product with our utmost effort.

`We regard customers as our partners and provide service surpassing the expectation of customers.

`We promise "Sincere Service, Permanent Promise".

EWORLD---bE Worthy Of youR Last Decision.
