| Prod Model: |
AG-40S |
| Motor Power: |
1.1kw |
| Control Type: |
on-off / Two-Stage |
| Output: |
300000 Kcal/H |
| Power Source(50Hz): |
380V |
| Gas Calorific Value: |
8500kcal/Nm |
| Color: |
Gray |
Product Description

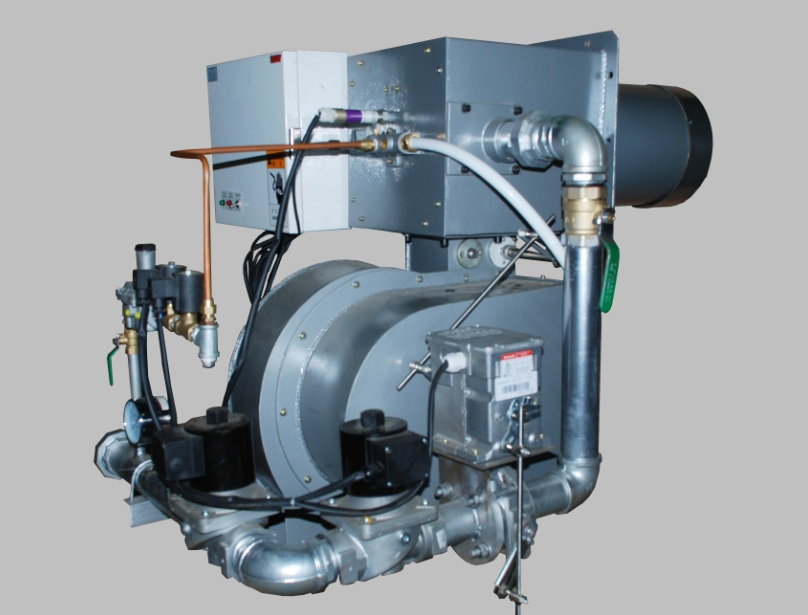

AG Fuel Gas Burner
Characteristics:1.Reasonable instruction:
The assembly of the combustion rotor,controller,safety device etc in the machine,all use compact configuration .Toughness.it is concise and practical,managing space.
2.Reliable performance:
First,the ignition adopted new design,therefore can guarantee even in a strong wind interference it
Still can remain stable under the buring .in addition,this product has safe and reliable gas ignition
Devices,can guarantee high-performance combustion flme.
3.Safety
Olympia gas burnes is adapted with external mixing combustion method,th us eliminating the inverse fire danger .At the same time guarantee the stable combustion flame,burning and control device designed to meet the safety requirements of gas cookers.
4.Maintenance and overhaul:
This product design makers for movement and tear open outfit,therefore,it is more likely to overhaul,clean and other maintenance. Technical parameters| No | Name | Specification |
| 1 | Model | AG-30 |
| 2 | Output | 30×10kcal/h
|
| 3 | Fan power (kw) | 1.1 |
| 4 | Gas calorific value | 8500Kcal/NM
|
| 5 | Control Type | |
| 6 | Gas supply pressure | 300-500 mmHO |
Technical Support
Supply range:| No | Name | Brand | Amount |
| 1 | Fan motor | OLPY | 1 set |
| 2 | burner | OLPY | 1 set |
| 3 | solenoid valve | Imported | 2 pieces |
| 4 | ignition transformer | Imported | 1 piece |
| 5 | GAS pressure switch | Imported | 1 piece |
| 6 | Air Pressure Switch | Imported | 1 piece |
| 7 | The proportion of air damper | Imported | 1 piece |
| 8 | Electric control box ( with Scale ) | OLPY | 1 piece |
| 9 | gas gauge | Imported | 1 piece |
| 10 | Control Motor | Imported | 1 piece |
| 11 | gauge | Imported | 1 piece |
| 12 | igniter solenoid valve | Imported | 2 pieces DN15 |
SPECIFICATIONS(specifications): | MODEL | A | B | C | D | E | F | G | H | I | J | K |
| AG-5S | 250 | 270 | 270 | 275 | 115 | 100 | 101 | 200 | 180 | - | 4-10 |
| AG-10S | 270 | 277 | 275 | 290 | 120 | 100 | 114 | 200 | 180 | - | 4-10 |
| AG-15S | 362 | 293 | 360 | 365 | 135 | 100 | 140 | 270 | 240 | - | 8-12 |
| AG-25S | 397 | 293 | 410 | 415 | 135 | 100 | 160 | 270 | 240 | - | 8-12 |
| AG-30S | 425 | 305 | 440 | 470 | 135 | 120 | 180 | 270 | 240 | - | 8-12 |
| AG-40S | 460 | 305 | 480 | 505 | 135 | 120 | 180 | 270 | 240 | - | 8-12 |
| AG-45S | 460 | 305 | 480 | 505 | 135 | 120 | 180 | 270 | 240 | - | 8-12 |
| AG-60S | 505 | 435 | 540 | 540 | 155 | 120 | 216 | 340 | 310 | - | 8-12 |
| AGP-80S | 576 | 450 | 570 | 640 | 175 | 150 | 240 | 380 | 350 | 240 | 12-12 |
| AGP-100S | 576 | 460 | 570 | 650 | 182 | 150 | 260 | 400 | 364 | 240 | 12-12 |
| AGP-150S | 626 | 490 | 580 | 710 | 225 | 180 | 290 | 450 | 410 | 240 | 12-13 |
| AGP-200S | 676 | 510 | 600 | 760 | 245 | 180 | 330 | 490 | 450 | 260 | 12-13 |
| AGP-250S | 910 | 525 | 640 | 1020 | 260 | 200 | 360 | 520 | 480 | 280 | 12-13 |
| AGP-300S | 950 | 550 | 660 | 1050 | 290 | 200 | 410 | 580 | 544 | 300 | 12-13 |
Our certificates:
About us: Qingdao Olympia Heat Energy Equipment Co., Ltd
Qingdao Olympia Heat Energy Equipment Co., Ltd is a professional manufacturer of burners. Sino-Japan Liaoyang Olympia Co., Ltd was founded at the beginning of 1990s through borrowing the advanced technology from Japan. Under the demand for further development, Qingdao Olympia Heat Energy Equipment Co., Ltd was established in 2003.
The company main products include burners of fuel oil, fuel gas, and mixed oil and gas including all kinds of specifications from small-size civil burners to large-scale industrial burners. Meanwhile, the company also produces heat energy equipments such as hot water boiler, air furnace, incinerator for medical purpose, etc. Nearly two years, the company also developed no-emission environmental protection and energy saving toilet, infrared sauna equipments and far-IR road-building heating equipment.
The company has set up distributions branches in large and medium cities such as Shenyang, Shanghai, Nanjing and Changchun. The company Technology Department will sincerely offer users with technical consultation and personnal training, and continue to provide users with high-quality products and services according to the operation tenet of honesty, innovation and high-grade quality, on the basis of the high technology, and through fully attracting the advanced technology and experience in China and abroad.
Products are widely used in hotels, restaurants, highway, fitness center, sauna bath, factories. etc, especially for environmental protection toilets, where no sewage treatmentWe have recieved the high praise from our customers. Company products with environmental protection, energy saving, safe, convenient and efficient characteristics, win a good business prestige and higher well-knownness, the sales network spreads all over the country.
We applaud warmly persons of various social communities to come for business negatiation and consultation or giving instructions. Let us contribute together to energy sources industry of China.
