| Prod Model: |
ZH-HS-100A~F |
| Calibration Certification: |
Available |
| Humidity Range: |
10%~98% Relative Humidity |
| Temperature Cooling Speed: |
1degree ~ 20 Degree Per Min, Customized |
| Service: |
OEM / ODM / Non-Standard Available |
| Application: |
School, Hospital, Lab, Factory |
| Power Supply: |
AC220V/AC380V, Customized |
| Temperature Range: |
-70~150 Degree |
| Cooling System: |
Water Cooling / Air Cooling |
Product Description
Temperature Humdity Cabinet with humidity control
Temperature Humdity Cabinet with humidity control (different size and temperature range customization)
1.LCD touch screen
2.Inner material:SUS#304
3.Tato controller, with Independent R &D software (7 languages)
4.Teme. Range: -70~150/180C adjustable
Accessories;
Inner door with operation hole (optional)
50mm or100mm Entrance hole for test wire, Dia. 50mm or 100mm
Sample Shelves, two layers
R232 or R485 communication Interface
OEM customization available
High cost-effective
CE, RoHS, FCC Marked Equipment,
ISO certificated
SGS tested SUS#304 stainless steel
Constant Temperature and Humidity test chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
The test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Rectangular glass viewing window, with lighting to keep bright inside the chamber; using double-layer glass makes a clear observation for test items at any time; windows with anti-sweat heater device to prevent water from vapor condensation and water droplets, and high-brightness PL fluorescent lamp keeps the lighting inside the chamber.
Product Specifications:
| Model | ZH-HS-80
(A~F) | ZH-HS-150
(A~F) | ZH-HS-225
(A~F) | ZH-HS-408
(A~F) | ZH-HS-800
(A~F) | ZH-HS-1000
(A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC; F:-70ºC) (High:+100ºC/+150ºC) |
| Humidity range | 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition) |
Temp analytic accuracy/
uniformity | 0.1ºC/±2.0ºC |
| Temp. Fluctuation | ±0.5ºC |
| Humidity analytic accuracy | ±0.1%;±2.5% |
| Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min |
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer |
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials |
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C) |
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system |
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 |
| Compressor | Original France "Tecumseh" brand |
| Controller | Tato Taiwan, Independent R&D software (7 languages) |
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 |
| weight (kg) | 150 | 220 | 270 | 320 | 450 | 580 |

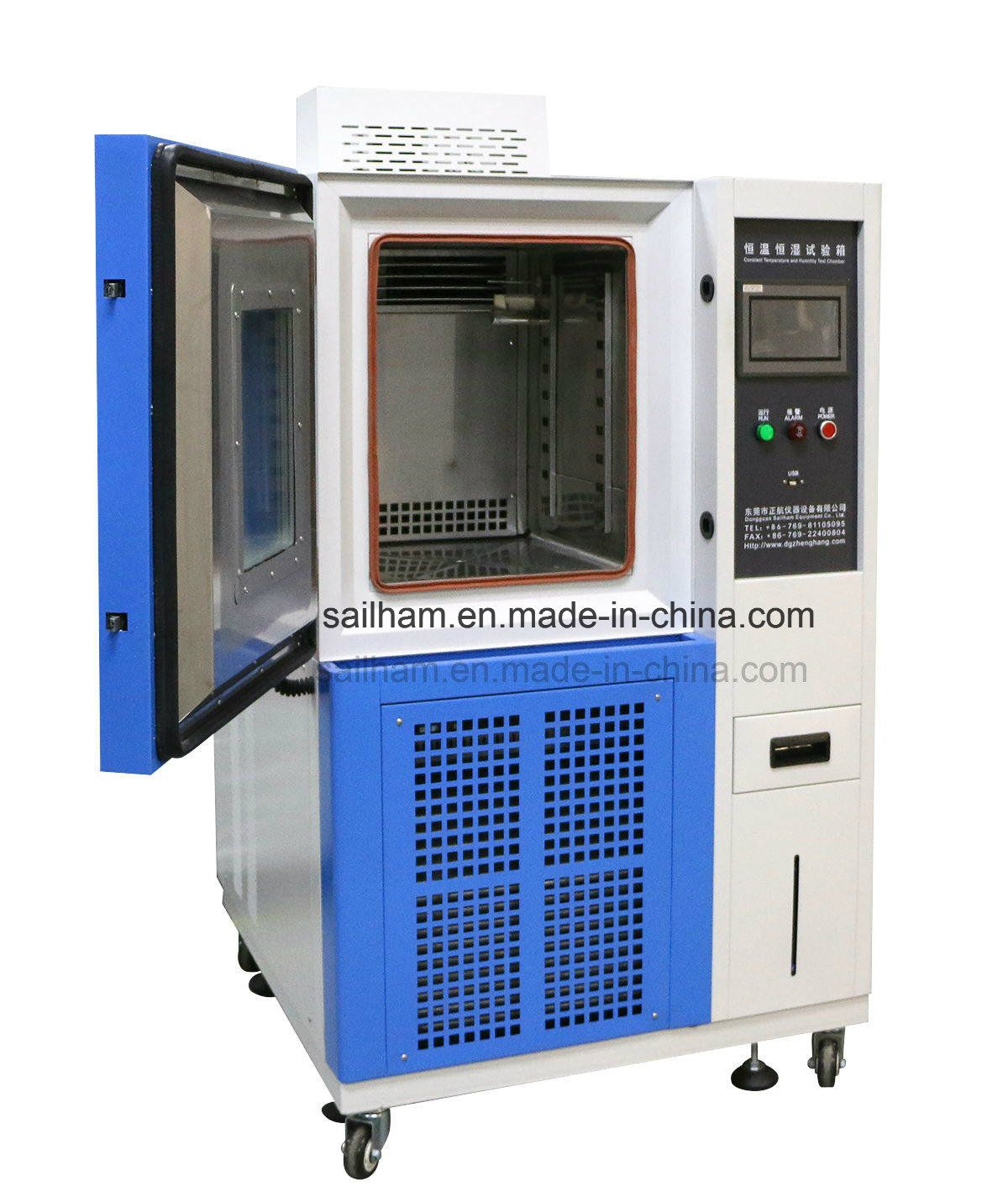

Product image:
Trade show:
Wooden case for export:
Certifications:
RFQ:1. How to choose the most suitable fitness
Temperature humidity test chamber?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
2. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 34 countries, like USA, Canada, Columbia, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
