| Prod Model: |
CNCSG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Thickness: |
1-300mm |
| Cutting Speed: |
50-9000mm/Min |
| Position Speed: |
20m/Min |
| Drive Mode: |
Double Side, AC Servo Motor |
Product Description

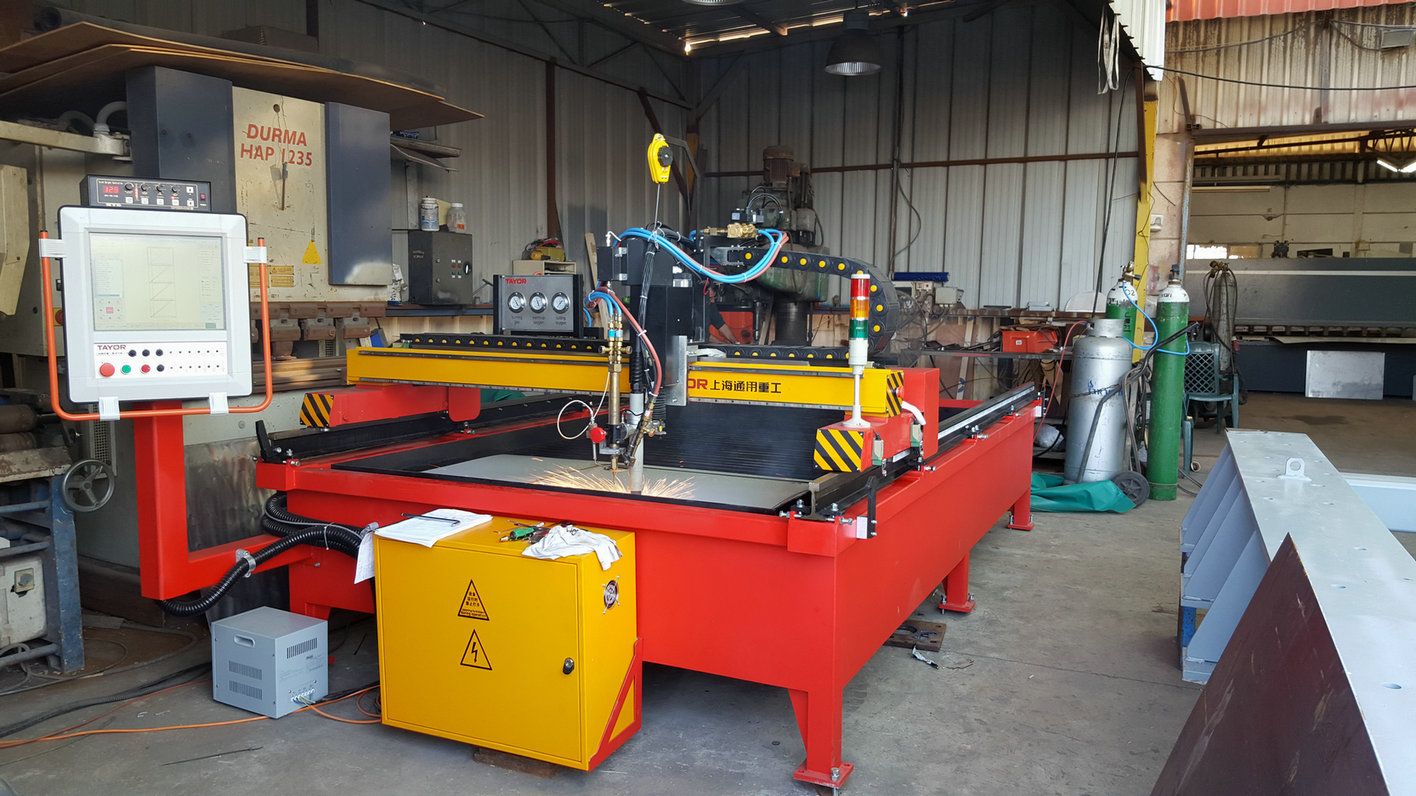

Table Type CNC Plasma and Flame Cutting TableThis is Mr. Alvin Wang from Shanghai Tayor Heavy Industry Group Co., Ltd.
We are professional manufacturer of CNC plasma and flame cutting machine.
Our CNC cutting machine have CNC table type cutting machine, CNC gantry type cutting machine and CNC pipe cutting machine.

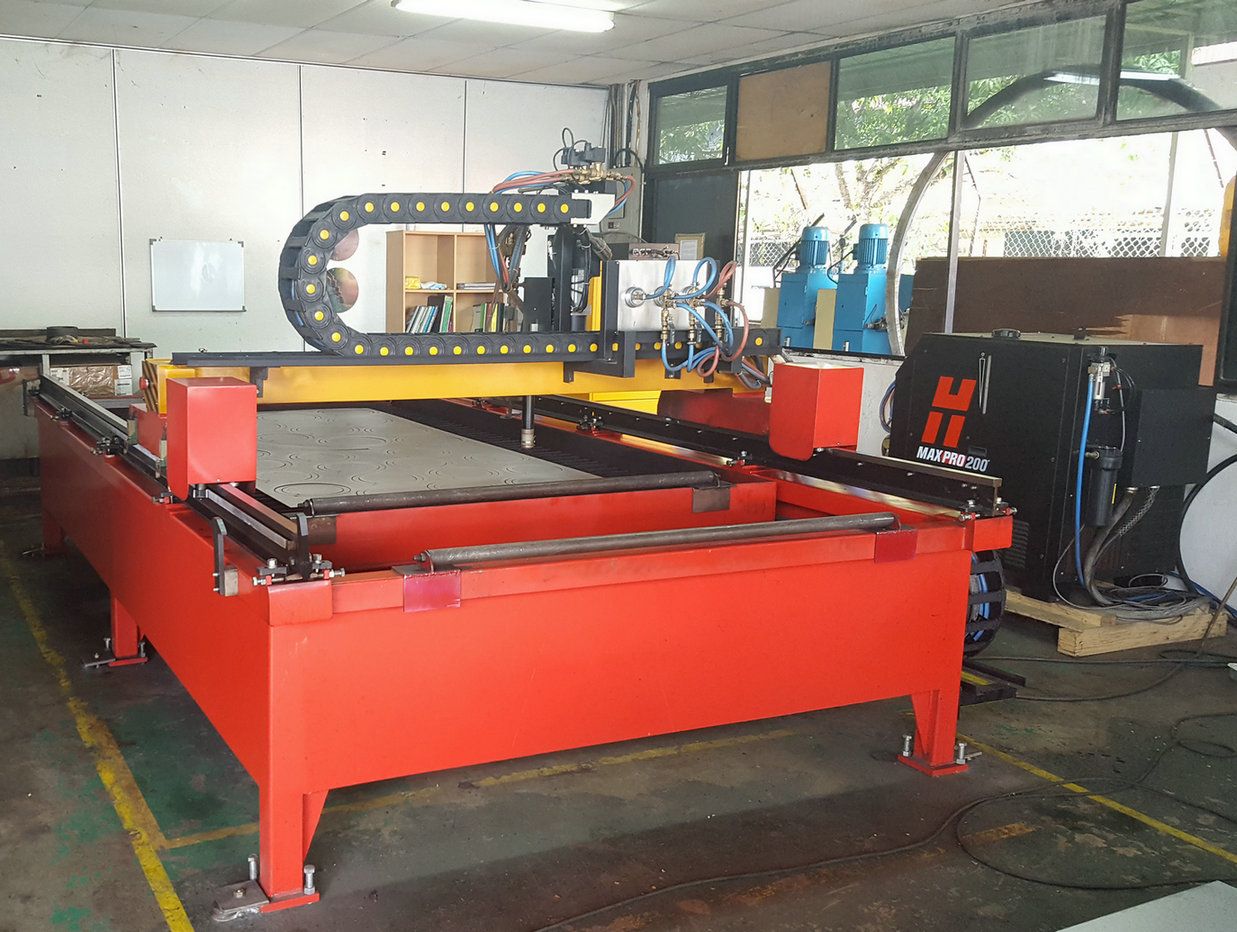

As for cutting table, we have two kinds, CNCTG and CNCTMG. CNCTG is one of our most popular products. It is economic, practical, good shape, easy-operated. CNCTMG is more accurate than CNCTG, it is an integral machine, which decides its accuracy is better than CNCTG.
Also we have CNCDG/CNCSG, a gantry type of CNC plate cutting machie and CNCXG pipe profile cutting machine.
All the above machines have plasma and oxy-fuel/flame options. Regarding to plasma power source, we have Hypertherm, Thermal Dynamics, Kjellberg, Tayor LGK, ESAB, etc, which including plain plasma power source, finefocus plasma power source, hifocus plasma power source, lase-like plasma power source.
CNC Plasma Cutting Machine, CNC Flame Cutting Machine, CNC Oxy-fuel Cutting Machine, CNC Plasma Cutter, CNC Flame Cutter, CNC Plate Cutting Machine, CNC Cutting Machine, CNC Pipe Cutting Machine, CNC Profile Cutting Machine, CNC Pipe Cutter, CNC Plate Cutter, Oxy-fuel Cutting Machine, Cutting Table, Gantry Type Cutting Machine, Micro EDGE PRO System Cutting Machine, etc.
As for detailed characteristics of each kind of cutting machine, please check our the below table.
| CNCTG series cutting table |
| Economical and Practical |
| Good finish surface, almost no secondary treatment |
| Simple to use |
| No need more foundation preparation, space saving |
| Split-type designing, Facilitate loading and transport |
| G code and M code recognizable |
| |
| CNCTMG series cutting table |
| High speed and precision |
| Compact and integral structure |
| Precision linear guide driving |
| Great finish surface, dispense with secondary treatment |
| Excellent running stability and higher precision cutting ability |
| G Code and M code recognizable |
| |

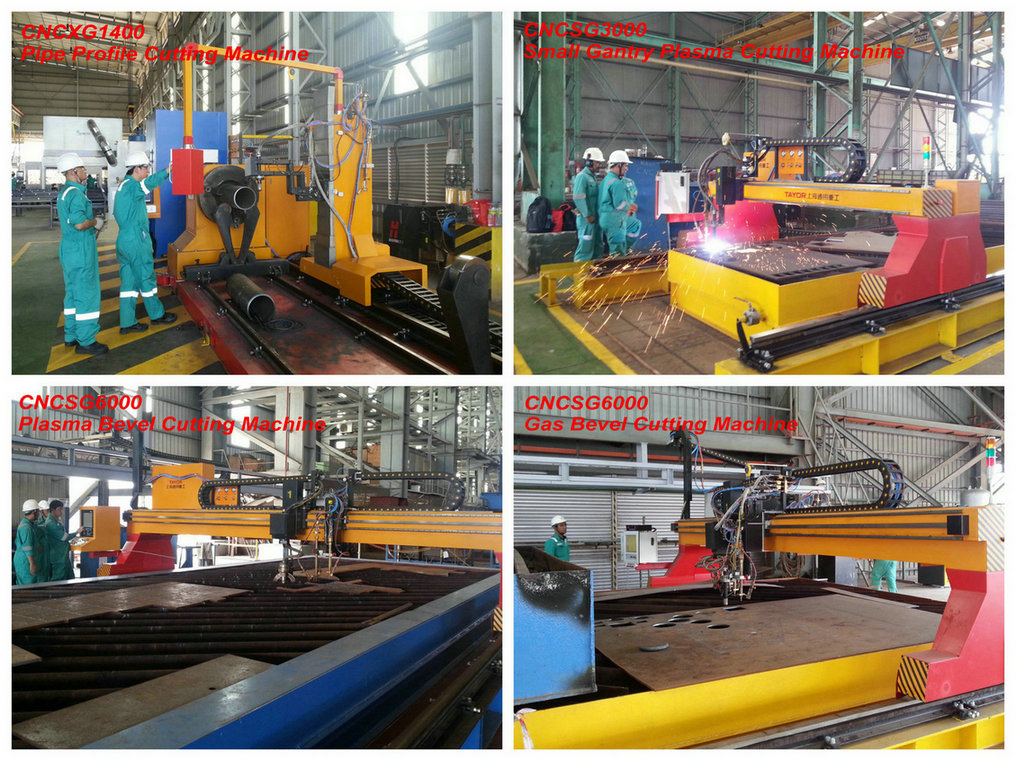

| CNCDG/CNCSG series gantry type cutting machine |
| Heavy-duty and Durable |
| CNC Oxy-fuel and plasma cutting torch |
| Beveling and strip cutting torch |
| Integrated auto-ignition with automatic height controller |
| Various optional items, expand machine capacity |
| G code and M code recognizable |
| |
| CNCXG series pipe cutting machine |
| Efficiency and flexible |
| 3D Cutting and beveling |
| Oxy-fuel and Plasma cutting module |
| Touch screen panel, convenient and fast data inputting |
| Compatible with Steel Structure design software |
| Maximum cutting pipe diameter 1500mm |

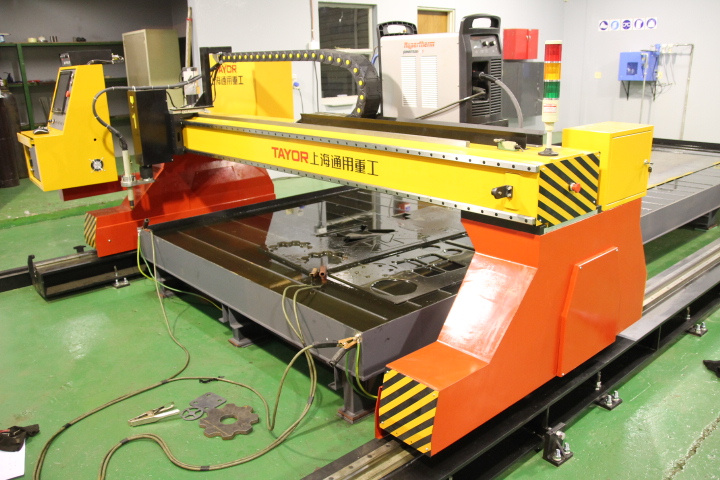

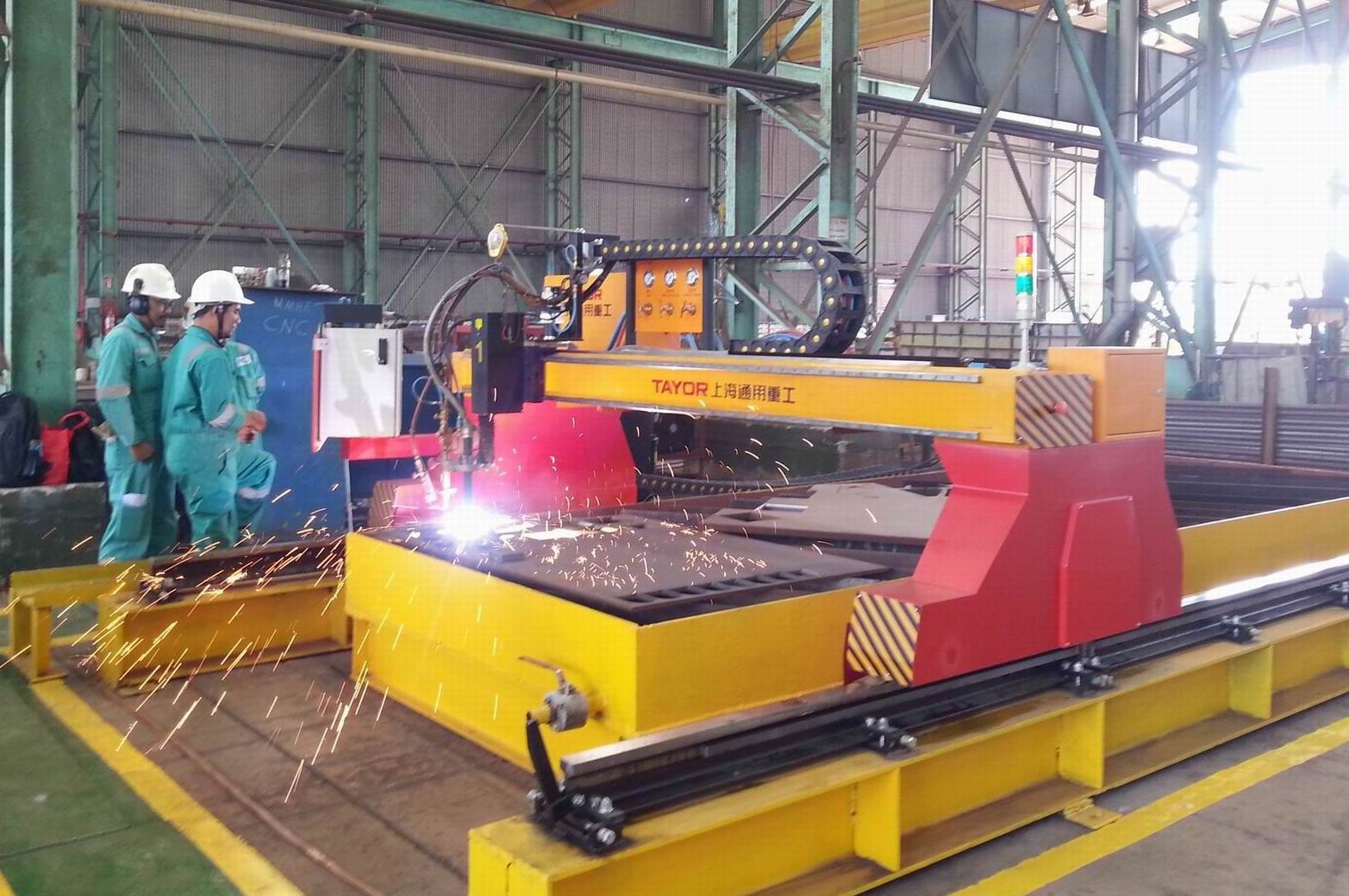

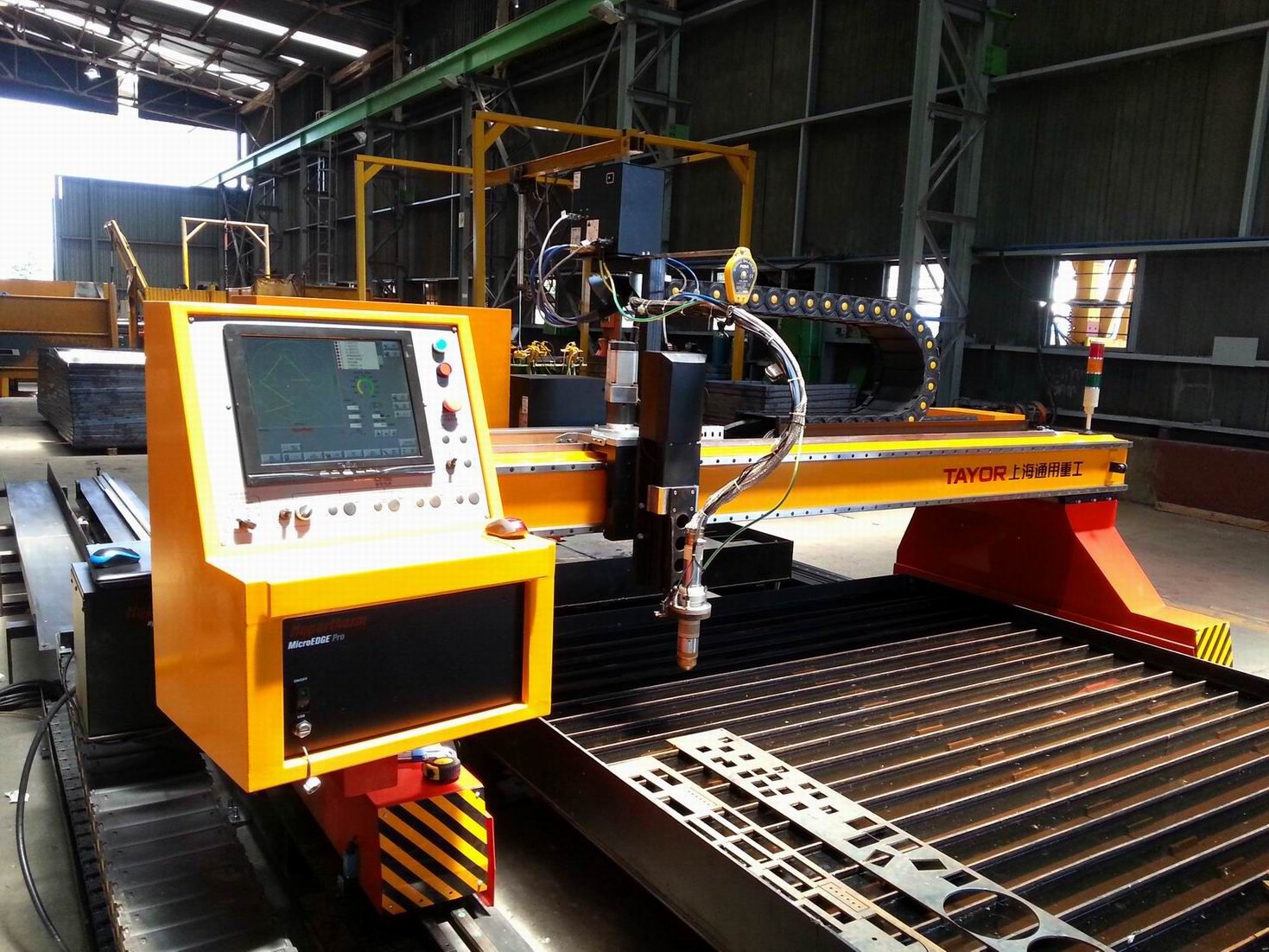

Gantry Type CNC Plasma And Flame Cutting Machine- Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.
- Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
- Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so that we can achieve the best cutting quality.
- Able to cut work piece with several torches at the same time, can improve cutting efficiency
- Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
- Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively
Optional items:- Powder marking device
- Straight line stripe cutting torch
- Straight line triple beveling torch
- Rotary triple flame curve beveling torch
- Rotary plasma curve beveling torch
- Blow and draft dust and fume collection system
- Water surface and underwater cutting table
| Cutting Technical Data |
| Model | CNCSG3000 | CNCSG3500 | CNCSG4000 | CNCSG5000 | CNCSG6000 | CNCSG7000 | CNCSG8000 |
| Effective Cutting Width (mm) | 2200 | 2700 | 3200 | 4200 | 5200 | 6200 | 7200 |
| Track Width (mm) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Effective Cutting Length (m) | 2m less than track length |
| Cutting Thickness(mm) | Flame:5-120(Max 300mm) Plasma:1-80 |
| Basic components |
| Cutting Mode | Plasma and Oxy-Fuel/Flame |
| Drive Mode | Servo motor, Dual-drive |
| Cutting Torch Number | Customization |
| Driving Motor | Panasonic/Yaskawa |
| CNC Controller | Hypertherm EDGE Pro/Micro EDGE Pro, LKNC-3200, SJTU-SK, Burny |
| Available Plasma Power | Hypertherm, Kjellberg, Thermal Dynamics, ESAB |
| Programming software | Fastcam, SmartNest, Hypertherm |
| Supply power voltage | 3×380V±10% 50HZ/according to user's local condition |
| Operation language | Multilanguage |
