T Shape Base Design Comprehensive Electric Operating Table Mt2000
| Price: |
US $ 2050/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MT2000 |
| Length: |
2000 ± 50mm |
| Width: |
555mm |
| Lowest And Highest Height Of Table Board: |
(750-1000) ± 50mm |
| Forward/Backward Tilt: |
≥32° |
| Left/Right Tilt: |
≥22° |
| Head Board Up/Down: |
≥90° |
| Waist Bridge Lift Up: |
≥130mm |
| Back Board Up: |
≥80° |
| Back Board Down: |
≥40° |
| Type: |
Operating Light |
Product Description

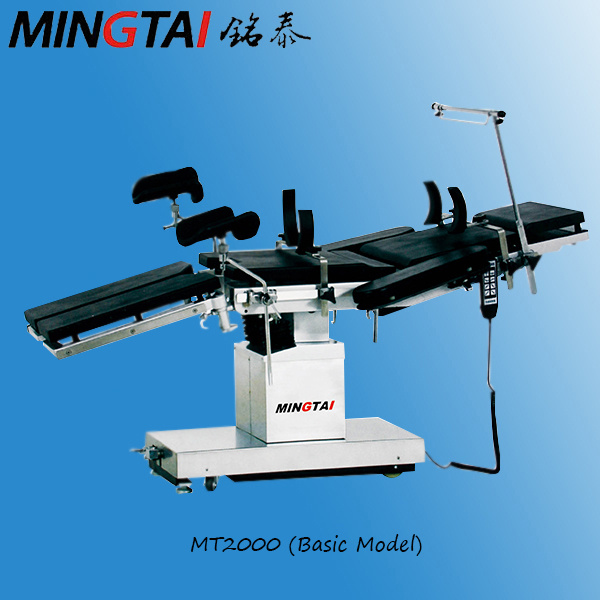

Mingtai-MT2000 (Basic model) comprehensive electric operating tableConfiguration:
4 motors comprehensive multifunction operating table
The surface of the table is good quality stainless steel, easy to clear
T shaped base design, supply much space for doctor
Improve production technology several times, to make sure the general product's advantage
Many patents are used to confirm the stability and advancement
Technology parameters:| Length | 2000mm ± 50mm |
| Width | 500mm ± 20mm |
| Chinese standard lowest and highest height | (750-1000) ± 50mm |
| Optional table width | 480-600mm |
| Optional table height of lifting up and down | 200-450mm |
| Optional lowest height | 600mm |
| Forward/backward tilt | ≥28°/≥18° |
| Left/right tilt | ≥18° |
| Head board up | ≥90° |
| Head board down | ≥90° |
| Waist bridge lift up | ≥130mm |
| Leg board down | ≥90° |
| Leg board evagination | ≥90° |
| Back board up | ≥80° |
| Back board down | ≥30° |
| Power | AC220V 50Hz |
| Input power | 500VA |
Main feature:
1. Electric motor driving system: used good quality 4 Chinese motor, low noise, smooth table motion, it is reliable and durable
2. Table board cover, column cover and accessories used stainless steel, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection resistance, easy to clean

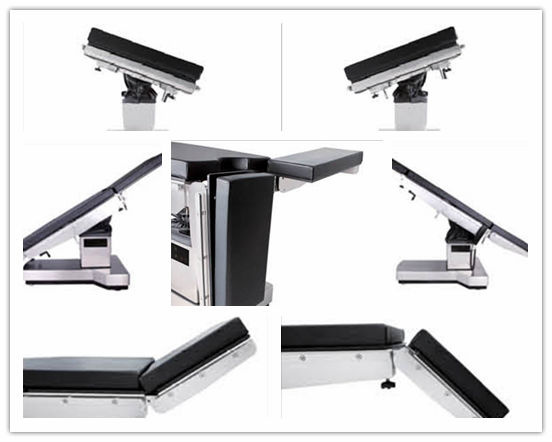

3. "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. 5 sections board design: head board, back board, waist bridge, hip board and leg board.
4. Column part with patent design, Germany technology design, which has 4 times safety factor. Square column, 8 fasteners to make sure the stability.
5. Braking system with patent design, 4 point locking function, when locking, operating table will not move, to make sure it stability and safety during surgery
6. Leg board can be up/down move, evagination and removable, convenient for urology surgery

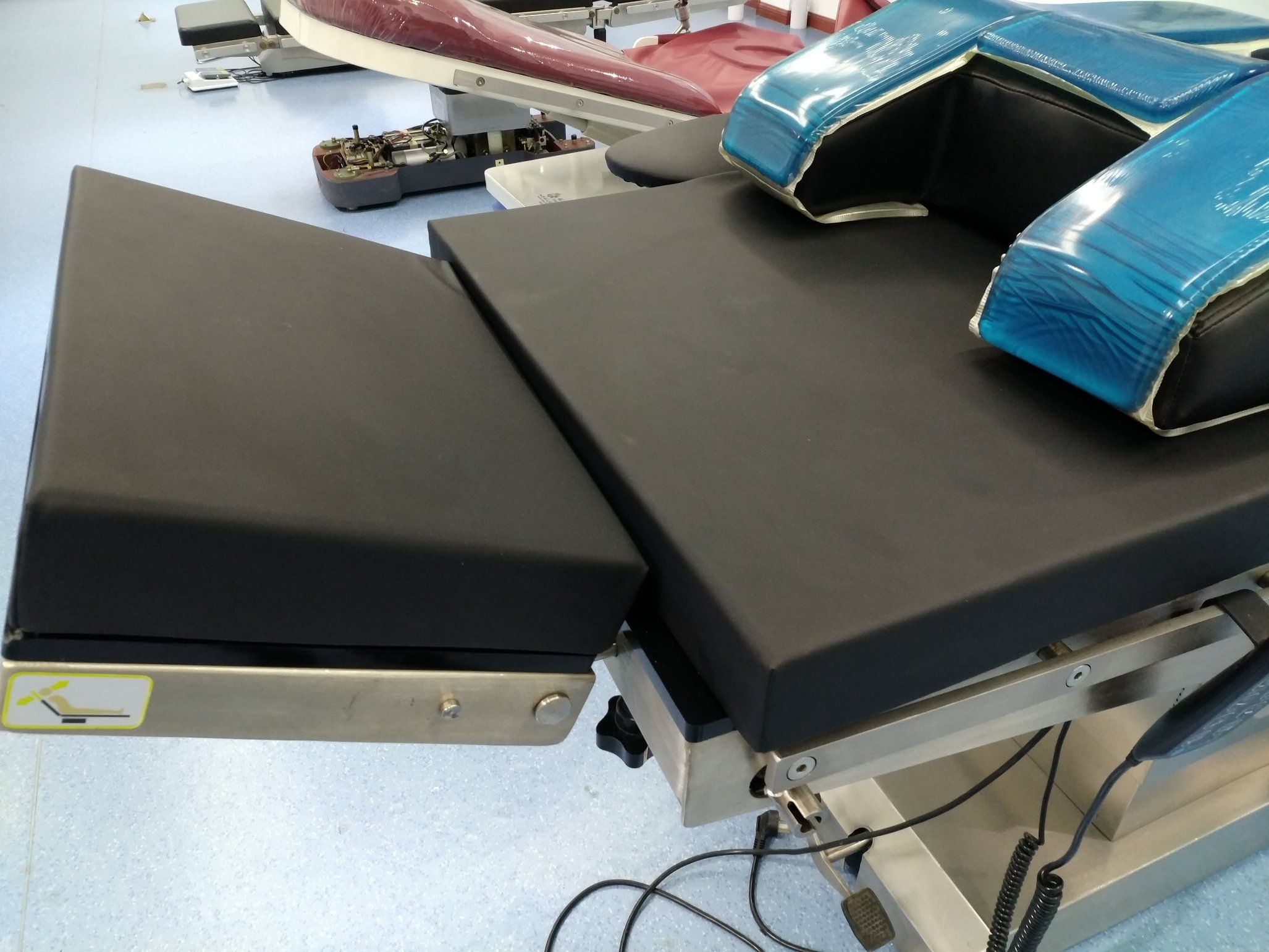

7. Mattress: memory sponge mattress preventing acne, effectively relieve patients pressure point, prevent postoperative bedsore occurred; mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
8. Operating table base with move or fix function, move flexible, fix reliable, different function accessories can be provided for different surgery needed
9. Standard accessories: shoulder support*1 pair, waist support * 1 pair, arm support * 1 pair, leg support * 1 pair, hand controller * 1 pc, anesthesia screen frame * 1 pc.Product Details:
MINGTAI--Expert of Medical Devices for OR&ICU
Mingtai, as a well-known medical equipment manufacturer of China, since its establishment, continues to develop, enterprising constantly, with better quality, better service, make it easy for public enjoy the health future of medical science.
Mingtai Medical Group was founded in 2 0 0 0, Is a global leading supplier of OR & ICU Products. Mingtai Medical adhere the technological innovation to create value for customers. She has a close strategic cooperative relations with the famous Germany medical company brand "Draeger"(Germany Draeger Medical GmbH) Wellknown Hydraulic System "HOERBIGER"(Germany HOERBIGER Automation Technology GmbH), Germany medical suspension system supplier "Ondal"(Germany Ondal Medical Technology GmbH).
Mingtai won the trust and cooperation of global customers by the increasing innovation ability, prominent flexible customization capabilities and the gradually perfected delivery ability.
All the products passed I S O 13485, I S O 9001, CE Certificate & SFDA. The company have a number of invention patents. Utility model patents and design patents. The Mingtai medical have the most complete end-product lines of industry, integration solutions and International brands MINGTAI MEDICAL series Surgical lamp, Operation table, Medical pendant, Electric care nursing bed. Flexibility to meet different global distributors and end customers' different needs, As well as the pursuit of rapid innovation.
In 2012, the company won the financial and technical support from UK WINDER WILSON medicine holding company. In many countries and regions in the world and the Chinese market to establish a perfect sales and service network, with scientific, professional service system quickly and timely to meet the diverse needs of customers, become their most valuable partners. In more than 88 countries and regions in the world, there are more than 8000 medical establishments bring health life to public by mingtai medical products.
Quality is the life of the product, the service is the continuation of life, from the first time shaking your hands, you will feel the most sincere service of mingtai person. All Mingtai colleagues will return your trust by the most enthusiastic service!
