Surgical Table with Standard Accessories for Multi Surgery
| Price: |
US $ 3000-3700/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
MT2100 |
| Commodity: |
Electric Operating Table Mt2100 |
| Size: |
L:2100±50mm / W:555mm |
| Certificate: |
Ce,ISO9001,ISO13485 |
| Material: |
SUS#304 Stainless Steel |
| Motor: |
Danish Linak Brand |
| Height Adjustment: |
(750-1000) ± 50mm |
| Table Longitudinal Scope: |
400±50mm |
| Leg Evagination: |
≥90° |
| Back Board Up: |
≥80° |
| Back Board Down: |
≥40° |
| Type: |
Operating Table |
| Certification: |
ISO13485 |
Product Description
Surgical table with standard accessories for multi surgery

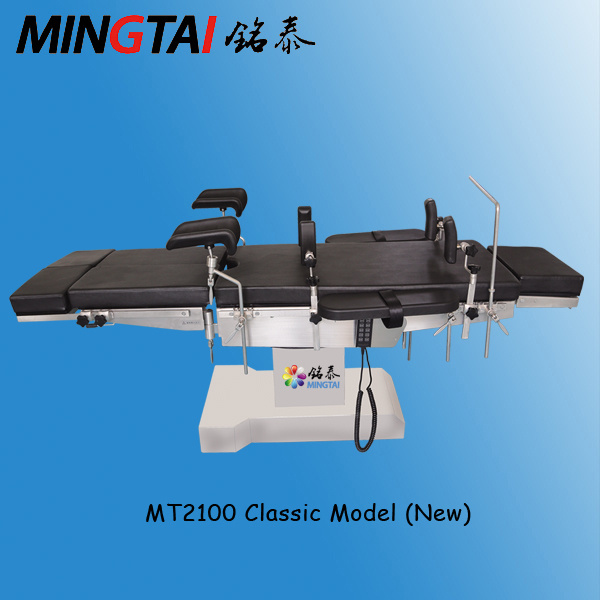

Operating Table MT2100 (Classic Model)Main Configuration:1.304 stainless steel
2. Six set motor, double Linak motors rise the back board, LINAK linear motor from Denmark
3.2 motors rise the back board, "T" shaped base design
4. Double control pattern, built-in emergency power
5. Electrical brake and electrical kideny elevator(optional)Main feature:1.
Electric motor driving system: Imported the Danish LINAK brand motor, low noise, smooth table motion, lifting and rising, forward and backward, left ward and rightward and the back plane are all controlled by system, manual head plate and leg plate, easy and convenient for operate.
2.
6 electric motor, 2 of them rise the flanks back board. High performance charged battery can work ≥ 50 times to make sure the operation table can work without power source.
3.
The whole bed is made of high quality SUS304# stainless steel, super thick≥ 4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation
4.
Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. Six sections board design: Head board, back board, built-in kidney elevator, leg board and pedal board.
5.
Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
6.
Mattress: The memory mattress, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred; Mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
7.
With non-slip floor side rail safety design to prevent the attachment falling, in case of injury
8.
Longitudinal movement function: Imported slideway system makes it easier for longitudinal movement, the max longitudinal scope is 350mm, and it also can guarantee enough space under the table bed for C-arm's X-ray transillumination and other special surgery.
| Parameters | MT2100 |
| Length | 2100±50mm |
| Width | 555mm |
| Lowest and highest table height | (750-1000) ± 50mm |
| The lowest custom height | 600mm |
| Custom table height of up and down | between 200-450mm |
| forward and backward tilt | ≥32° |
| Table longitudinal scope | 400±50mm |
| Left/right tilt | ≥22° |
| Leg board down | ≥90° |
| Leg evagination | ≥90° |
| Back board up | ≥80° |
| Back board down | ≥40° |
| Head board up/down | ≥90° |
| Kidney elevator | ≥130mm |
| Power | AC 220V 50Hz |
| Input power | 500VA |
MINGTAI--Expert of Medical Devices for OR&ICU
Mingtai, as a well-known medical equipment manufacturer of China, since its establishment, continues to develop, enterprising constantly, with better quality, better service, make it easy for public enjoy the health future of medical science.
Mingtai Medical Group was founded in 2 0 0 0, Is a global leading supplier of OR & ICU Products. Mingtai Medical adhere the technological innovation to create value for customers. She has a close strategic cooperative relations with the famous Germany medical company brand "Draeger"(Germany Draeger Medical GmbH) Wellknown Hydraulic System "HOERBIGER"(Germany HOERBIGER Automation Technology GmbH), Germany medical suspension system supplier "Ondal"(Germany Ondal Medical Technology GmbH).
Mingtai won the trust and cooperation of global customers by the increasing innovation ability, prominent flexible customization capabilities and the gradually perfected delivery ability.
All the products passed I S O 13485, I S O 9001, CE Certificate & SFDA. The company have a number of invention patents. Utility model patents and design patents. The Mingtai medical have the most complete end-product lines of industry, integration solutions and International brands MINGTAI MEDICAL series Surgical lamp, Operation table, Medical pendant, Electric care nursing bed. Flexibility to meet different global distributors and end customers' different needs, As well as the pursuit of rapid innovation.
In 2012, the company won the financial and technical support from UK WINDER WILSON medicine holding company. In many countries and regions in the world and the Chinese market to establish a perfect sales and service network, with scientific, professional service system quickly and timely to meet the diverse needs of customers, become their most valuable partners. In more than 88 countries and regions in the world, there are more than 8000 medical establishments bring health life to public by mingtai medical products.
Quality is the life of the product, the service is the continuation of life, from the first time shaking your hands, you will feel the most sincere service of mingtai person. All Mingtai colleagues will return your trust by the most enthusiastic service!
