| Prod Model: |
MSLET08 |
| Packaging Volume: |
150cm×78cm×103cm |
| Tabletop Dimension: |
2100mm×480mm |
| Adjustable Height Range: |
750~1000mm |
| Reversed Trendelenburg: |
≥25° |
| Trendelenburg: |
≥25° |
| Foot Section: |
Detachable |
| Net Weight: |
261kg |
| Gross Weight: |
325kg |
| Optional Pad: |
Polyurethane Pad/Sponge Pad |
| Type: |
Operating Table |
| Kind: |
Dental |
| Certification: |
CE |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
Product Description

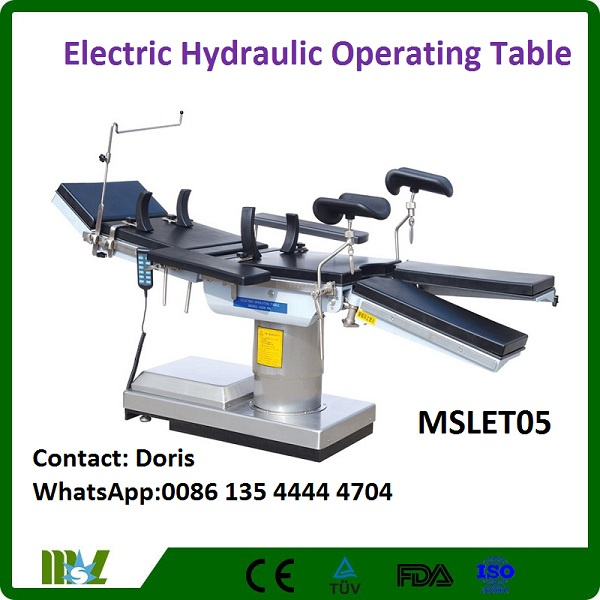

Electric Hydraulic Operating Table-Model No.:MSLET05
This Electric Operating Table MSLET05 is developed independently by our company with innovative and advanced technologies. The table is a comprehensive one with high-quality and multi-purposes,which takes the leading position in the domestic market. The table can be used in almost all kinds of operations by means of special design. The bedtop can be moved vertically and rotated horizontally. The tableboard is made from high-intensity synthesis panel. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation. The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance.
Main Specification of MSLET05
Tabletop dimension, Overall length: 2040mm, width: 500 mm
Tabletop height : Min Height: 580 mm, Max Height: 930mm, Adjust≥ 350mm
Technical parameter of MSLET05
Reversed Trendelenburg ≥ 20°, Trendelenburg≥ 15°
Lateral tilt ≥15°
Head Section: Up≥45°, Down ≥90°
Back Section: Up≥85°, Down ≥55°
Leg Section: Down≥90°
Leg section opened ≥90°
Kidney section rise ≥125mm
Backward and Forward Movements ≥250mm
Horizonal ratation of tabletop ≥180°
Electric hydraulic pump and electromagnetic valve are import parts
----------------------------------------------------------------------------------------------------------------------
Electric Operating Table-Model No.: MSLET06
This bed is suitable for surgical procedures of the head, neck, thorax and abdomen, perineum and extremities as well as for gynaeclolgical, oto-rhino-laryngological and orthopaedics operation., The table top, made of double-decker plastic plate, X-ray examination may be carried out on it while the operation. It's raising, lowing, lateral tilt,reversed trendelenburg and trendelenburg movement,back section bending are all controlled by electrically. It's adjustment easy, performance is reliable.
Main specification of MSLET06
Tabletop dimension
Overall length: 2100mm, width: 480 mm
Adjustable height range: 750~1000mm
Adjust ≥250mm ,Can be up-down, fix freely
Technical parameter of MSLET06
Reversed Trendelenburg ≥25° , Trendelenburg≥25°
Lateral tilt:≥15°
Head Section: Up≥45°, Down≥90°
Back Section: Up≥45°, Down≥15°
Leg Section Down≥90°
Leg section opened ≥90°Detachable
Foot Section can be 90 degree to the leg section and it's detachable.
Kidney section rise ≥100mm
----------------------------------------------------------------------------------------------------------------------
Multi-purpose Operating Table (Head controlled)
Model No.:MSLET07
The table is designed for surgical procedures of the head, neck, thorax and abdomen, and estremities as well as for gynaecological, oto-rhino-laryngological and orthopaedics operations. It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled on the head.
Main specification of MSLET07
Tabletop dimension
Overall length: 2040mm width: 480 mm
Adjustable height range: 800~1040mm Adjust ≥240mm ,Can be up-down, fix freely
Technical parameter of MSLET07
Reversed Trendelenburg ≥50°, Trendelenburg ≥30°
Lateral tilt ≥20°
Head Section: Up ≥45° , Down ≥90°
Back Section: Up ≥80° , Down ≥8°
Leg Section: Down≥90°
Kidney section rise ≥120mm
Foot Section and leg section are on the same horizontal line or on the vertical plane.
----------------------------------------------------------------------------------------------------------------------
Multi-purpose Operating Table (Side controlled)
Model No.: MSLET08
This table is suitable for surgical procedures of the head, neck, thorax, abdomen, abdomen, perineum and extremities as well as for gynaecological, oto-rhino-laryngological and orthopaedics operation. It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both side. It has been awarded the first prize in China. It has won the "High Quality Product" certificate of the State pharmaceutical Administration Deparment.
Main specification of MSLET08
Tabletop dimension
Overall length: 2100mm, width: 480 mm
Adjustable height range: 800~1040mm Adjust ≥240mm ,Can be up-down, fix freely
Technical parameter of MSLET08
Reversed Trendelenburg ≥30° , Trendelenburg ≥20°
Lateral tilt ≥18°
Head Section: Up ≥45° , Down ≥90°
Back Section : Up ≥75°, Down ≥18°
Leg Section Down≥90°
Kidney section rise ≥120mm
----------------------------------------------------------------------------------------------------------------------
Multi-purpose Operating Table (Side controlled)
Model No.: MSLET09
This table is suitable for surgical procedures of the head, neck, thorax, abdomen, abdomen, perineum and extremities as well as for gynaecological, oto-rhino-laryngological and orthopaedics operation. It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both side. It has been awarded the first prize in China. It has won the "High Quality Product" certificate of the State pharmaceutical Administration Department.
Main specification of MSLET09
Tabletop dimension
Overall length: 2100mm width: 480 mm
Adjustable height range:710~910mm Adjust≥200mm ,Can be up-down, fix freely
Technical parameter of MSLET09
Reversed Trendelenburg≥30°, Trendelenburg ≥20°
Lateral tilt ≥18°
Back Section Up≥75° , Down≥18°
Head Section Up ≥45°,Down≥90°,detachable
Leg Section Down≥90 Open≥90°,detachable
Kidney section rise ≥120mm
----------------------------------------------------------------------------------------------------------------------
Ordinary Operating Table-Model No.: MSLET10
This table is suitable for surgical procedures of the head, neck, thorax and abdomen, and extremities as well as for gynaecological, oto-rhino-laryn-gological and orthopaedics operations. It is characterized by versatility,easy operation, good and cheap. Chassis and inside & outside cover of model MSLET10 are stainless steel.
Main specification of MSLET10
Tabletop dimension
Overall length:2000mm, width: 480 mm
Adjustable height range: 750~1000mm, Adjust≥250mm
Technical parameter of MSLET10
Head Section: Up≥45° , Down ≥90°
Back Section: Up≥45° , Down ≥20°
Leg Section Down≥90°
Kidney section rise≥100mm
