| Price: | US $ 38-40/Roll |
|---|---|
| Min Order: | 10/Roll |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |

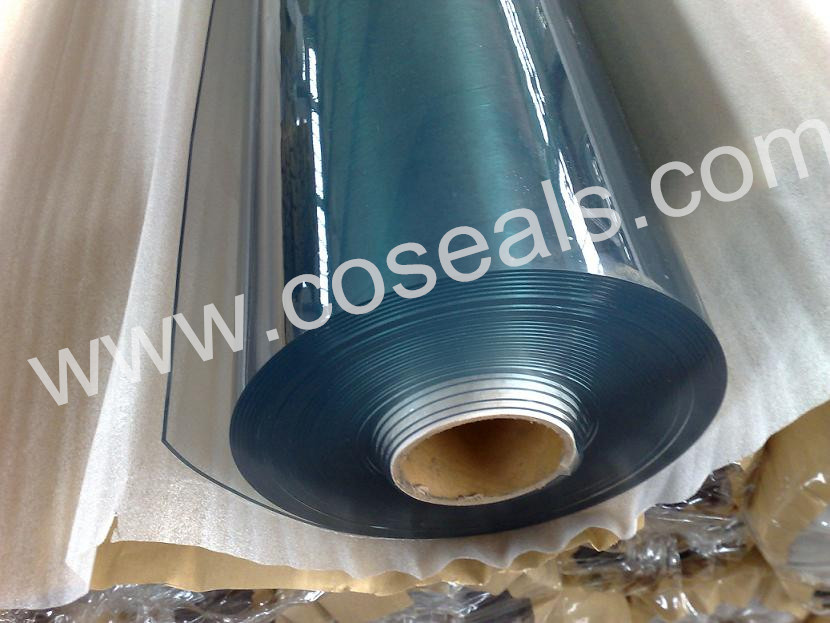

| Prod Model: | Super Clear Soft PVC Table Vertical |
|---|---|
| Thickness: | 0.2mm-7mm |
| Length: | 10m to 50m |
| Width: | 100mm to 2000mm |
| Color: | as Require |
| Usage Time: | More Than 2 Years |
| Temperature: | -50 Degree to + 50 Degree |
| Stick: | No |
| Bubble: | No |
| Certificate: | RoHS,SGS,etc |
| Characteristic: | Flexibility,Clarity,Durability |
| Material: | PVC |
Specifications of Soft PVC Sheet | ||||
| Roll Sizes | ||||
| Thickness | 0.5mm to 8.0mm | |||
| Width | 100mm to 1850mm | |||
| Length | 10m to 100m | |||
| Material Description | ||||
| Finish | Smooth or Double Ribbed | |||
| Colors | Clear,Blue ,Yellow,Dark Bronze, Green, UV Red, Orange | |||
| Physical Properties | ||||
| Property | ASTM | Unit | Result | |
| Light transmittance | ASTM D1003 | % | 85 | |
| Shore A hardness | EN ISO868 | Sh A | 80 | |
| Tearing resistance | DIN 53515 | N/mm | 50 | |
| Tensile stength at break | EN ISO 527 ASTM D 638 | N/mm² | 16 | |
| Elongation at break | % | 340 | ||
| Residual elong(after break) | % | 68 | ||
| Thermal conductivity | ASTM C177 | W/m.k | 0.16 | |
| Cold bend brittle temp | ISO 8570 | ºC | -35 | |
| Min. usage temp | EN 1876 | ºC | -15 | |
| Max. usage temp | EN ISO 306 | ºC | 150 | |
| Vicat softening temp | ºC | |||
| Specific heat capacity | ISO 11357 | kj/kg.k | 1.6 | |
| Sound reduction | DIN52210 | Db | >35 | |
| Fire retardance | NF P 92-507 AS/NZS3837 DIN 4102 | classe | Grp4 B2 | |
| UV/IRfilter | EN 1598 | Filter | .. | |
| UV resistance | ISO 4892 | .. | yes | |
| Charface buildup | IEC 61087 | Sparks | yes | |
| Surface resistivity | IEC60093 | Ω/ | 4.10¹³ | |
| Water absorption | EN ISO 62 | % | .0.2 | |
| Anti-insect | … | … | yes | |
| Density | ASTM D 792 | g/m3 | 1.25 | |
