| Prod Model: |
TF-1500SQ |
| Refrigerant: |
R404A |
| Compressor: |
Embraco |
| Temp: |
-18'c to -22'c |
| Climate: |
St |
| Base Material: |
304 Stainless Steel |
| Glass: |
3 Layers Heating Glass |
| Capacity: |
201-250L |
| Door Number: |
Single Door |
| Type: |
Chest/Deep Freezer |
| Door Type: |
Sliding Door |
| Power Source: |
Electricity |
| Temperature Control: |
Computer Thermostat |
| Temperature Type: |
Single-temperature |
| Defrost Type: |
Auto Defrost |
| Function: |
Freezing |
| Certification: |
ETL |
Product Description

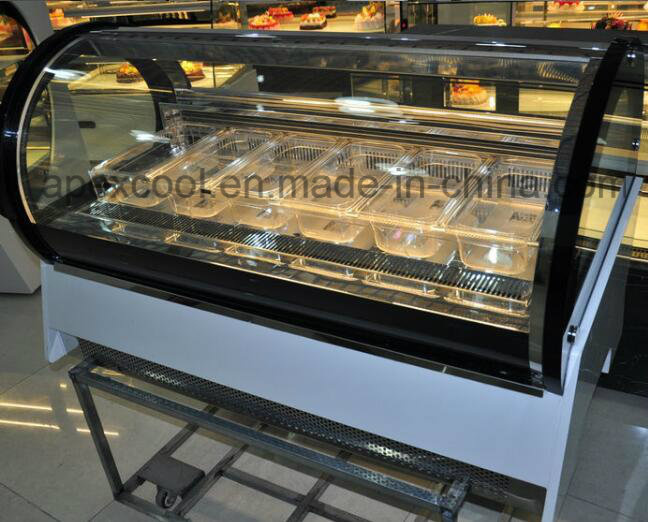

Table top design ice cream gelato display showcase freezer
1. Working Temperature: -16~-22 °C (Customized to -29 °C)
2. Certification: CE, ISO
3. Outside : Artificial Marble , Internal plate: 304#
4. Compressor: ASPERA or Danfoss (Customized Tecumseh)
5. Refrigerant: R404a (environmental friendly)
6. the gelato case has been tested at +35°C in 70% relative humidity
7. Automatically and quickly defrost by hot gas-Low noise level
8.The internal structural in 100% stainless steel 304 guarantees structural strength and hygiene.
9.Artificial Marble or S/S 304 can be chose for outside structural.
10.Designed to guarantee excellent performances & low consumption with powered.
11.Ventilated cooling system with fan assisted cooling for even temperature on all place.
12.Tempered curved glass with defogging heating wires.
13.Easy setting by digital temperature control board.
14.Available in the 6 flavors with built-in or remote air and mixed refrigerated condensing unit .
15.CE certification for Europe and 3C certification in China .
Specifications
| Model | Name | Dimension(mm) | Capacity (L) | trays | Power(W) | Weight(KG) |
| TF-1200SQ | Ice cream showcase |
1220*535*810 | 190 | 6 | 487 | 125KG |
| TF-1500SQ | 1650* 535*810 | 240 | 8 | 537 | 150KG |
Options for your choice
1.you can choose the lamp /LED lights
2.the base Artificial Marble color
3.can paste your logo sticker
Remarks and conditions:
1) Price Term: FOB China, base on 220V/50,60Hz, 110V60Hz with extral cost.
2) MOQ: 1pcs
3) Payment: 30% T/T before production and balance before loading;
4) Delivery time: around 35 days after payment and artwork confirmation;
5) Warranty: 3 years for compressor and 1 year for rest parts, 1% free spare parts against order qty.
6) Quoation validity: 35 days after issue
