Price: | US $ 1/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union,Paypal |
Prod Model: | yunyan injection mold |
---|---|
Process Method: | CNC Machining |
Leadtime: | 20days-40days Depends on The Quantity |
3D Formats: | Igs/Step/Dwg/Dxf/Parasolid |
Certificate: | ISO9001 |
Material Details: | P20,718,Nak80, S316, AISI H13 |
Shaping Mode: | Injection Mould |
Process Combination Type: | Compound Die |
Application: | Hardware |
Installation: | Fixed |

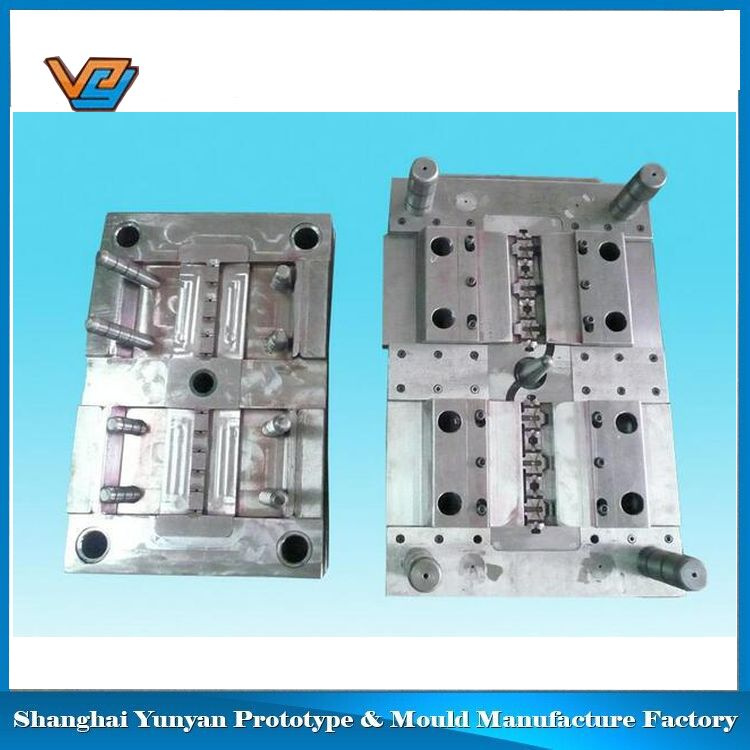

Specifications of injection mould:
Product name: | Injection mould |
Delivery time: | Delivery 20days -30days depends on the Parts |
MOQ: | 1 set |
Precision: | 0.004-0.01mm |
Injection part colors: | Can be finished as any colors as your requirements |
Port: | Shanghai |
Injection Materials: | ABS, PC, PP, PVC, POM, PMMA, PS, PE, PET, Rubber, Silicone, PA, PBT, PEI etc. |
Cavity: | Single cavity, multi-cavities of requested |
Injection machines: | 380T-1800T |
Tooling life: | Depends on request |
Designing softwares: | UGS/MASTERCAM/PROE/CATIA |

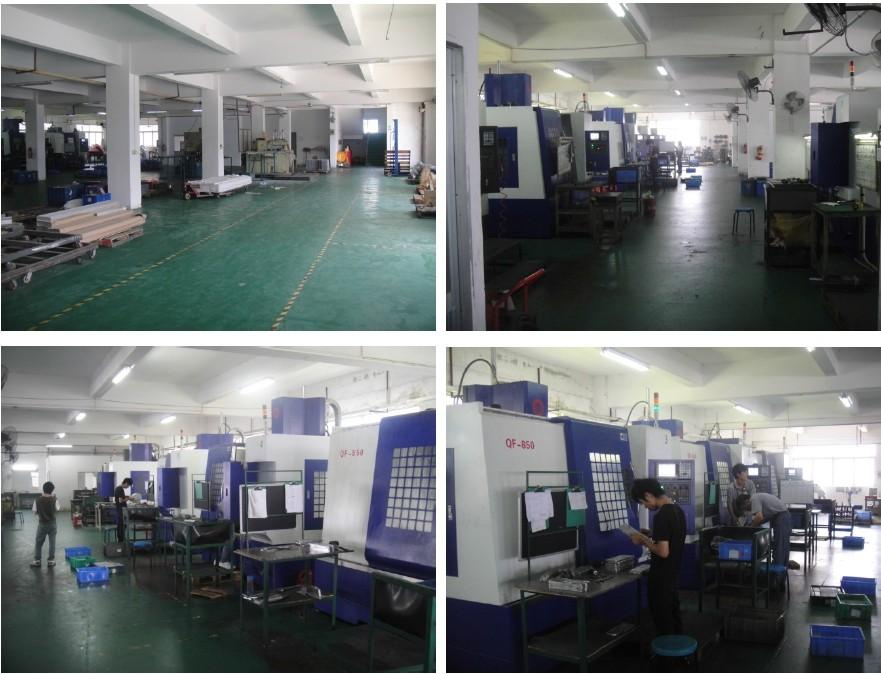

Workshop and Facilities:

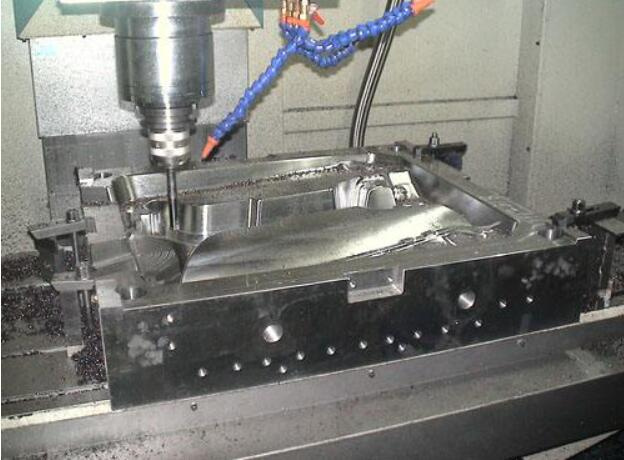

Process machining;
Products pictures;
Packing&Shipping: Carton box package or according to your special requirements;
FAQ:
1. Q: what is the proceesing for the quote ?
A: We can quote from your 3d formats like IGS,STP,PARASOLID etc and 2D drawings as well; quote the price to clients after got the 2d or 3d drawings within 2 hours;
2. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
3. Q: what is the softwares will you use for the proceeding ?
A: We make the 3D programme with Pro-Engineer,UGS,SOLIDWORKS,MASTERCAM etc ;
4. Q: what is the type of machines for manufacturing please ?
A: Manufatured from CNC Machining,Laser cutting , stamping ,injection as well as the parts files different ;
5. Q: Do you do the surface treatments please ?
A:yes, sure . we do the surface treatments ,for instance ; chromated, powder coating,Anodizing, laser etching as well as painting ;
6. Q: What is the quality Control before shipping?
A: We have QC department for the quality control before shipping;
7. Q: How long can it be delivery ?
A: Delivery from 7-50days that depends on the parts ;
Certifications:
