Price: | US $ 500-1000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Prod Model: | color-60 |
---|---|
Weight: | 35kg |
Power Supply: | AC-220V/50Hz |
Accuracy: | 0.001g/cm3 |
Application: | School, Hospital, Lab |
Structure: | Desktop |
Material: | Steel |
Power: | 18-40W |
Wave Length: | 365nm |
Warranty: | 1 Year |

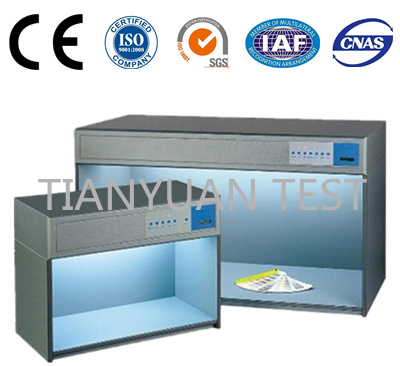

Equipment name: Color-60 Color assessment cabinet with 8 light sources
Optional accessories: Light diffusion plate 45 degrees standard box stands spare lamp
Application:
Colors appear differently under different light sources. To avoid/reduce the error when performing color assessment, we can use color assessment cabinet simulate different light sources to obtain and objective assessment of color and color difference, anytime, anywhere.
The color assessment cabinet can be applied to the industries that need to perform color difference test as follows:
as the premiere designer and manufacturer of color viewing and lighting products for the graphic arts, photographic, textile, dyeing, packaging, printing, leather, inks, knitwear, plastic, automotive and ceramics industries.
Equipment characteristics:
According to the use time of each light source number, name, and switch
Light source automatic switch, has the same color spectrum function
Without preheating, not flashing, ensures fast and reliable evaluation of color
Small energy consumption, no fever (no heat), high luminous efficiency
Commonly used configuration of a complete set of Britain, the United States standard light source
Contains the standard light source and A U30 light source
Name of light source can be changed, it is more convenient to replace the light source
Technical parameter:
D65 International standard artificial sunlight | color temperature:6500K | power:20W |
TL84 Europe, Japan, China shop Light source | color temperature:4000K | power:18W |
CWF American cool white fluorescent | color temperature:4150K | power:18W |
Family hotel lamp, colorimetric reference source | color temperature:2700K | power:40W |
(Ultra-Violet) | wavelength:365nm | power:20W |
U30 American warm white fluorescent | color temperature:3000K | power:20W(30U) |
A American kitchen window to shoot the light, the colorimetric reference light | color temperature:2856K | power:60W |
TL83 European standard warm white store light source | color temperature:3000K | power:18W |
Dimension(WxDxH) | 710x530x570 mm | |
Weight | 35Kg |
