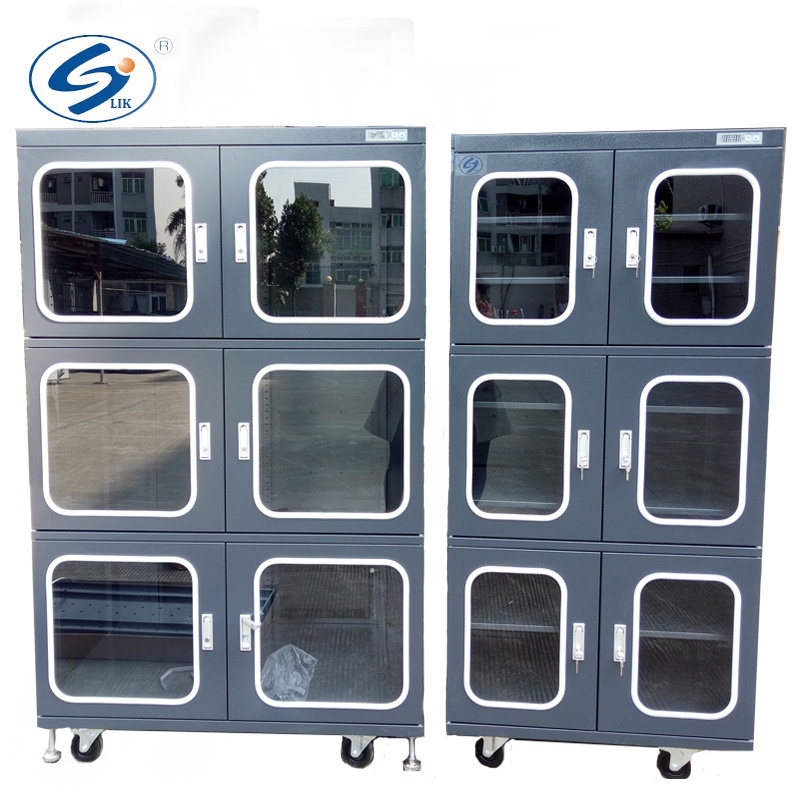

Stainless Steel Glass Door Display Dampproof Cabinet for Hospital Drugs
| Price: |
US $ 599-2099/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
CTA(BC)1436CD |
| Type: |
Nitrogen Dry Cabinet |
| Voltage: |
110V/220V |
| Material: |
Cold Rolled Steel |
| Color: |
Ivory/Black |
| Display: |
Digital |
| Humidity Range: |
1%-60%Rh |
| Deviation: |
Humidity ±2%Rh |
| Capacity: |
See Technial Parameters |
| Size: |
See Technial Parameters |
| Servcie: |
OEM, ODM Welcome |
Product Description
Stainless Steel Glass Door Display Dampproof DCabinet for Hospital DrugsApplication(Stainless Steel Glass Door Display Dampproof DCabinet for Hospital Drugs)
The dry cabinet is a dehumidifying platform developed from military hi-technology, which can achieve many kinds of humidity levels for precision parts and electronic devices. It can be used for store in sort with precision parts, top grade camera lens, photographic accessories, Optics Instruments, electron devices, IDE(integrated device electronics), SMT, CMOS chips, etc...So that it can prevent all the said from mildewing, foggy, oxygenation corrosion, maturing to break, invalidation of electron devices, etc...To improve the reliability and increase service life of storages in the cabinets, micro-computers are chosen for enhancing maintainability and integrity of the parts, so that all the precision and electronic parts can be in best condition.Product Description 1. Clearndicated, Convenient display Temperture(left/red) Humidity(right/green);
2. Door frame covered with magnet rubber keeps reliable air-tightness;
3. Tempered glass window. Lock-key handle;
4. Humidity controller maintains atable constant humidity;
5. Power disribution lamp and in operation lamp;
6. Sturdy and durable shelf (tolerance: 100kg/per)is movable up and down;
7. Most economical, Running cost is electricity alone;
8. Operation in normal temperature, noiseless, tremor free, long life;
9. Special desiccant is DRY-UNIT is semi-permanent.Features:1. CTA20%-60%RH adjustable, medium humidity level series.
2. CTB10%-20%RH, Low humidity full atuomatic series.
3. CTC1%-10%RH, ultra-low humidity full automatic series.
4. dehumidity full auomatically with manual operation, it can keep long-term storage. 5. Providing the corduroy that save the most energy, the ability to dehumidify is great, no dust, no drip, no noise, it is real low-loss design.

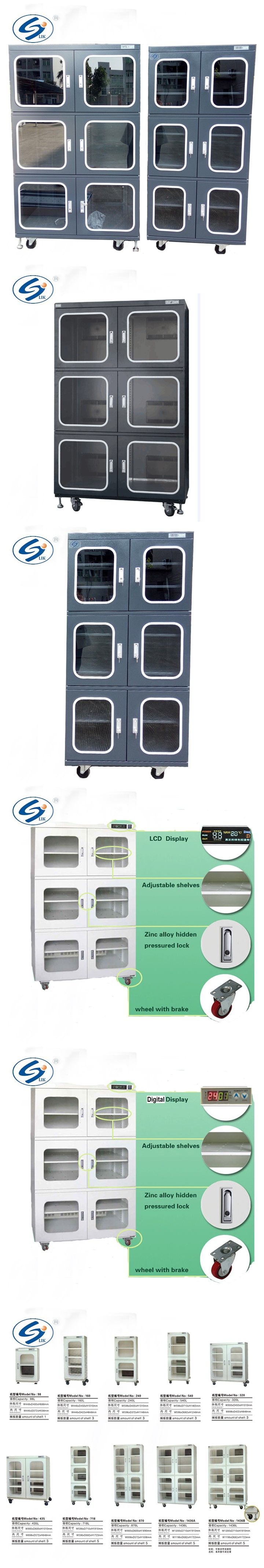

.high-precision display way, the difference of digital display is ±2%RH. 7. High-bearing activity plywood makes box inside space divided easier. Products image(Stainless Steel Glass Door Display Dampproof DCabinet for Hospital Drugs)
Specifications and technical parameters(Stainless Steel Glass Door Display Dampproof DCabinet for Hospital Drugs) | Model number | CTA(BC)
160D | CTA(BC)
240D | CTA(BC)
320D | CTA(BC)
435D | CTA(BC)
540D | LCTA(BC)
718D | CTA(BC)
870D | CTA(BC)
1436AD/BD |
Inner size
(W*D*H)mm | 446*422
*848 | 596*372
*1148 | 898*422
*848 | 898*572
*848 | 596*682
*1248 | 596*682
*1723 | 898*572
*1698 | 1198*682
*1723 |
Outer size
(W*D*H) mm | 448*450
*1010 | 598*400
*1310 | 900*450
*1010 | 900*600
*1010 | 598*710
*1465 | 598*710
*1910 | 900*600
*1890 | 1200*710
*1910 |
| Capacity | 160L | 240L | 320L | 435L | 540L | 718L | 870L | 1436L |
| RH range | CTA: 20%-60%RH; CTB 10%-20%RH; CTC 1%-10%RH |
| Temperature | RT uncontrollable |
| Voltage | 110V/220V 50HZ (can be custom made) |
Display&
Precision | Digital Display;Humidity ±2%RH & Temperature ±1ºC |
Material&
finishing | Cabinet=high quanlity steel plate+hardcoated resin paint
Door=Glass window Powerful magnet rubber seal maintain high air tighting |
| Shelves | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 |
| Doors | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4/6 |
| Wheel | 4 movable wheels 2 front with brakes,4 suppoters for fixing |
| Color | Two colors for options home using in Ivory/anti-static balck(the color can be chosen as your request) |
Selective
Accessories | RS485 interface PC connectable all the dates can be record; Inner LED head light; Sound-light alarm system;SUS304/SUS201 for body cabinet&shelves |
| Condition(RH%) | Store items |
| 60%~45% | Paintings, antiques, paper money, old books, Fax paper, |
| 45%~35% | Camera, lenses, microscopes, endoscopes, binoculars, magnetic tape, disks , records, film,
negatives, positive film, musical instrument, stamps, furs, medicinal materials, tea , coffee,
cigarette etc. |
| 35%~20% | measurement instruments, all electronic parts, pc boards, PCB, metallic powders,
semiconductors, medical supplies etc. |
| 10%~20% | electronic parts ,IC,BGA,Sample, standard measuring tool, seeds, pollen, seedlings etc. |
| 1%~10% | The material needs ultra-low humidity,just as some IC, BGA and so on |

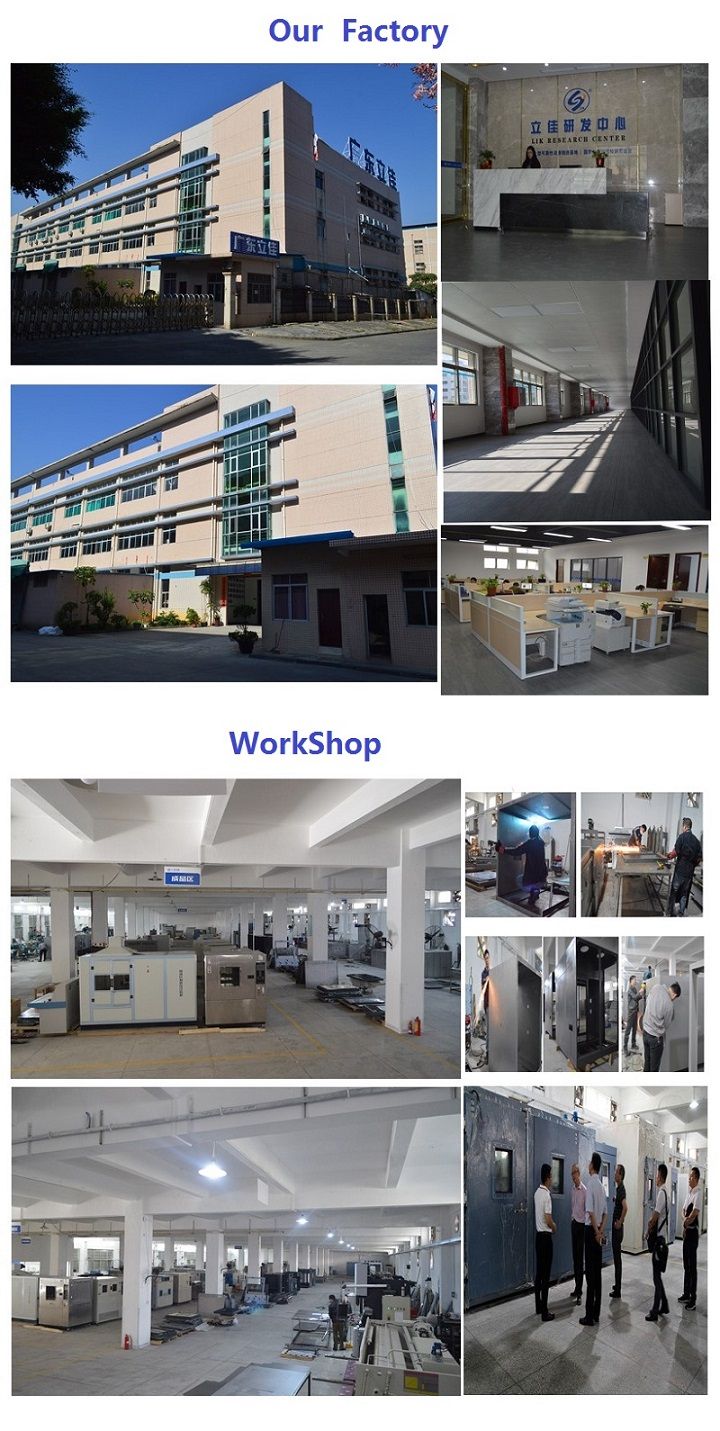

Our FactoryShort introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our ServiceIf you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.1. Pre-service24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: http://en.lik.net.cn/
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .2. After sale service1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.3. Commitment: We will sign a letter of commitment while we sign the contract, which will improve your confidence to us. 5. Good Packaging: Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic
temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information
about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping ,
you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can
find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
How to Contact Us?Please Send your inquiry Details in the below Or send to my mail below directly. We promise reply your inquiry on time.
