| Prod Model: |
DFW series |
| Structure: |
Fixed Board |
| Type: |
Distribution Box |
| Certification: |
TUV, Ce |
| Shell Protection Grade: |
IP33 |
Product Description
Product overview
Cable connector with DFW series cable distribution box conforms to the IEEE386 standard. All cable connections are suitable for XLPE insulated cables. The cable section of the 200A cable joint is 35mm2-18mm2 cable; the cable joint of 600A is suitable for the cable with cable section of 25mm2-500mm2.
| rated voltage | 12KV |
| rated current | 630A |
| dynamic current | 50KA/0.3S |
| thermal current | 20KA/3S |
| power frequency voltage in 1 minute | 42KV |
| direct voltage in 15 minute | 52KV |
| lightning impacting voltage | 105KV |
| protection grade of the cabinet | IP33 |
| | |
| the maximum system voltage(Um) | 24KV |
| impacting voltage | 125KV |
| AC voltage(5 minute) | 54KV |
| continuous rated current | 250A |
| overload current(maximum 8 hours) | 300A |
| short-circuit current(1 second) | 12.5KA |

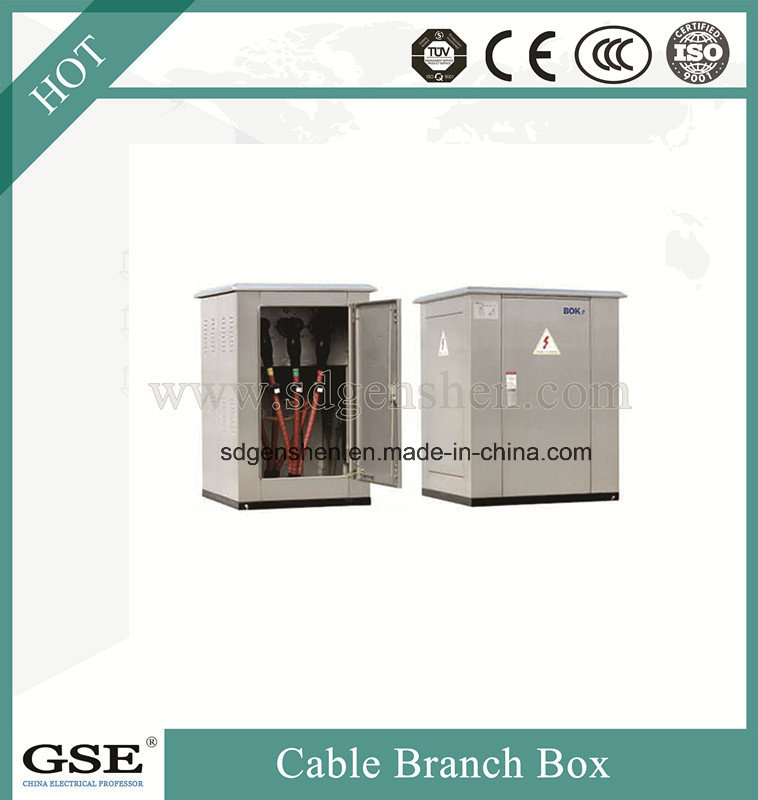

DFW cable branch box (American) series
American cable branch box produced by our company, with its excellent performance, standardized design, beautiful appearance, cable engineering equipment widely used in cable system in the distribution network, in major industrial parks, residential areas, the densely populated city, commercial center and high-rise buildings and other places widely accepted to open the door, it one-way and transverse through bus as the main feature, with small width, flexible combination, insulation, sealing and other significant advantages, in accordance with the rated current can generally be divided into 600A main circuit and 200A circuit is two 600A, the main circuit uses the screw bolt connection, 200A branch circuit adopts pull type connection and can load plug.

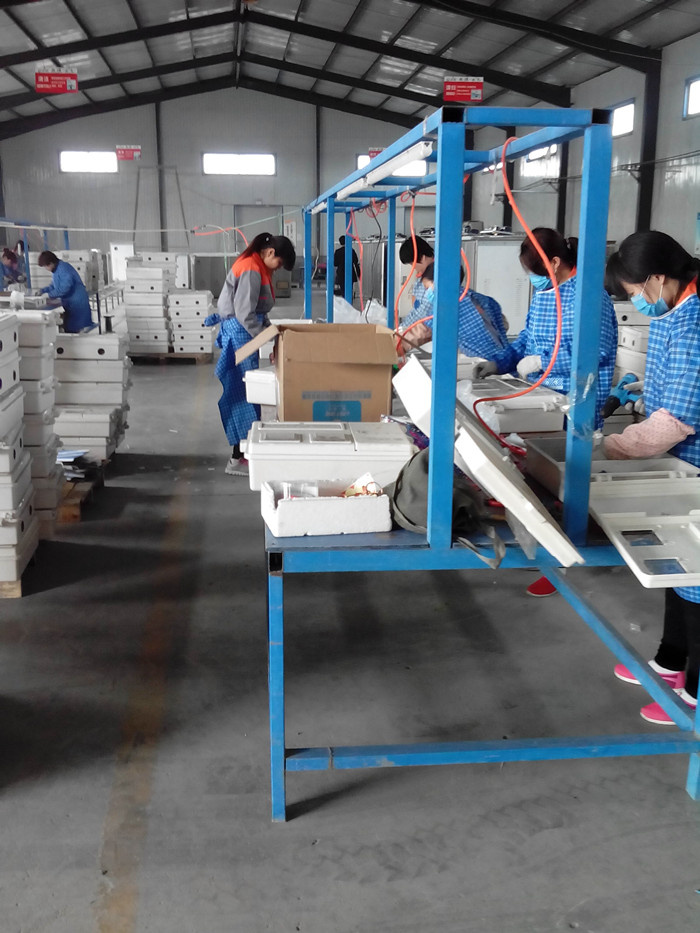

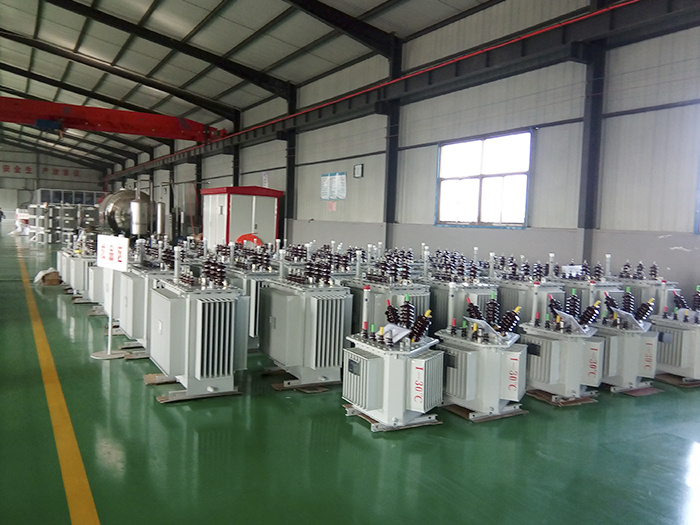

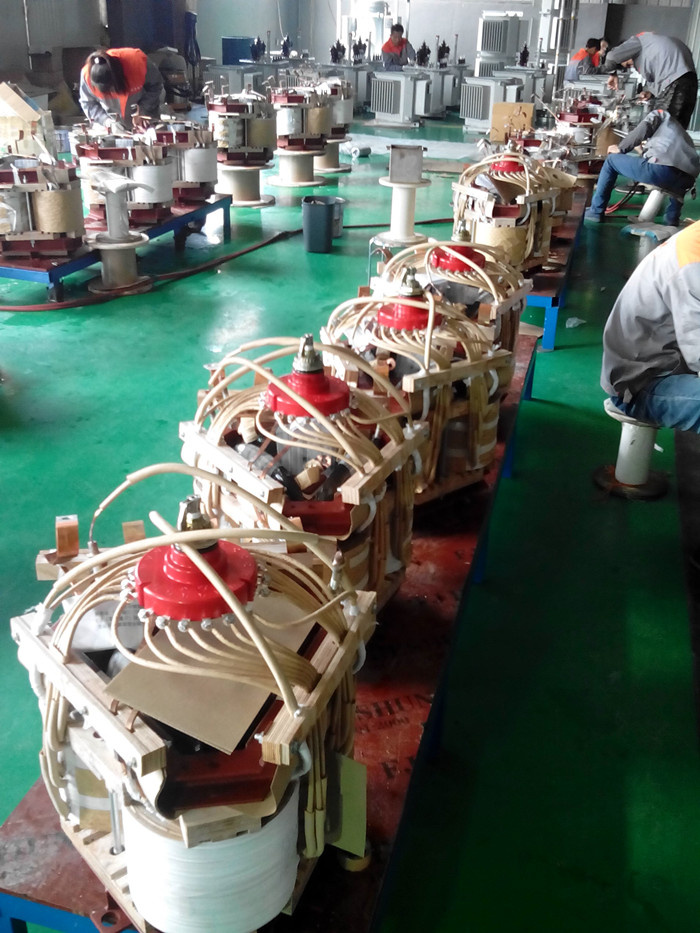

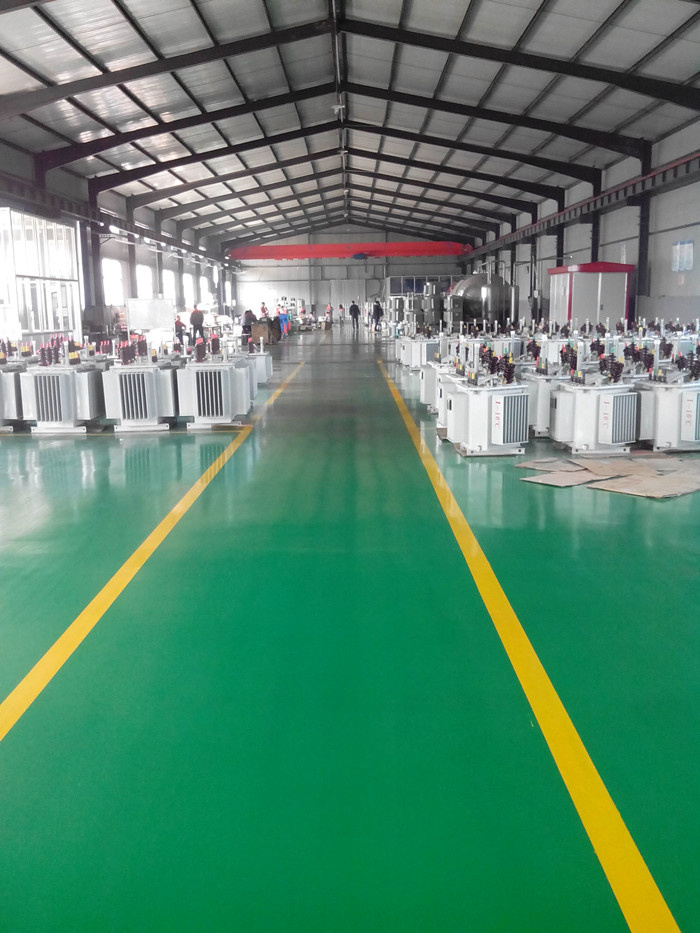

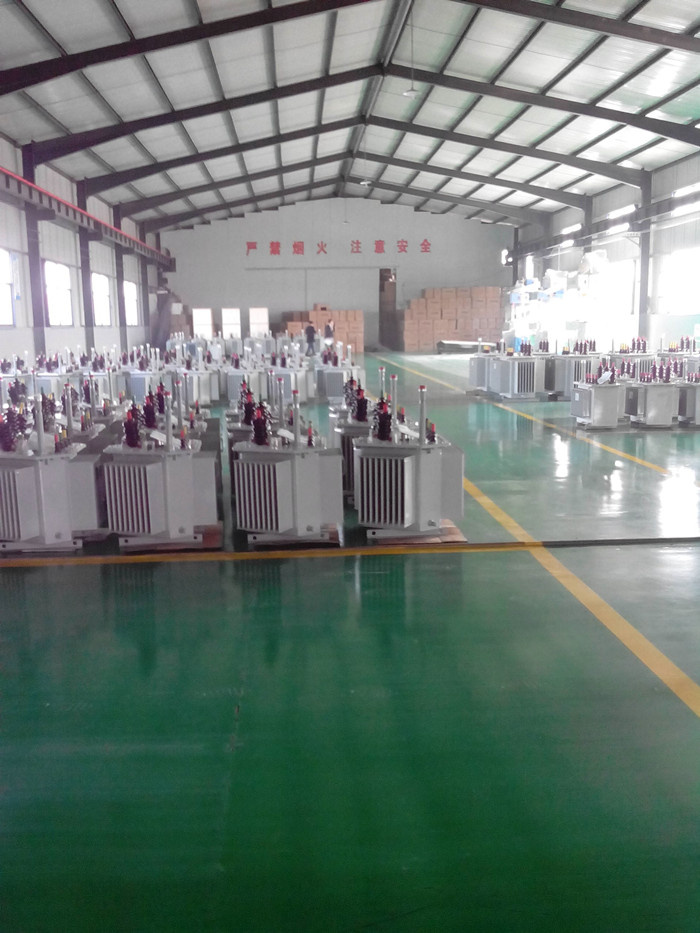

Factory ShowIt is one of the most professional and famous expertise in North China. With major business of power distribution equipment, power transformer euipment, box-type substation, electricity measuring and high-voltage metering device, as well as the power device, instruments&meters, measuring box with GRP and PC+ABS material, charging equipment for electric car, photovoltaic power generation(without generator set) and wind power generation equipment both in producing and selling. For a 3C authentication factory by nationality and already got the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environment certification.
Advantages1, The most favorable offer from professional factory with assurance quality for you!
2, Cooperate with the State Grid Corporation of China many years!
3, All your question will be kindly feedback in 24 hours all the time!
4, No MQQ limit and all the related certification is available!
5, We promised that more profit and pleasure will be got once business relationship established between us!
6, Welcome to visit our factory and your precious advise is expecting forever!
ContactShandong Yangxin Genshen Electric Co., Ltd.
Qingdao Yaoutongxing International Trading Co., Ltd.(subsidiary)
www.sdgenshen.com
www.asia-european.com
Attn: David (sales manager) Ph: 0086-136 5865 3423 Add: Zhoushang Development Zone,Yangxin Binzhou city, China.
Room 2202, Longhaimingzhu Mansion, Laoshan District, Qingdao city China.
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary, Qingdao Yaoutongxing International Trading Co. Ltd, is founded in Qingdao. Registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrating a production, sales and system, company to the electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, glass steel material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales is one of the strongest influence and expertise in North China enterprises, is the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification enterprises.

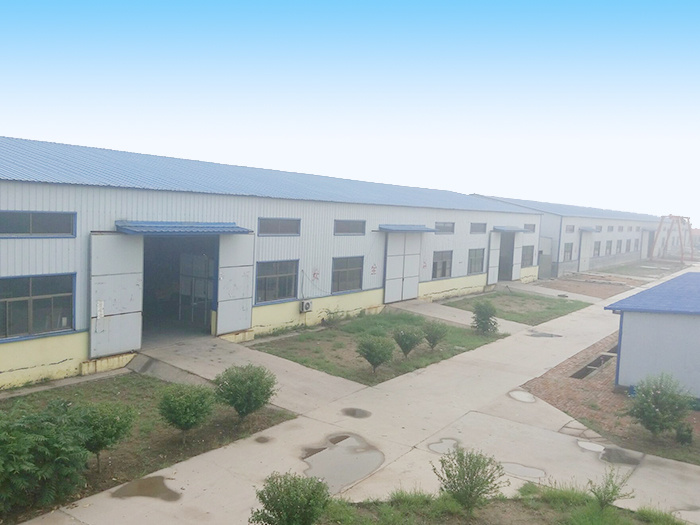

The company is located 14 kilometers west of Yangxin County, the provincial highway and the intersection of the 317 provincial highway in the north, from the Binzhou-Dezhou freeway 3 km, strategic location, convenient transportation, and the transportation is convenient, and the transportation is convenient. Company covers an area of 26934.7 square meters, production workshop covers an area of 50 million square meters, office area of 2000 square meters, . With advanced production lines, testing equipment, thereby ensuring the quality of products, the formation of the development, testing to mass production of modern industrial production scale.
The company spirit of "technology and development, quality of survival" principle, adhere to the "customer first, quality first" purpose; Follow the "from the society and serving the society" the principle of "service above all, responsibility weightier than Mount Tai" for the purpose. We are committed to the prosperity and development of electric power and security. We sincerely welcome customers both at home and abroad to come and visit us.
