| Prod Model: |
NI-7143 |
| Shape: |
Mortise Lock |
| Usage: |
Cabinet Lock; File Drawer Lock, etc. |
| Angel: |
180 |
| Customized: |
Non-Customized |
| Material: |
ABS Shell |
| Surface Finishing: |
Paint |
| Brand: |
Nordson |
Product Description

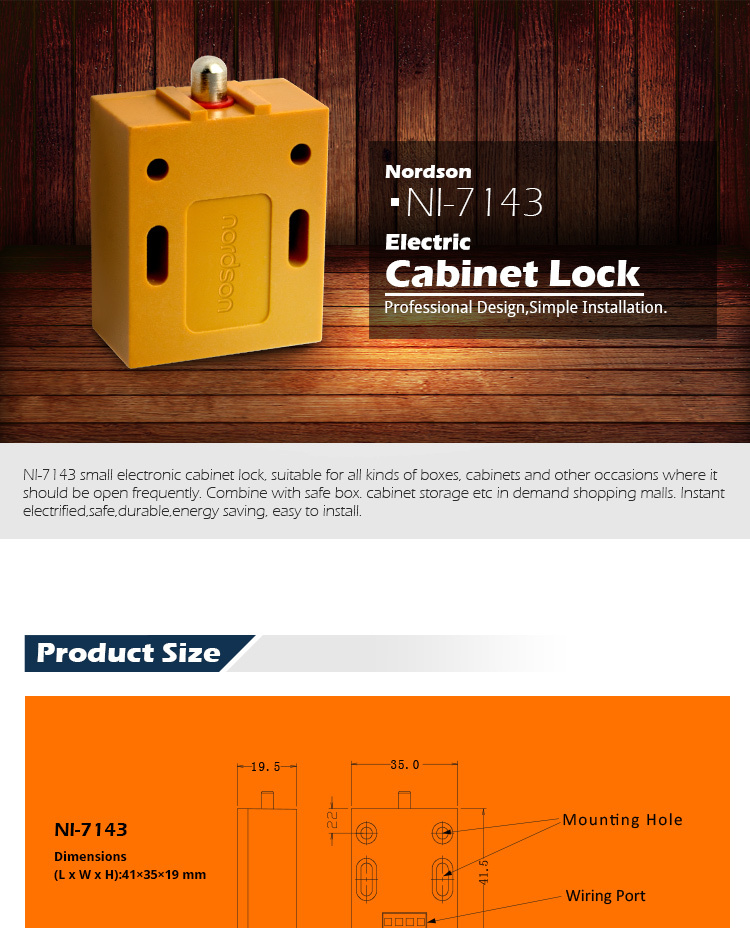

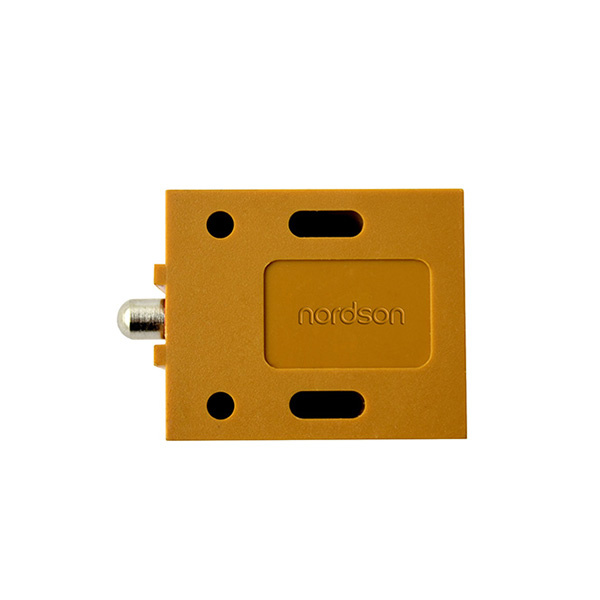

solenoid valve small size Electric Bolt Lock for Small Cabinet
overview:NI-7143 small electronic cabinet lock, suitable for all kinds of boxes, cabinets and other occasions where it should be open frequently. Combine with safe box. cabinet storage etc in demand shopping malls. Instant electrified,safe,durable,energy saving, easy to install.Function:1. Fail-secure type:the bolt is locked when the current is off, Low power less heat,longer life, Stable Performance.
2. suit for a variety of cabinet structure, such as file cabinets, supermarkets storage boxes , store counters and so on
3. Professional Design,Simple Installation.
Specification:| Version | Fail locked(the bolt is locked when the current is off) |
| Diameter dead bolt | ø9mm,18mm |
| Shear strength | 100Lbs/50KG |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Standby Current | 250mA |
| Optional Functions | Door Status Sensors |
| Face place material | ABS |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | Secure lcoking of furniture (Wooden & Aluminum& Metal Furniture frame) |
| Dimensions(L x W x H) | 41mmL×35mmW×19mmH |
| Weight in kg | 0.11kg |
| CE-mark for building | YES |
| Rohs-mark for building | YES |
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China. After years of arduous pioneering, we create a powerful capabilities of product development and manufacturing. Ourbusiness scope involves magnetic lock, bolt lock, strike lock, door contract, accesscontroller, automatic door operator and access control solution.
Nordson pursuited for excellence all the time. We makethe brand to be top-ranking in China with advanced crafts and rigoroustechnologies. Up to now, all our products pass the certifications of CE, RoHS, andalso pass the quality test of security products by China's Ministry of PublicSecurity. Nordson's products sell and be agent in more than 100 countries andregions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc...Besides, Nordson provides OEM and ODM services also. Nordson'sproducts are widely used in business institutions, government agencies, residentialcommunities, universitiesand so on.
In future, Nordson will pursuite for more excellent performance, and provide more new items and better services. Our customers will growtogether with us, to be strong in the process Nordson become the most powerfulenterprise of security system in China.
