Small Medical Incinerator for Clinic Hospital Use

Small Medical Incinerator for Clinic Hospital Use
Price: US $ 8000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FSL-30
Burning Waste: Medical Waste, All Kinds Waste
Fuel: Diesel/Gas
Processing Capacity: 30 Kg Per Time
Door Size: 400mm X 360mm
Running Voltage: 220V or 380V 50Hz or 60 Hz
Weight: About 3000kg
Colour: Gray/Black
Body Size: 2300mm.1600mm.2000mm
Blower: 1.5+1.5
Oil Used Per Hour: 10-15

Product Description

Small Medical Incinerator for Clinic Hospital Use

Some introduction of the machine:

    Improper disposal of medical rubbish with a large number of harmful bacteria and viruses, may have a bad effect on the local environment. Our company specializes in dealing with various medical wastes . In the process of burning , harmful gas can be transported  to the high- temperature furnace of tail gas treatment through the flue. Complex and winding structure was adopted in the incinerator, which makes the residence time of flue gas in furnace excess 3s. By 1100 high temperature burning, all the bacteria and viruses are completely killed. Later the flue gas was conveyed into flue to cyclone separator and spraying device to further eliminate residual fine particles in flue gas. Finally, the chimney will  release pollution-free flue gas into atmosphere.

    Fully automatic control system was adopted in the incinerator. After the user already set the temperature, the incinerator starts to work. It won't shut off automatically until the temperature reaching the intended target .At this moment, it can burning itself and save the fuel, just keep the ventilation.

    Large  pieces of garbage needs crushing , so you can add trash crushing machine.
Under higher demand of exhaust emission, bag dust collector can be chosen optionally  (instead of spray tower of flue gas) to reduce the dust in tail gas .
When burning the harmless and low toxicity of life trash, you can save some cost by not equipping the cyclone dust collector and spray tower of flue gas . Flue links are used.

The machine advantage: Burn fully and better, waste gas treatment more thorough. Carcinogen like Dioxin furan much less than others.


Characteristics:
1. Digital display temperature, full automatic control after set temperature;
2. Stable performance and reliable operation;
3. Full burning, it can burn out the medical waste including residues, plastics, organics and so on.
   Smokeless and Odorless and no pollution to the environment.
4. Large capacity, can burn big waste directly like size 70cm.
5. Using 2nd combustion technology, fully burn harmful waste gas. No black smoke, ash less.
6. The internal use materials of high temperature and corrosion resistant, safe and reliable.


Application:
    This equipment is suitable for the hospital medical waste, life rubbish, dead animals, the villages and towns of urban garbage disposal, and various aspects non-hazardous wastes treatment.

FSL series Incinerator Parameters:
ART NOPROCESS QTY PER TIMEOIL CONSUMPTION/HOURCONTROLPOWER SUPPLYFAN POWER
FSL-2020KG5-10Automatic220V/50HZ1.5+1.5
FSL-3030KG10-15Automatic220V/50HZ1.5+1.5
FSL-5050KG25-30Automatic380V/50HZ1.5+4
FSL-100100KG30-60Automatic380V/50HZ4+4
FSL-200200KG50-100Automatic380V/50HZ4+4+4

The medical waste incinerator air exhausting
Exhaust air The first time dedication(kg/h) The second time dedication(kg/h)
SO20.2790.163
NOx0.2860.219
Smoke and Dust0,2930.172
Smoke blackness <1<1

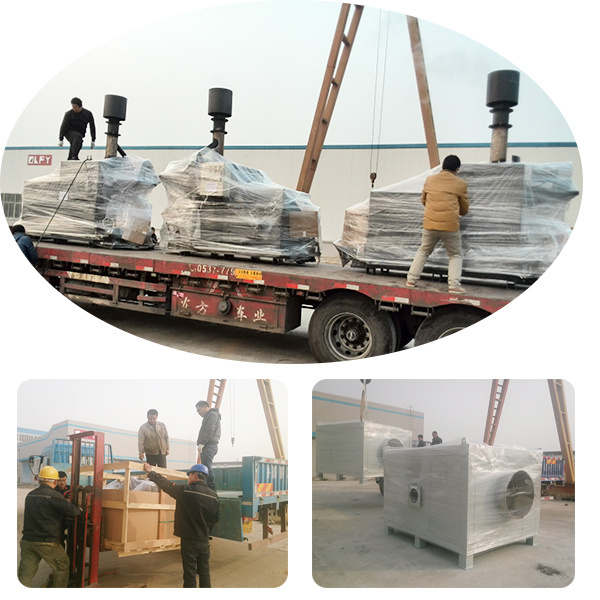

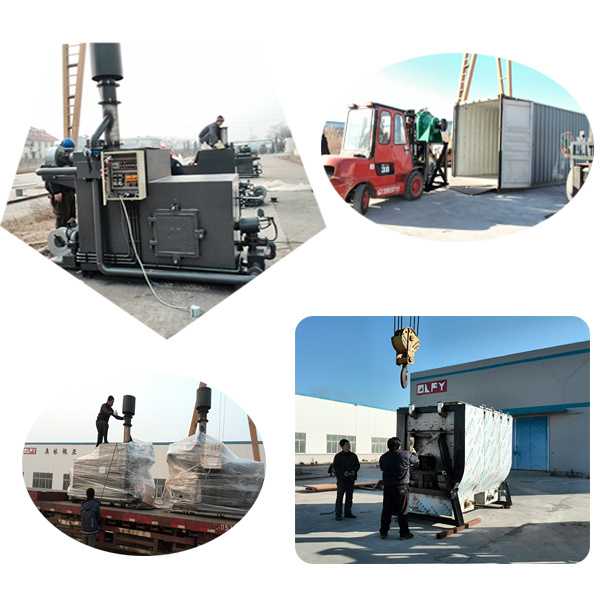

SOME PHOTOES:







Company Profile:

    Qingdao Olympia Heat Energy Equipment Co., Ltd. is a professional manufacturer producing burners and incinerators etc.  The company in the early 1990s  learned advanced technology from Japan, created the Liaoyang Olympia Co., Ltd. And in 2003, created  Qingdao Olympia Heat equipment Co., Ltd.

    The company produces products fuel, gas, oil and gas mixing burner. Sizes from small civilian burner to large industrial burners. Meanwhile we produce hot water boiler, stove, incinerators, organic fertilizer fermentor. In the past two years, the company has developed a non-emission green energy toilet, far infrared and far infrared sauna equipment road heating equipment.

    Company in Shenyang, Shanghai, Nanjing, Changchun and other cities with distribution facilities, our technical department dedicated to providing technical advice and training, adhere to honesty, novelty, quality first for business purposes, based on high technology, sufficient to attract domestic and foreign advanced technology and experience, continue to provide quality products and services.


    Our products are widely used in hotels, restaurants, highways, fitness center, sauna, factories, etc., especially for non-environmentally friendly toilet sewage treatment places, by the majority of users favor. Products with environmental protection, energy saving, safe, convenient, and efficient features, has won a good business reputation and high visibility, sales network throughout the country. We warmly welcome all walks of life to discuss about consulting, visit the guide, work together for China's energy and environmental protection industry to contribute.


CONTACT INFO:

Amanda Yu
Tel: +86 18153231065  Fax: +86 532 82279617
+86 18153231065



WE ARE NOT ONLY PRODUCER FOR HIGH QUALITY INCINERATORS, BUT ALSO THE LEADING SYSTEM  SOLUTION PROVIDER IN CHINA.







Qingdao Olympia Heat Energy Equipment Co., Ltd is a professional manufacturer of burners. Sino-Japan Liaoyang Olympia Co., Ltd was founded at the beginning of 1990s through borrowing the advanced technology from Japan. Under the demand for further development, Qingdao Olympia Heat Energy Equipment Co., Ltd was established in 2003.

The company main products include burners of fuel oil, fuel gas, and mixed oil and gas including all kinds of specifications from small-size civil burners to large-scale industrial burners. Meanwhile, the company also produces heat energy equipments such as hot water boiler, air furnace, incinerator for medical purpose, etc. Nearly two years, the company also developed no-emission environmental protection and energy saving toilet, infrared sauna equipments and far-IR road-building heating equipment.

The company has set up distributions branches in large and medium cities such as Shenyang, Shanghai, Nanjing and Changchun. The company Technology Department will sincerely offer users with technical consultation and personnal training, and continue to provide users with high-quality products and services according to the operation tenet of honesty, innovation and high-grade quality, on the basis of the high technology, and through fully attracting the advanced technology and experience in China and abroad.

Products are widely used in hotels, restaurants, highway, fitness center, sauna bath, factories. etc, especially for environmental protection toilets, where no sewage treatmentWe have recieved the high praise from our customers. Company products with environmental protection, energy saving, safe, convenient and efficient characteristics, win a good business prestige and higher well-knownness, the sales network spreads all over the country.

We applaud warmly persons of various social communities to come for business negatiation and consultation or giving instructions. Let us contribute together to energy sources industry of China.
