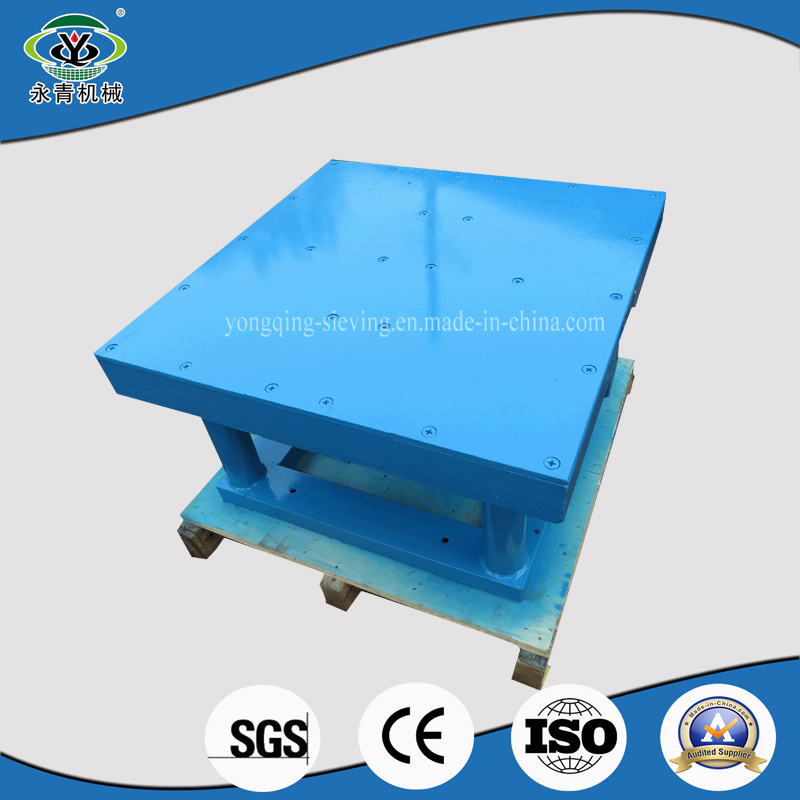

Small Concrete Vibrating Table for Plastic Paver Moulds (ZDP800)

Small Concrete Vibrating Table for Plastic Paver Moulds (ZDP800)
Price: US $ 450-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: ZDP800 vibrating table
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commodity: Zdp800 Concrete Vibrating Table
Dimension: 800mm*800mm*500mm
Material: Carbon Steel
Amplitude: 1-6mm
Decks Height: 10mm
Loading Weight: 200kgs
Weight: 160kgs
Vibrating Motor: 2 Sets
Power: 1.0kw
Voltage: 220V-550V
Type: Concrete Vibrator
Machining Process: Welded Molding Machine
Certification: CE
Condition: New
Feeding Height: 500mm

Product Description

Small concrete vibrating table for paver plastic moulds



Introduction

1. ZDP vibrating table is also called vibrating platform. Mainly used for material consolidation, air and cracks reduction within material, which makes processing materials more tighter, solider during cast consolidation. Such as lost foam casting, concrete casting and so on.
2. Widely used in metallurgy, casting, foodstuff, chemistry, construction fields and so on.
3. Used for transforming the granule, powders from bulk to block, from shape to form.
4. Different types of vibrating tables are available according to the production characteristics.



Specifications sheets

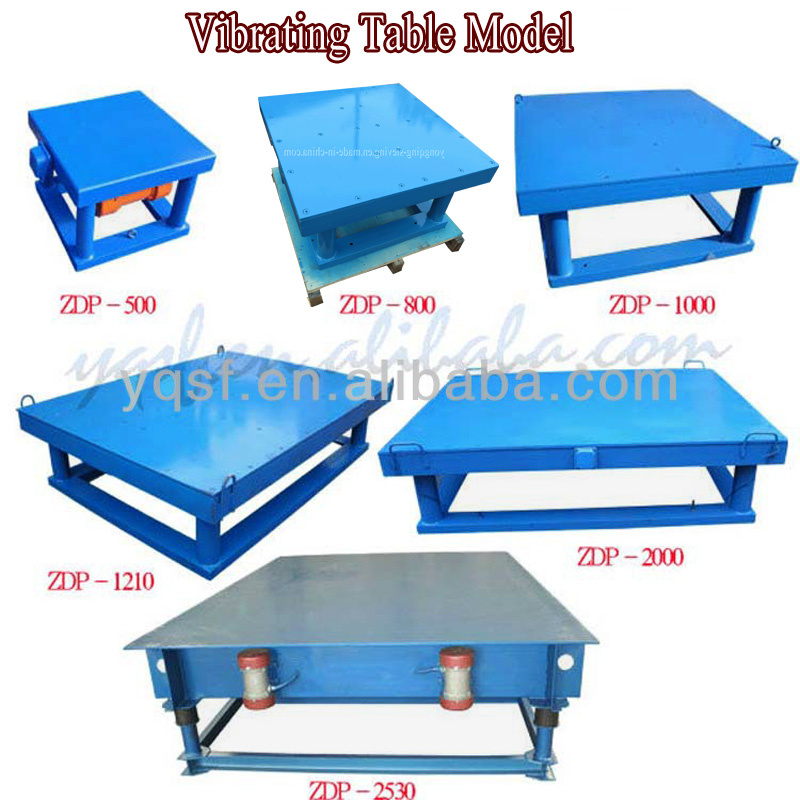

                                          ZDP Vibrating Table
ModelTable Size
(mm)
Power
(kw)
Amplitude
 (mm)
Max Loading Weight
        (kg)
ZDP-500500*5002*0.252-5300
ZDP-800800*5002*0.25400
ZDP-10001000*10002*0.4600
ZDP-12001200*12002*31200
ZDP-15001500*15002*32000
ZDP-30003000*30006*1.53000

Structure:

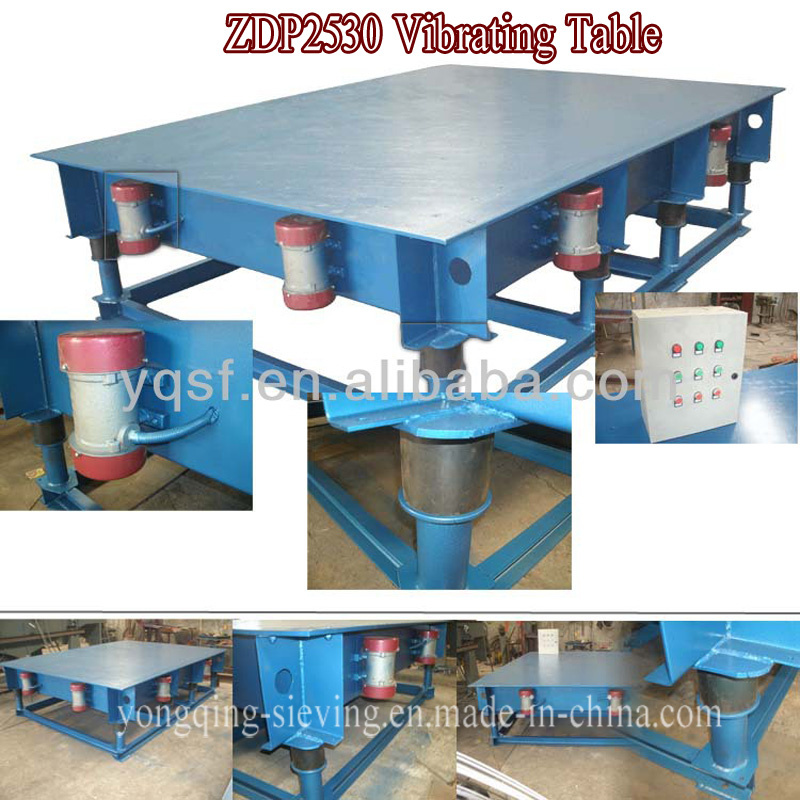

1.Concrete vibration table mainly consists of bottom brackets, upper platform, vibrating motor.
2. Three dimensional vibrating motion: a. horizontal b. vertical. c. up to down.
3. Spring: Steel spring, rubber spring, Composite spring.
4. Motor quantity should be even number, such as 2, 4, 6, 8


FAQ

Pls kindly provide the following information for a suitable vibrating screen model
1. Your Usage?
2. The machine size?
3. Your loading weight on the table?
4. The voltage? (220/240/380/415/450V are all available)
5. The FOB or CIF is needed and also the destination port?
6. Your special requirements?


Pls feel free to contact us........................................


As a Chinese screening equipment, conveying unit, and feeding device provider, Yongqing Screen Machine Co., Ltd. Was founded in Xinxiang City, Henan Province, China, in Oct. 2006. We have rich experience in the product research, development, manufacturing, and professional service. Our products include vibrating screen, vibrating motor, belt conveyor and so on. They can be widely used for food screening, impurity removing from ceramic glaze, ore processing, and so on. If clients need special products, our R&D department can either update our existing products or design new products according to the requirements.

We have more than 5 years of international trade experience, while our screening machines and related accessories have entered more than 50 countries and regions. Currently, you can find our first level agencies in Indonesia and Portugal.

Our premium screening equipment, conveying equipment and feeding machine have been widely welcomed by our customers for our processional production techniques, considerate support and service, and reasonable price, In addition, we also provide various services like project design, production technique design, non-standard product design, and on-site technical support.

We have established an efficient quality control system conforming to ISO9001 standard, covering from raw material purchasing, components processing, product assembly, up to the finished products tests. Three quality inspection procedures for the production department, quality insurance department, and our customers, respectively, have been continuously optimized to guarantee the excellent product quality.

In spite of the successes we have accomplished, we will never stop progressing and providing better products. Just contact us if you are interested in our products or have any advice for us.
