| Price: | US $ 0.8-1.2/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | EBILMETAL-SAS |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: | Double Faced |
| Number Of Layers: | 3-6 Levels |
| Entry Type: | 2-Way |
| OEM: | Yes |
| ODM: | Yes |
| Finishing: | Powder Coating or Galvanizing |
| Adjustable: | Yes |
| Layer Board: | Steel Plate, High Density Wood |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Usage: | Supermarket, Home, Warehouse |
| Height: | as Request |
| Weight: | as Request |
Product Description:

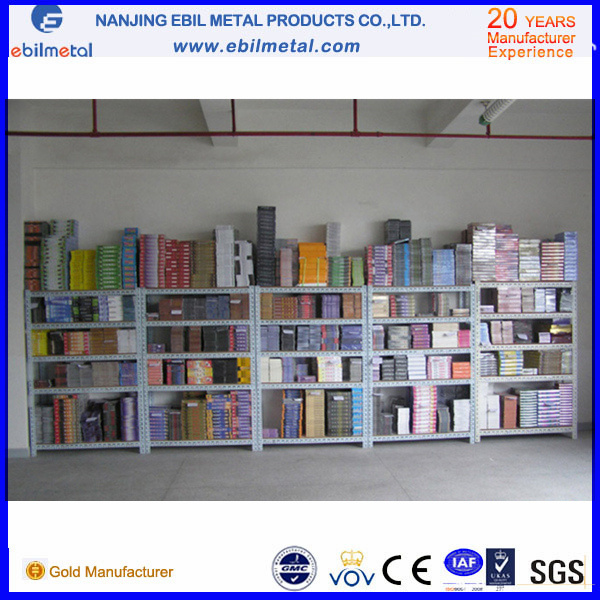

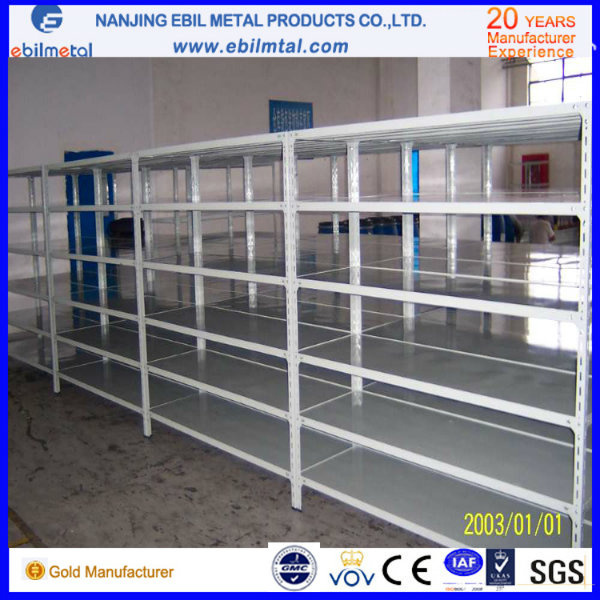

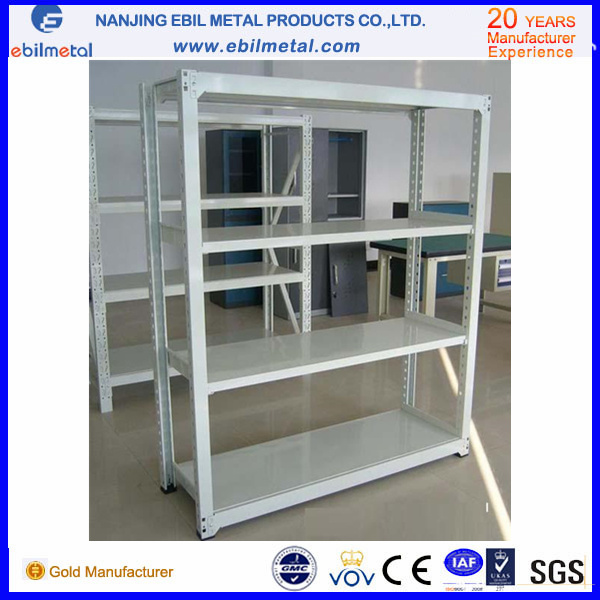

* Slotted Angle Shelf is one kind of Light Duty Shelf.

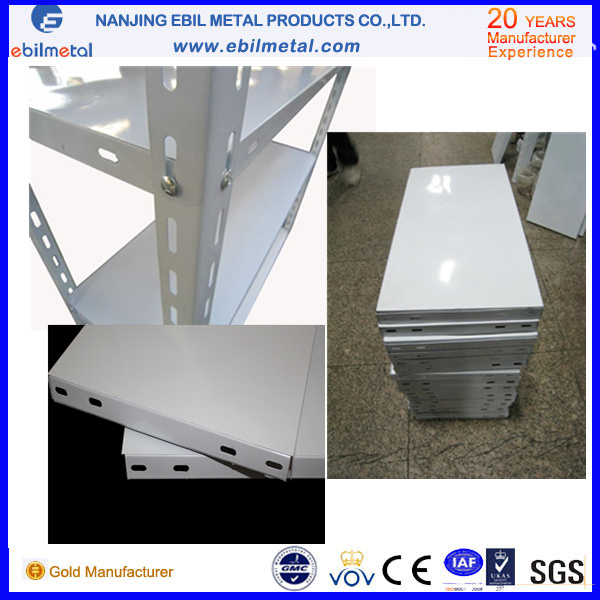

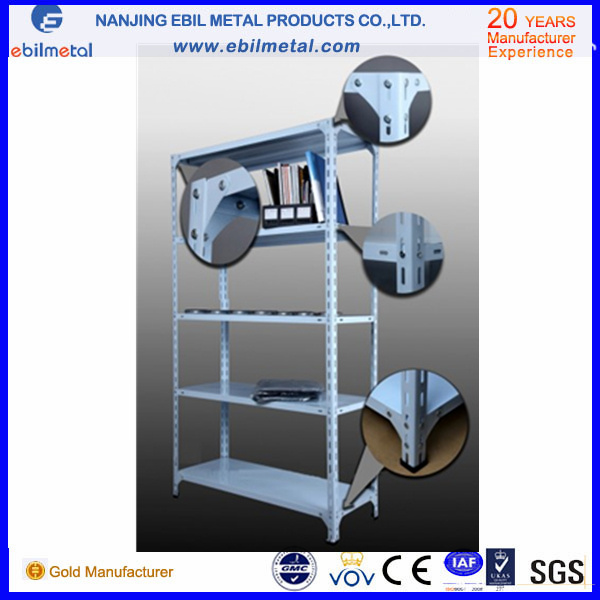

* Slotted Angle Shelf consists of :

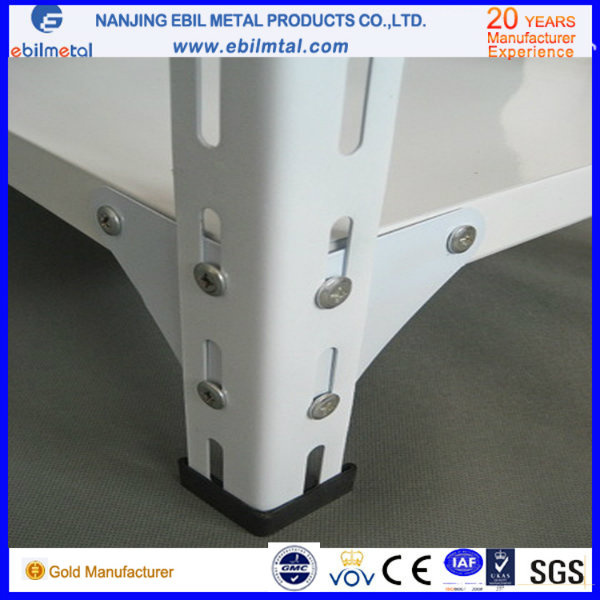

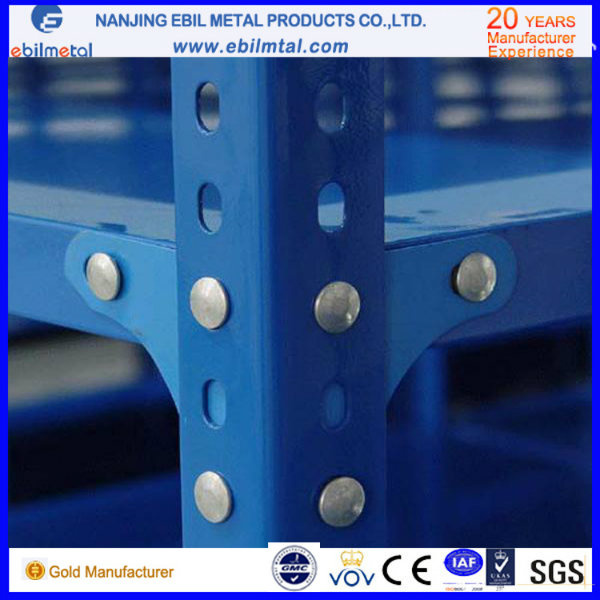

upright poles, layer plates, corner pieces, pins, special bolts and plastic footing
* Layer board could be steel plate or high density board.
Main Feature
1. Assemble interlock structure;
2. Easy and fast installation;
3. Convenient to adjust the layer height by pitch 50mm.
3. Max. Loading capacity per layer is 150kg.
4. Suitable for hand loaded cargoes and materials, especially for electronics, light industry, medicine, education and library.
| Material | Steel Q235 |
| Color | Blue, Orange, Pea Green, Milk White, Light Grey |
| Number of Layers | 3-6 levels |
| Loading Capacity per Layer | 150kgs |
| Layer Board | Steel Plate, High Density Wood |
| Use for | Storage, warehouse,home |
Standard Dimension
| Length(mm) | Depth(mm) | Height(mm) | Thickness(mm) | upright dimension(mm) |
| 2000 max | 600max | 2500max | 0.7/0.8 | 38*38 |
* Size and dimensions of the the slotted angle shelf are customized and as requested.
* Colour: orange, blue, milk white, pea green or as customers' request.
Please advise us the following information for quick quotation:
1. Drawing(if available)
2. Size of your warehouse
3. Size of racking(L*D*H)
4. Loading capacity per layer(for rack)
5. RAL/color as your requested
If you don't have the drawing, we could provide you the CAD design for your warehouse according to your request.
Nanjing Ebil Metal Products Co., Ltd
---- Over 20 years' experiences in designing and manufacturing storage racking system. More than 10 years' of experience in export.
---- Sell to more than 20 provinces in domestic and more than 120 countries overseas.
---- Ebil implements ISO9001 system into all operations rigidly, and had passed CE, SGS and TUV Certificates.
---- Professional installation and after sale service teams.
WE OFFER YOU:
1. Prompt service and response in 24 hous;
2. Lead Time: 7-20 days for 3*40'fcl general orders;
3. Excellent quality for every part, every step;
4. Best storage solution for your warehouse;
5. Perfect service & technical support in every business process;
6. Direct sale freom manufacture and customized dimensions;
7. Small wholesale allowed.
8. All kinds of colors and sizes are available.
Standard colors are: blue, orange, light grey, milk white and pea green;
9. Monthly output: 2000mt;
10. Meet American, European and Australian Standards.
