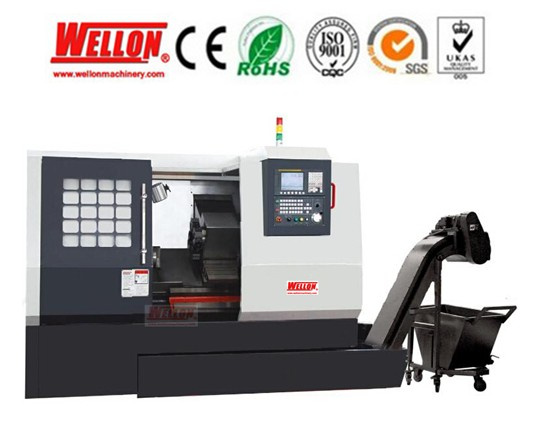

| Prod Model: |
CK30D CK35D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Bore: |
41 Mm |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description
1.Its spindle is supported by high-precision rolling bearing, which realizes high turning precision.
2.The carriage in vertical and horizontal direction is driven by high-precision ball screw, which realizes good dynamic performance and high positioning accuracy.
3.For users to choose the work piece clamping; 1. Three-jaw chuck; 2.Power chuck + hydraulic rotary cylinder
4.The automatic feeding rack can be selected optionally according to user requests.
5.Adopts 4 position electric tool holder, terminal gear positioning of higher repeatability.
6.Full protection machine house to protect the machine inner structure from pollution, elegant and reasonable outlook.
7. Machine screw and guide way are lubricated automatically by automatic pump, easy and reliable.
8.The spindle changes speed by variable-frequency motor, electrical system controls spindle to rotate forward and reverse controlled, spindle forward and reverse rotating has the same speed.
9.Two piece motors are directly connected to screw female vise by coupling which makes X and Z axes feed movement, high position and un-spaced transmission.
Usage
1.Turning work piece type: most suitable for the high-precision and complex work piece
2.Turing shape: inner-outer sphere, terminal,grooving,arbitary taper surface,cylinder surface, the thread of the cylinder and taper.
3.Application range: electric and instrumentation industry, automobile, motorcycle,fasteners,bearing,photographic equipment, film industry, hardware tools,watches, glasses,stationary, motors,valves, gas pipes and so on.
| ITEM | CK30D | CK35D |
| Max. swing over bed | 300 | Φ 350 | Φ 350 |
| Max. diameter |
| Φ 350 Gang tools | Φ 280 Turret style |
| Max. swing over toolpost | 120 | Φ 80 Gang tools | Φ 150 Turret style |
| Max. machining length | 320 | Φ 250 Gang tools | Φ 150 Turret style |
| Spindle nose style | A2-5 | A2-4 |
| Hydraulic chuck | Φ 160 | Φ 130 |
| Spindle motor | 5.5KW | 5.5KW |
| Max. spindle speed range | 4200rpm/5500rpm | 4500rpm |
| Spindle bore dia. | Φ 41 | Φ 41 |
| Bar auto-feeding bore | Φ 30 | Φ 30 |
| X/Z axis spec. | 2505/3210 | 2506/3206 |
| Max. travel of X axis | 280 | 250 |
| Size of X/Z linner guide-way | 30 | 30 |
| Max. travel of X axis | 320 | 250 |
| Rapid traverse rate X | 12m/min | 12m/min |
| Rapid traverse rate Z | 16m/min | 16m/min |
| X-axis | ± 0.008 | ± 0.008 |
| Z-axis | ± 0.012 | ± 0.012 |
| X-axis | ± 0.0035 | ± 0.0035 |
| Z-axis | ± 0.005 | ± 0.005 |
| Gang tools table size/Optional turret | Gang tools table size: 420X210 | Gang tools table size: 420X210 |
| Overall size (L*W*H) mm | 3100X1700X1600 | 3100X1700X1600 |
| Weight | 2000kg | 2100kg |
