| Price: | US $ 5000-20000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | Xs0308 |
|---|---|
| Machine: | Single Needle Post Bed Lockstitch Industrial Leath |
| General Use: | Sewing Medium Heavy Weight Articles |
| Mechanical Configuration: | Post-Bed |
| Stitch Formation: | Single Lock Stitch |
| Stitching Length: | 7mm |
| Max. Sewing Speed: | 2500 S.P.M |
| Feed System: | with Needle Feed and Top-Bottom Feed |
| Classification: | Sewing Machine |
| Type: | Shoes |
| Automatic Grade: | Automatic |

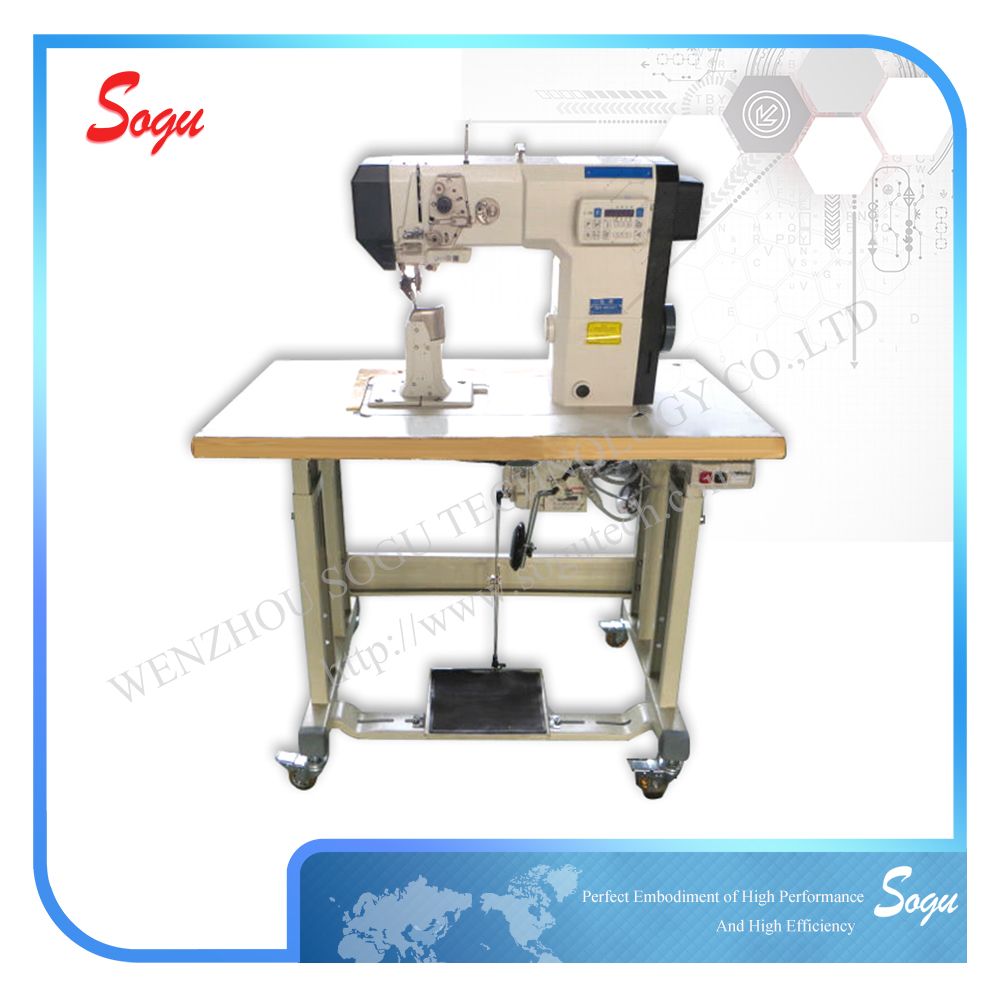

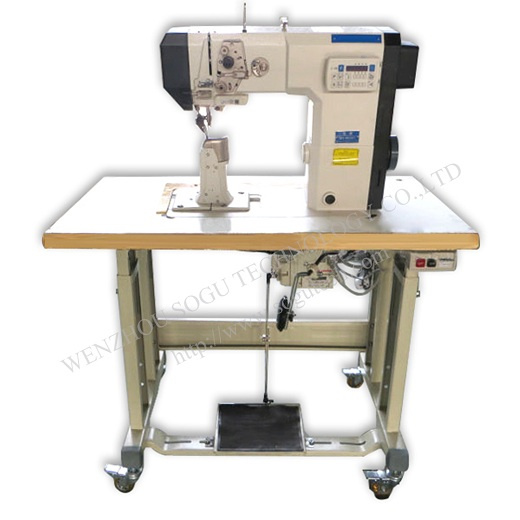

Name: Single Needle Post Bed Direct Driver Lockstitch Industrial Shoe Leather Sewing Machine ( With Needle Feed and Top-Bottom Feed)
Features
1. Scope of application: This post bed leather sewing machine is suit for sewing on medium heavy weight articles with arc-shaped,eg,superior leather shoes,hand bags,gloves,caps. It ensures you easy daily maintenance.
2. Single needle post-bed direct driver sewing machine, high-speed post bed sewing machine (post to the left of the needle) with driven feed wheel and roller presser and synchronized needle.
Secial Featres And Applications
Single Needle Postbed Lockstitch Wheel Feed Needle Need and Driven Roller Presser Shoe Industrial Sewing Machine
· No compressed air required,all electronic control.
· With derect driver motor ,more invironmental protection.
· Optimized kinematics with new part sets guaratee to sewing results.
· Easily adjustbable thread trimmer for short thread ends.
· Overload clutch for hook protection.
· Easily and accurate adjustable needle guard.
· A multifunction switch with pre-programmed function is intergrated in the sewing head for:
-Reserse sewing/intermediate backtacking
-Selection for preset speed

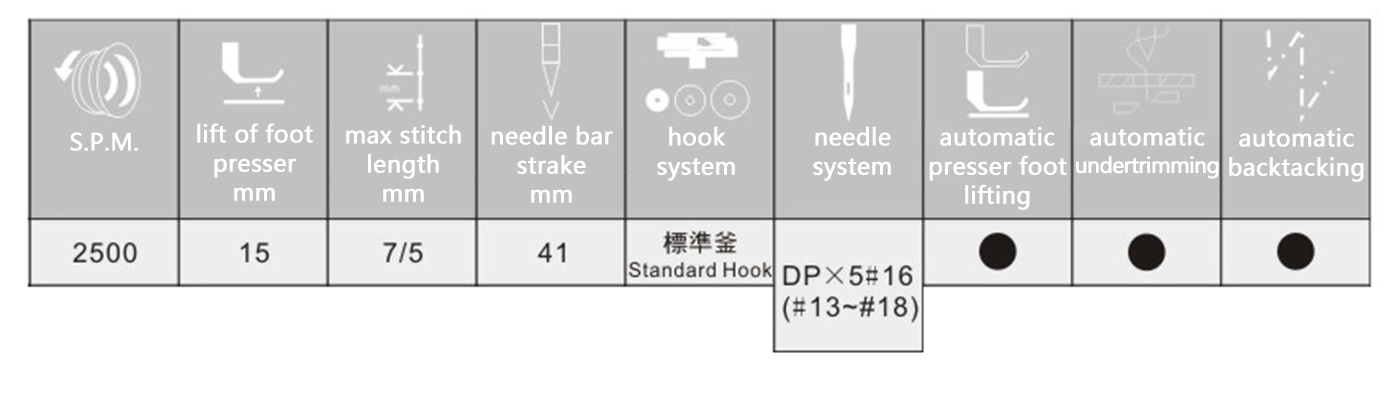

Parameter
mechanical configuration | Post-Bed |
stitch | single lock stitch |
max stitch length | 7mm |
max sewing speed | 2500s.p.m |
lift of foot presser | 8.5mm |
needle bar strake | 41mm |
needle | DP5x16(11#~20#) |
cutting depth | 6mm |
motor power | 600w |
