| Prod Model: |
SD-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Manual |
| Precision: |
Normal Precision |
| Type: |
Multi-Use Grinding Machine |
| Controlling Mode: |
Artificial |
| Processing Object: |
Sheet Metal Fabrication |
Product Description

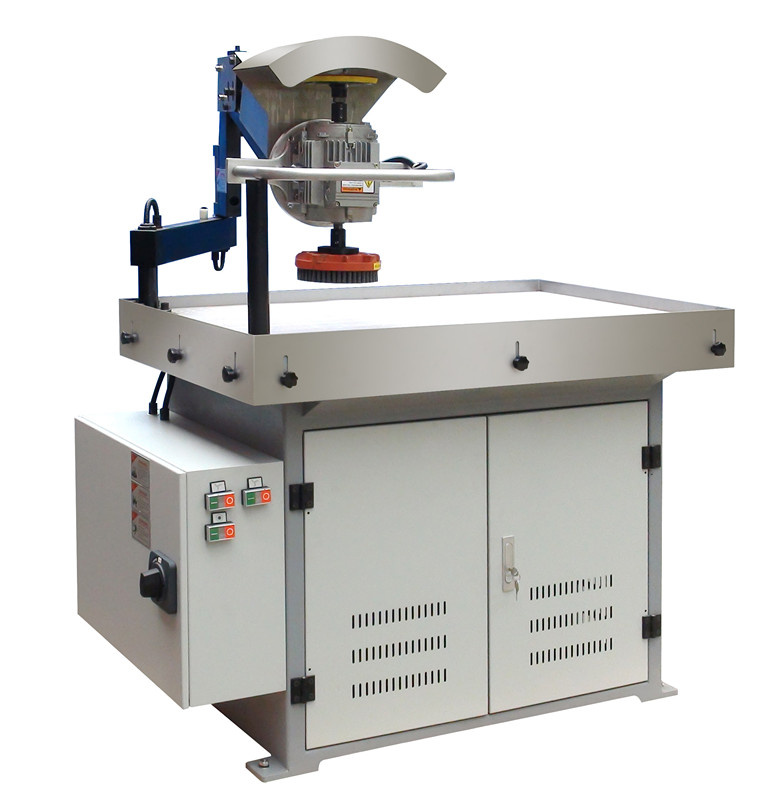

Brush deburring machines Grinding deburring finishing
Jonsen SD-H swi
High quality deburring designed for factories those have no large quantity work pieces.
Pneumatic levitation type deburring head, ease and effective deburring pressure control by finger.
Self-control type vacuum table and automatic vacuum pressure
Work piece can be fixed on the vacuum table without extra fixtures.
High effective dust extraction system used for collecting the grains and dust.
Two deburring heads(rough and fine grit) share same power, 90° / 180° Freely turning.
Heads replacement can be within 2 seconds, high effective.
Patent brush replacement technology within 10 seconds, high effective.
Simple installation, integral design
If there is some work pieces' size bigger than said working size, you still can process within the cantilever working range
Vacuum table size(mm) 1200X800
Cantilever working range1500mmX360°
Max. Working sizeOn table (mm) 1160X780
Max. Working size (mm)1500X1500
Working thickness(mm1-200
Deburring head power(KW)0.75
QTY of deburring heads 2
Vacuum capacity KG/hole 0.8
Dustextraction capacity (M3/h) 1000
Total power (KW) 4.05
Dimension (mm)1200X1000X1500
Weight (T) 0.4
Hangzhou Xiangsheng Abrasive Machine Manufacturing Co., Ltd. is specialized in metal surface processing equipment. We are devoting into metal grinding deburring and finishing in the past 21years and become the leader in this industry.
We are paying close attention to the advanced technologies and customers' Requirement, so every machine is with definitude function. In 2005, Jonsen' S products entered market of Europe and USA. The high ratio performance & price gets good reputation of customers all over the world.
The company' S management system was certificated in accordance with ISO9001: 2008. It successfully obtained CE in 2005. The compant passed through the ISO14000 in 2007. We believe that professionalism is the best solution! .
Established by Mr. Xiangsheng Chan, Jonsen started the abrasive belt jointing work in 1993, then we has been devoting to the belt grinding till today.
Now, we are servicing customers over world various of products: Wide belt grinding machine, graining, edge rounding, deburring machine, finishing machine, linishing machine, stroke sander, coil to coil and sheet to sheet grinding finishing line etc.
For the consumer products like abrasive belt for all size, top-brush, scotch brite brush, finishing brush, disk brush, steel wire brush, we are willing to share the use experience with you.
