| Prod Model: |
6-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coarse Deck: |
Separation 2-0.5mm Mineral Particle |
| Fine Sand Deck: |
Separation 0.5-0.074mm Mineral Particle |
| Slime Deck: |
Separation 0.074mm Mineral Particle |
| Application: |
Gold, Silver, Tin, Columbium, Tantalum, Titanium |
| Testing: |
Supply |
| Flowchart: |
Supply |
| Spare Parts: |
Supply |
| Installation: |
Supply |
| Delivery Time: |
in Stock |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Certification: |
SGS |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
| Material: |
Fiber Glass |
| Material Feature: |
Defornation Resistance |
Product Description

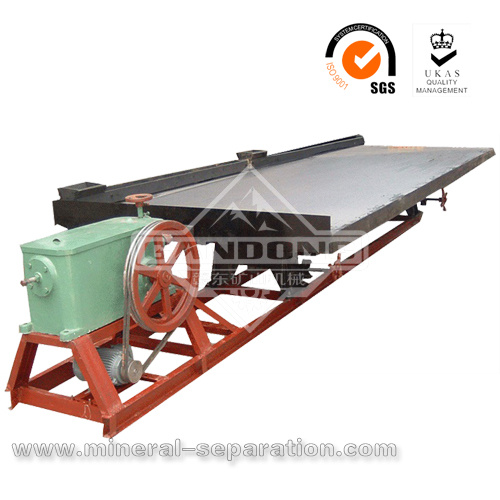

Gravity Separation 6-S Shaking Table
which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Put the raw materials into the feeding launder, and put some water in to make it into slurry of concentration of 20% to 25%, and gravity flow to the deck. The particle group become loose and layered because of the rinsing of water and shaking of the deck in the bed ditch. After the layered, the upper particle and the bottom particle move in different direction because of the different pressure of flowing water and the friction of the bed surface. The upper light particle moves downward along the transverse of bed surface result of the stronger flowing water., this side called tailing side. The heavy mineral particles which located in the bottom of bed layer was influenced by differential movement of bed surface, thus them move to the opposite of the drive end, and we call this point concentrate side. Because of the different density, granularity, and the directions of movement, the groups of mineral particles spread in Fan-shaped along the diagonal of the feeding launder. The production discharge along the edge of bed surface, the discharge line is so long, so that shaking table could produce many kinds of different quality product precisely.
Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailings and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of concentrate is very good, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 2 to 0.02 mm.
Features
* High recovery ratio
* High concentration ratio
* Easy installation
*Simple operation
* Deck constructed of fiber glass
* Seven different decks to choose
* Long working life
* Adjustable stroke length and speed
Construction and mechanical features
Head Motion Gandong shaking tables are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication.This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
Decks The decks are constructed of steel framework and covered 16mm fiberglass with emery, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant,
corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Support types Traditionary type, 10# channel steel support or 20# channel steel support are available.
Feed and Water Box A wooden feed distributing box with hopper and a long water
box are attached to the iron of the deck, giving a very even distribution of feed and water.
Technical Specification The Gandong Shaking Tables have three distinct deck designs available.
The coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074
mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.02 mm to 0.074 mm.
Support types Traditionary type, 10# channel steel support or 20# channel steel support are available.
Feed and Water Box A wooden feed distributing box with hopper and a long water
box are attached to the iron of the deck, giving a very even distribution of feed and water.
Technical Specification The Gandong Shaking Tables have three distinct deck designs available.
The coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074
mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.02 mm to 0.074 mm.
| Model | 6-S 7.6 | 6-S 4.08 | 6-S 1.95 | 6-S 0.5 |
| Deck type | Coarse ore Deck | Fine sand
Deck | Slime Deck | Three different kinds of decks are available |
| Beneficiation area (m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 |
| Deck Size | Length (mm) | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 |
| Transmission end width (mm) | 1850 | 1850 | 1850 | 1320 | 1050 | 500 |
| Concentrate end width (mm) | 1550 | 1550 | 1550 | 1100 | 850 | 430 |
| Maximum feeding size (mm) | 2 | 0.5 | 0.074 | Sand -2
Slime -0.1 | Sand -2
Slime -0.074 | Sand -2
Slime -0.074 |
| Capacity (t/h) | 1-1.8 | 0.5-1 | 0.3-0.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
| Feeding density (%) | 20-30 | 18-25 | 15-20 | 10-30 |
| Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 |
| Frequency of stroke (r/min) | 220 | 250 | 280 | 210-320 | 250-450 | 280-460 |
| Water consumption (t/h) | 0.7-1 | 0.4-0.7 | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 |
| Groove shape of deck | Rectangular | Saw-tooth | Triangle | Available Rectangular, Saw-tooth, Triangle |
| Power (Kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 |
Why choose our company machine?
1. We are factory (NOT Dealer)
All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make
Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2. We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
4. If you are new for this business, I will help you
Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on
5. We will recommend a suitable type for you and send you a best quotation
Our Services
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
If you are interested in our products, Please through below method contact us, or welcome come to our factory visit!
Mobile: 183-7987-3189
Contact person: Mily
Telephone:0086-0797-5791500
Jiangxi Gandong Mining Equipment Machinery Manufacturer is a large beneficiation service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of beneficiation, now our factory is the largest manufacturer and supplier of gravity mining equipment in China. Our factory has 12 years experience in mining equipment manufacturing, two special factories directly under the factory specialized in the manufacture of mining equipment and the manufacture of crusher and grinder. Our company covers an area of about 20, 000 square meters and with various large modernized machinery process facilities, professional mechanical and manufacturing engineers, professional mining engineers, as well as professional installation team.
Our factory has been adhering to the "honesty and realistic, quality first, technological innovation" business philosophy, successfully achieved ISO9001: 2008 Quality Management System Certificate, meanwhile cooperated with SGS and obtained SGS Audited Supplier Certificate. In addition, our factory obtained certificate of "Following Contract and Observing Credit" AA level Enterprise from Ganzhou city Administration Bureau for Industry and Commerce, and we signed an agreement of technical cooperation and product development with Jiangxi University of Science and Technology which is known as the "the cradle of nonferrous metallurgical expert", and established "East China Mining Equipment Technology Research & Development Center" and "Jiangxi Shicheng Mining Equipment Technology Research & Development Center" in our factory.
Because of excellent performance of our products and professional after-sale service, our gravity mining machine, flotation machine, classification machine, screening machine are known both at home and abroad, which gravity mining machine has a 35% market share in China. Meanwhile, we adhere to international development strategies, according to the market demand and the superiority of our products, continuously to strengthen up development of international market. Now our products have been exported to over 40 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, SouthAfrica, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, NorthKorea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
