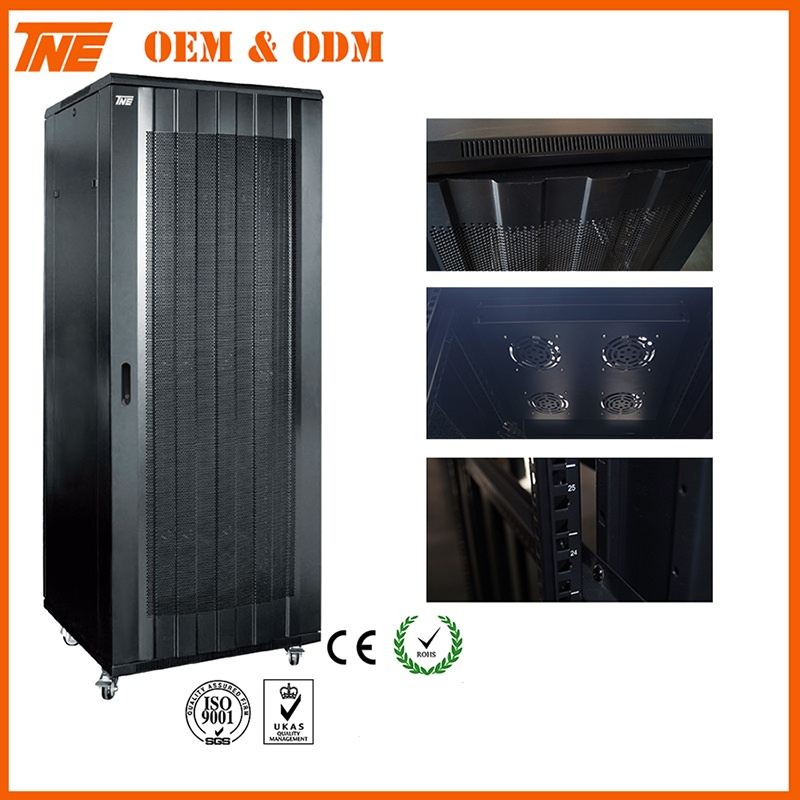

Server Rack Cabinet for Telecommunication Equipment (TN-001)

Prod Model:	TN-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral7035, Ral9004, etc
Logo:	Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style:	Assembled or Dis-Assembled
Shipping:	Sea, Air, Train, Truck
Material:	SPCC Cold Rolled Steel
Certificate:	CE. RoHS
Type:	Server Cabinet
Usage:	Network Integration System
Certification:	GS
Condition:	New
Installation:	Heavy Duty

Product Description

Model No. TN-001 Data Racks for Telecommunication Equipments
*Exquisite design with precise dimension and craftsmanship;
*High-density ARC vented front single &rear dual doors, Lockable door and side panels for system security;
*Fully adjustable vertical mounting rails;
*Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load;
*Lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 800kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection
IP20
Body Color:
RAL7035, RAL9004 etc.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...
