Semi Curved Glass Horizontal Ice-Cream Display Cabinet with 20 Pans
Price: |
US $ 1765-3260/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
WBQ-20 |
Temperature: |
-18~-22 Degree |
Climate Type: |
N-St |
Refrigerant: |
R404A |
Application: |
Supermarket/Store |
Usage: |
Ice Cream/Quick Freeze Food etc |
Color: |
Black/Grey/White/Red/Green/Blue etc |
Capacity: |
>501L |
Door Type: |
Sliding Door |
Power Source: |
Electricity |
Temperature Control: |
Mechanical Thermostat |
Temperature Type: |
Single-temperature |
Defrost Type: |
Auto Defrost |
Function: |
Freezing |
Certification: |
CCC |
Door Number: |
Sliding Door |
Type: |
Display Freezer |
Product Description

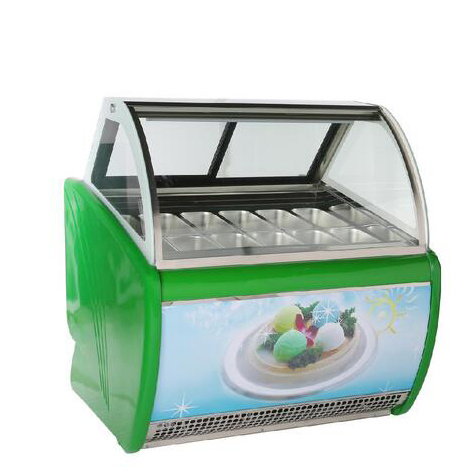

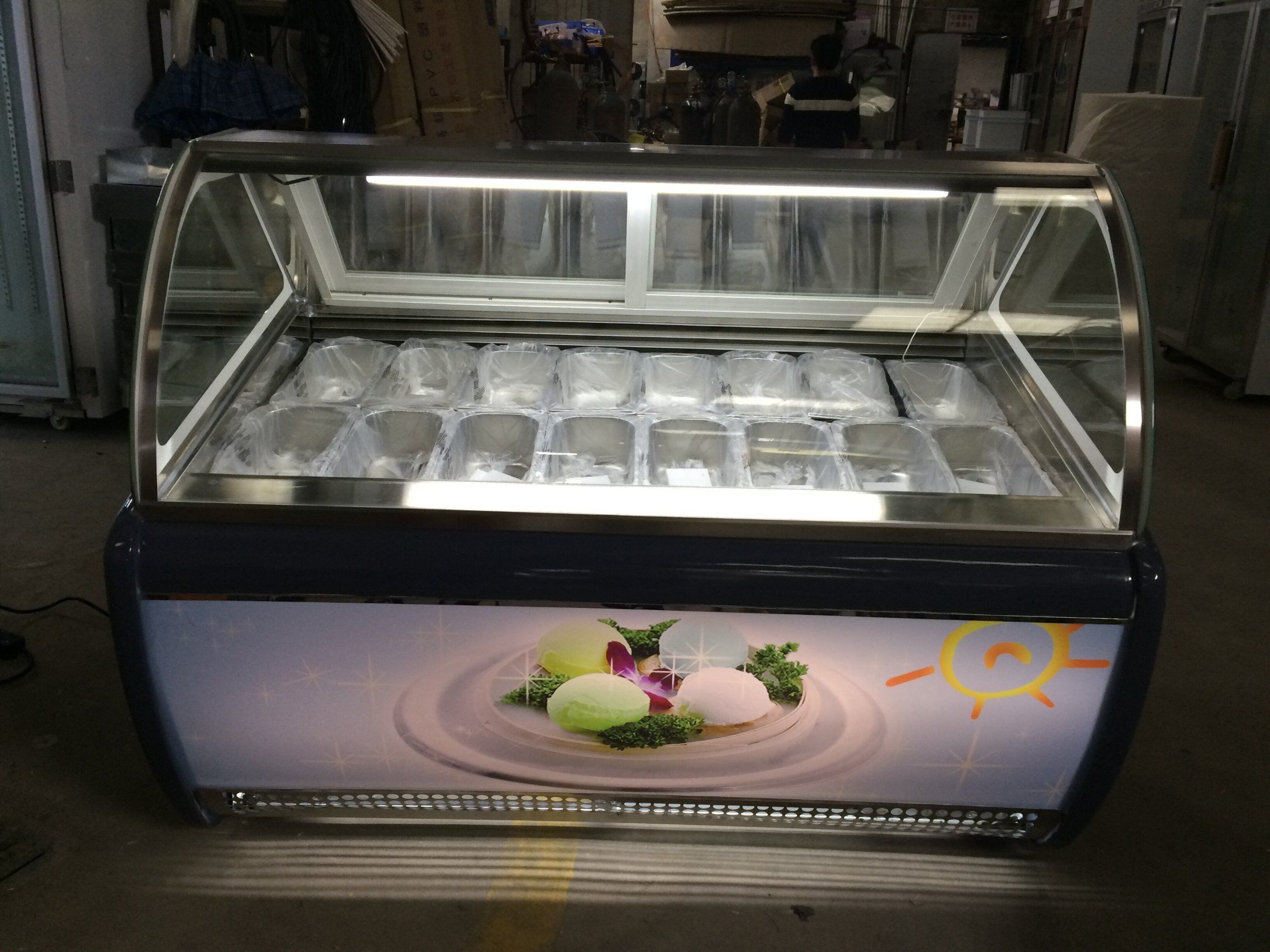

Semi Curved Glass Horizontal Ice-Cream Display Cabinet with 20 Pans
Main Features:
1) Imported famous compressor Danfoss or Tecumseh, Accurate refrigeration.
2) Fast Freezing Features.
3) Digital temperature controller ensure better temperature control and saving energy.
4) Fully spread air flow,Better refrigeration effect no pollution.
5) The front glass is Two layers hollow with heater no mist in humid weather, and auto defrost. Product Application:
This freezer is mainly used in supermarkets, convenience stores, restaurants, coffee shop, bakery shop, catering etc. And for frozen food,
such as ice cream, gelato, ice cream cake, frozen food and so on that's to maintain a fresh state.
Specification of Different Capacity Ice Cream Display Freezer: 10 pans Ice Cream Display Freezer |
Model | WBQ-10 | Compressor | Danfoss |
Dimension | 1030*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 850W | Volume | 500L |
12 pans Ice Cream Display Freezer |
Model | WBQ-12 | Compressor | Danfoss |
Dimension | 1190*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 1250W | Volume | 600L |
14 pans Ice Cream Display Freezer |
Model | WBQ-14 | Compressor | Danfoss |
Dimension | 1380*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 1450W | Volume | 800L |
16 pans Ice Cream Display Freezer |
Model | WBQ-16 | Compressor | Tecumseh |
Dimension | 1550*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 1650W | Volume | 1000L |
18 pans Ice Cream Display Freezer |
Model | WBQ-18 | Compressor | Tecumseh |
Dimension | 1730*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 1850W | Volume | 1200L |
20 pans Ice Cream Display Freezer |
Model | WBQ-20 | Compressor | Tecumseh |
Dimension | 1890*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 2050W | Volume | 1400L |
22 pans Ice Cream Display Freezer |
Model | WBQ-22 | Compressor | Tecumseh |
Dimension | 1956*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 2255W | Volume | 1600L |
24 pans Ice Cream Display Freezer |
Model | WBQ-24 | Compressor | Tecumseh |
Dimension | 2260*1130*1250mm | Refrigeration | R404a |
Temperature | -18~-22ºC | Model refrigeration | Fan cooling |
Power | 2555W | Volume | 1800L |

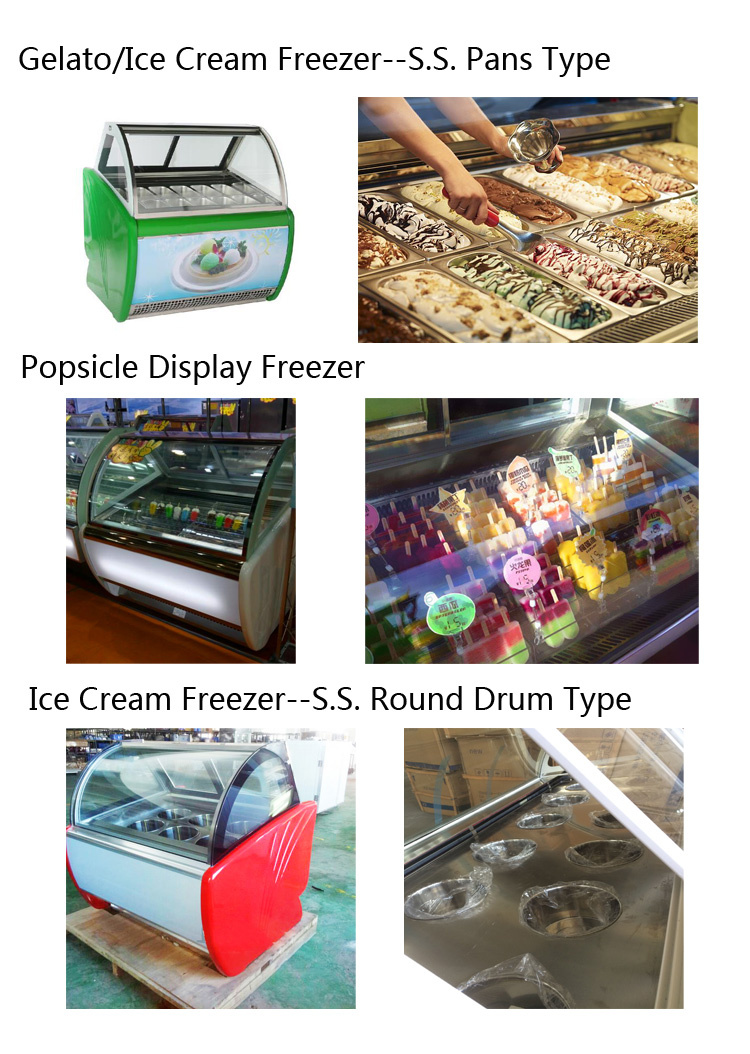

Ice Cream Freezer Models:
F A Q
*Q:Can I get samples from you?
A:We are honored to offer you samples for quality check.
*Q:What parts are manufactured by you?
A:80% of frame parts are manufactured by us. Engine parts are from China top 10 famous engine suppliers,the compressor is from Danmark,brand name is danfoss...
*Q:What's the leading time? (How long do you need to prepare my goods?)
A:15 days for sample orders. 25 days for mass production orders (based on different quantities)
*Q:How long do I need to wait before my goods arrive?
A:For example, full 40HQ for USA,need around 30days.
*Q:Can you put my brand name (logo) on these products?
A: Yes, can send your logo CDR for us,we can make and paste on the product.
*Q:What payment methods do you accept?
A:T/T, L/C, Western Union...
*Q:What certificates do you have?
A:Since Europe,Oceania and north Ameria are our main markets, all of our products are with EEC,RoHS. The factory with CCC,ISO certificate. For other certificate, we can assistance to make it if you need. Like SASO...
*Q:What is your product quality?
A:Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality. We always care what you care!!
*Q:What is your warranty?
A:Our warranty is 12months after delivery. We always pay high attention to after sale service!! For those out of warranty, we have adequate parts.
*Q:How we stallation the big machine if we don't have the technical?
A:Our engineer team can travel over sea for installation. Only need you pay for the accomnodation, arrange the tickeks and working wage USD100 per day.
