Price: | US $ 4360-8850/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | DB2000 |
---|---|
Character: | with Sparkle Arrester |
Material: | Carbon Steel or SUS304 |
Application: | Cutting, Grinding, Welding, Polishing, Mixing |
Valve: | Australia Goyen |
Air Filter Cartridge: | Donaldson / BHA |
Air Volume: | 2000m3/H-10000m3/H |
Fan: | 5.5kw |
Motor: | Siemens |
Dust Remove Efficiency: | 99.99% |
Control Box: | Donaldson |
Product Description:
AUTOMATICALLY SELF-CLEANING FILTER CATRIDGE DOWNDRAFT TABLE Detail:
1). Pulse Jet Reverse Cleaning
2).ISO 9001:2008 Certificate
3). Tight and neat structure with smaller occupied areas in efforts to provide more workbench.
4). The filter cartridge with long service life, stable performance and is easy to replace.
5). Customization is available; we can supply the non-standard products according to user's actual needs.
We provide a series of turnkey project including design, manufacture, installation, commissioning and after-sales services according to on-site status.
Erhuan Downdraft Table Model Choosing:
NO. | Description | Technical Data |
1 | Model No. | DB2000 |
2 | Air volume | 1500-2000m³/h |
3 | Filter Area | 47 |
4 | Filter Cartridge | Donaldson / BHA Flam Retartant antistatic |
5 | Wind load rating | 1.7m/min |
6 | Filter material | Flam Retartant antistatic filter cartridge |
7 | Filter Qty | 2pcs |
8 | Goyen Pulse valve | 2pcs |
9 | Goyen Pulse valve head | 2 |
10 | inlet concentration | less than 50g/m³ |
11 | Efficiency | 99.999% against 0.2μm |
13 | Cleaning way | Compressed air reverse pulse jet |
14 | Occupy area |
|
15 | G.W | 300kg |
16 | Fan | 1.5kW,380/50/3 Explosion-Proof Motor |
17 | Configuration instructions |
|

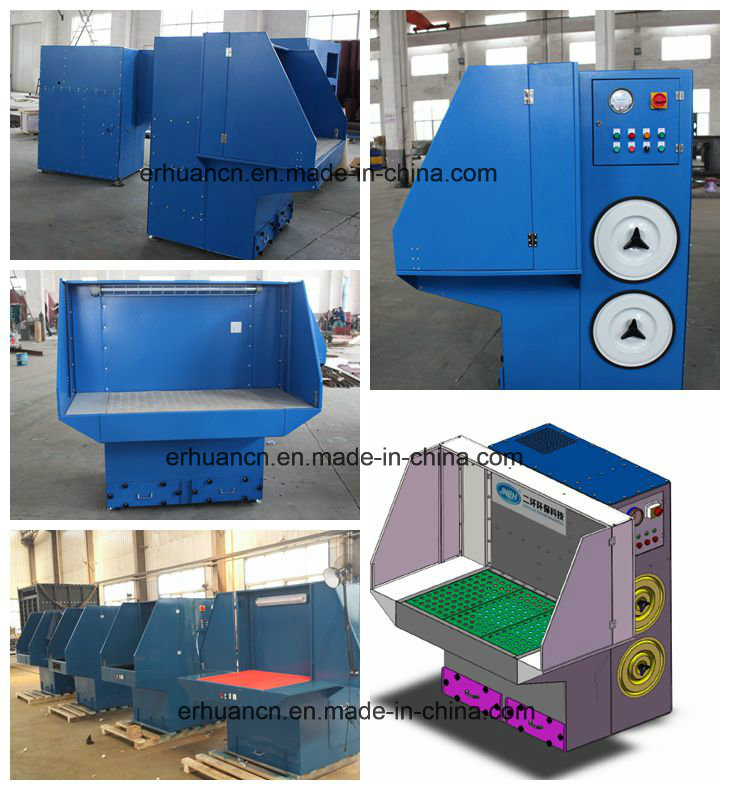

Downdraft Table photos:

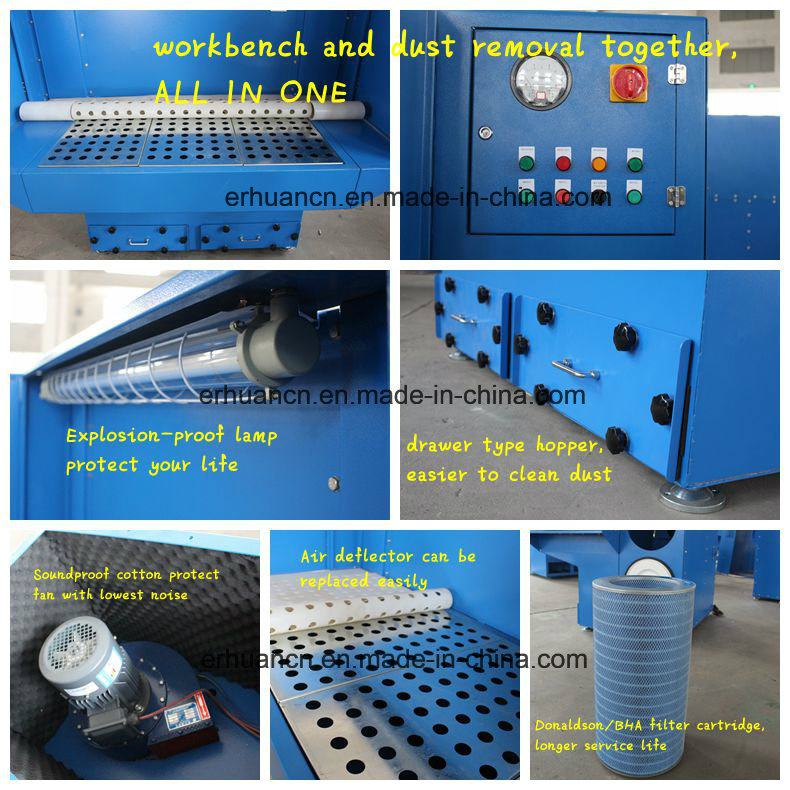

Downdraft Table Characters:

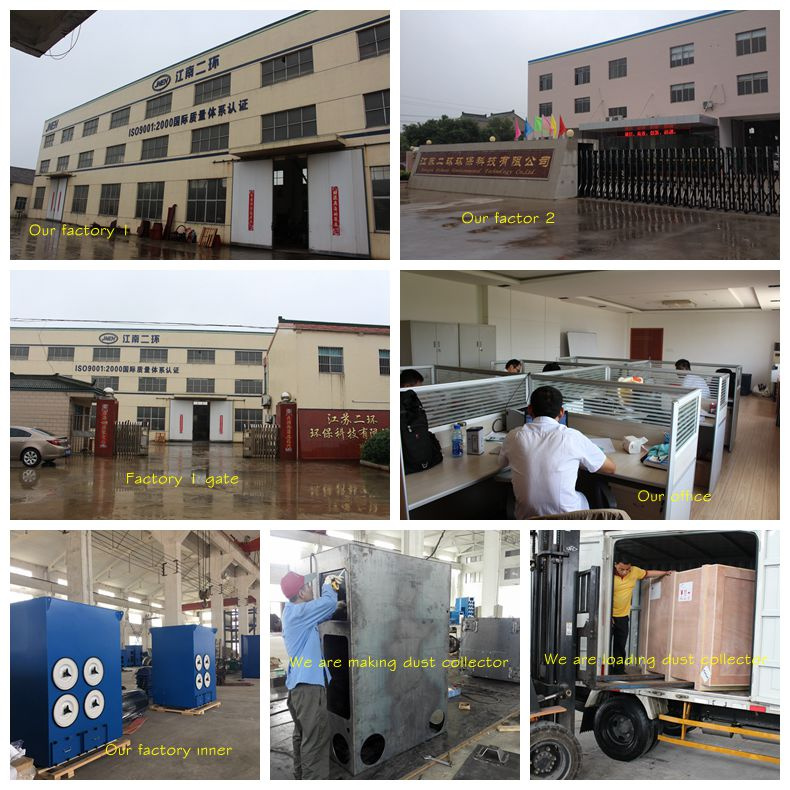

Our downdraft bench processing factory:
We are on Exhibitions:

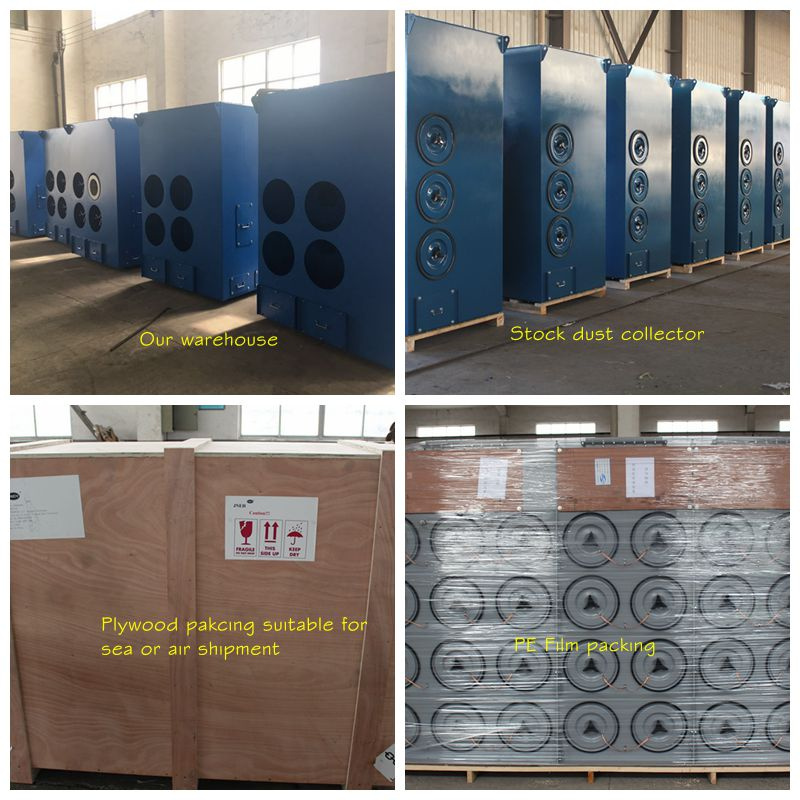

We have enough stock to meet your urgent request:
For Shipping:
all our dust collectors are model design, block assembly, easy for domestic shipping and long distance sea shipment,
also accept air shipment from Shanghai,
fast installtion after arriving your factory,
fast delivery after order,
