| Prod Model: |
GT-318 |
| Use: |
for Sauna |
| Color: |
Black Body |
| Accessory: |
Metal Reflector |
| Application: |
Heater |
| Structure Material: |
Ceramic |
| Heat Transfer Surface: |
Tubular Heat Exchanger |
| Principle: |
Mixing Heat Exchanger |
Product Description

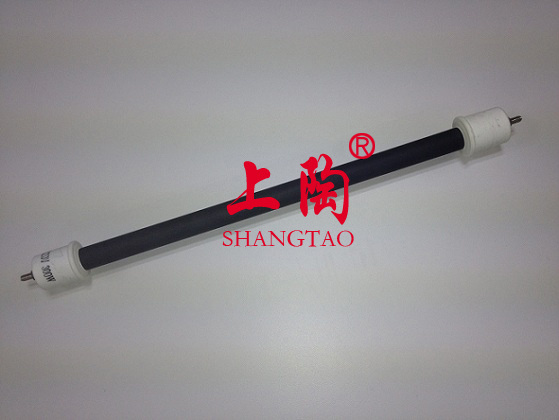

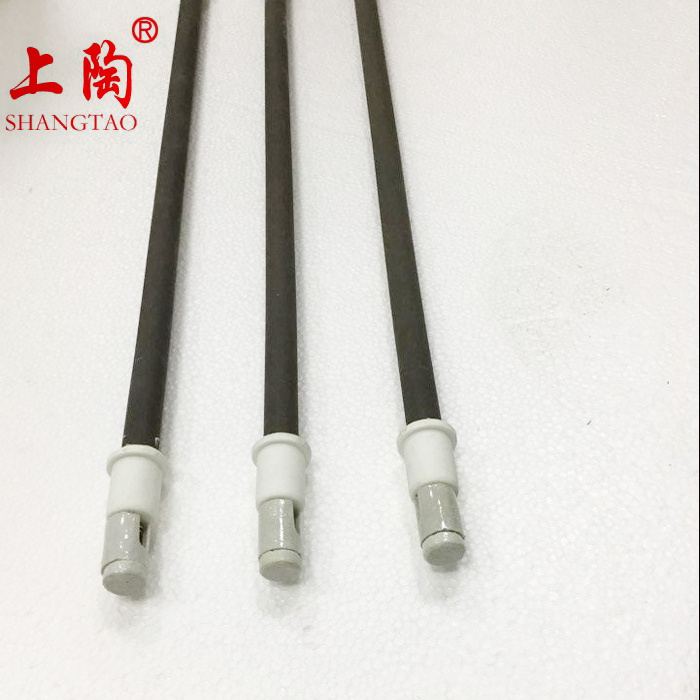

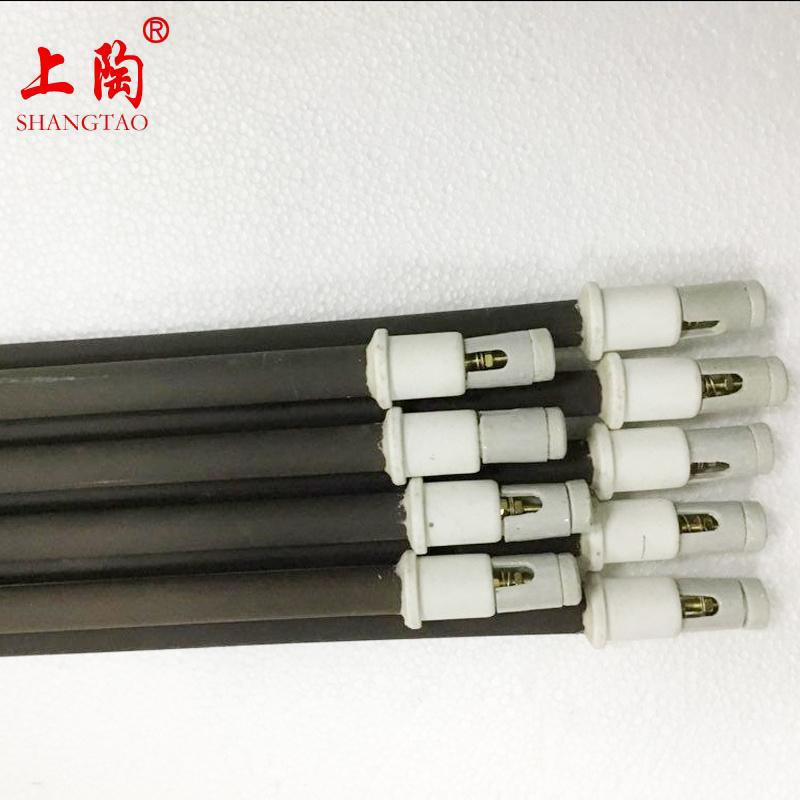

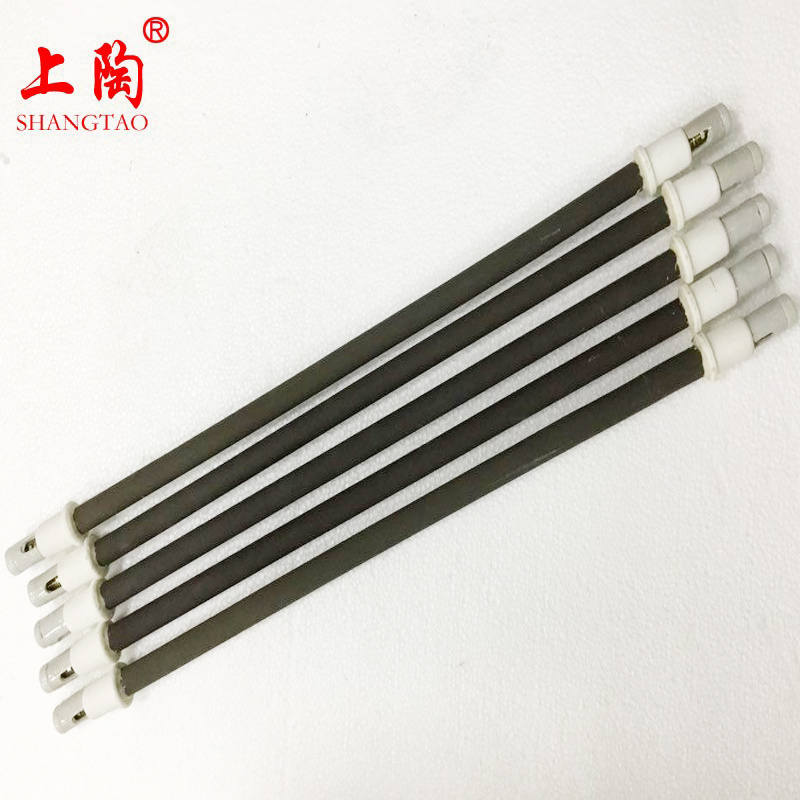

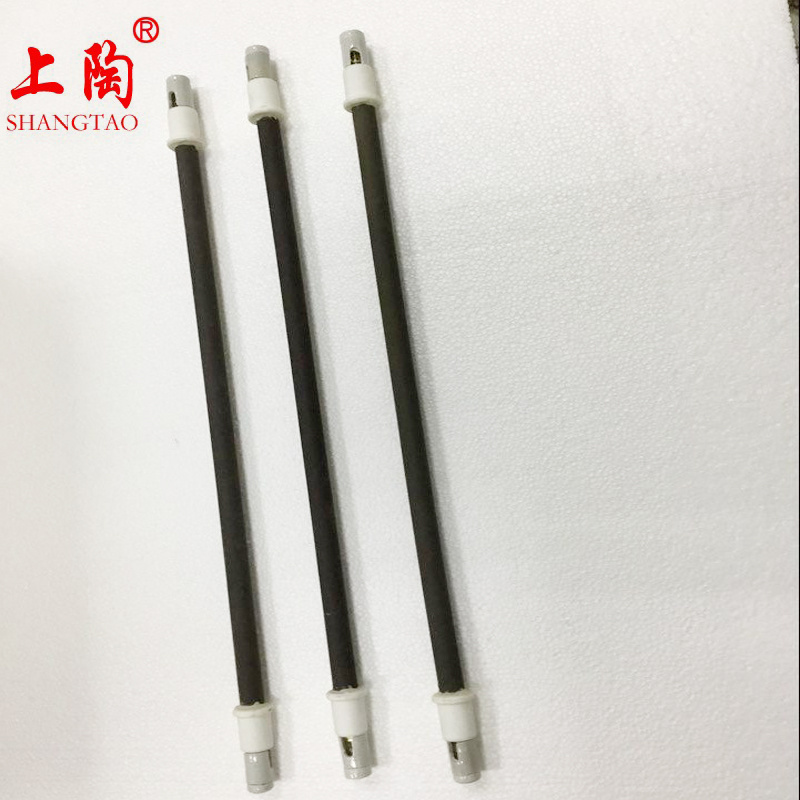

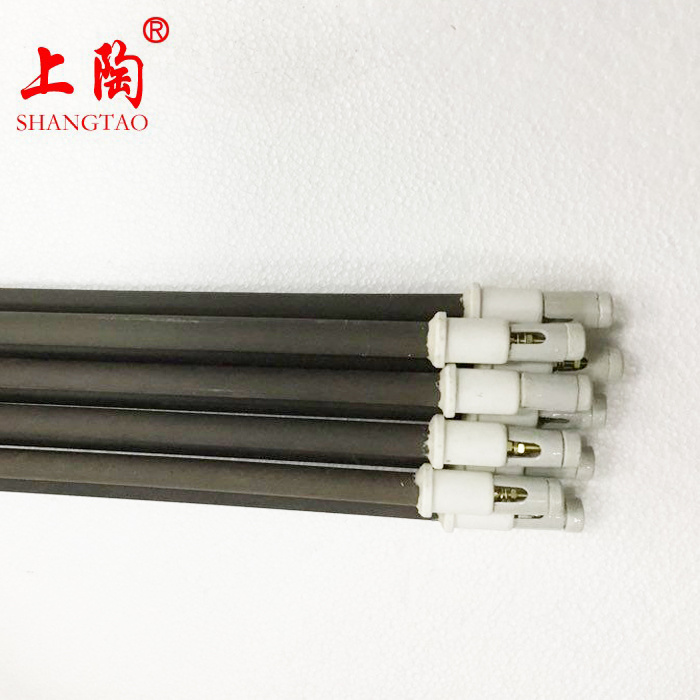

Introduction of infrared black ceramic heater tube
It is one of most speedy heating elements with most advanced heating and drying technique. At present, we can produce infrared tube with diameter of tube 12mm, 14mm, 17mm, 20mm. The overall length, power and voltage can be customized according to the customers'requirement.
Property of infrared black ceramic heater tube:
This tube is made of carborundum, when connected to electric current, heat energy permeate through the tube, then radiate infrared with wavelength of 3 μ ~ 50 μ ., which the quartz tube, infrared bulb ect can not get.
Purpose:
Dryness: Drying for leather, lumber, metal, plywood, fibre, paint, ceramic glaze, printing, ect.
Baking finish: Car bodywork, motorcycle, bike ect.
Heating: Plastic, PS, ABS molding and induration machining warm-up
Sterilization: Disinfection for food, packing container, bite and sup instrument, medical instrument
Heat preservation/dehumidify
Other use.
Advantage:
Its heat treatment is quicked than common method by 1~10 times, which greatly shorten time of heating up.
Save electric power about 30 %~ 50
Cubage of equipment can reduce more than a half
Naked fire can not produce. High security, wear well.
Maintenance and exchange is easy.
Without dustor or bad gas
Easy operation and autocontrol
Low cost, high efficiency
Dimension (mm) |
Voltage (can be fixed by yourself) |
Diameter of tube |
12(φ) |
14(φ) |
17(φ) |
20(φ) |
316 |
200 |
200 (W) |
300 (W) |
400 (W) |
450 (W) |
416 |
300 |
300 (W) |
450 (W) |
550 (W) |
600 (W) |
516 |
400 |
400 (W) |
600 (W) |
700 (W) |
800 (W) |
616 |
500 |
|
750 (W) |
850 (W) |
1000 (W) |
716 |
600 |
|
850 (W) |
1000 (W) |
1200 (W) |
916 |
800 |
|
1100 (W) |
1300 (W) |
1500 (W) |
1116 |
1000 |
|
|
1700 (W) |
1900 (W) |
1316 |
1200 |
|
|
2000 (W) |
2300 (W) |
1616 |
1500 |
|
|
|
2800 (W) |
1916 |
1800 |
|
|
|
3300 (W) |
