| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | SLCG-E003 |
|---|---|
| Item No.: | Slcg-E003 |
| Insulation Degree: | Class III |
| Working Temperature: | -25~+50 |
| Liftetime: | 30000h |
| CRI: | 70-90 |
| Flux: | 72-103lm |
| LED Qty: | 1PC |
| Emitting Color: | Warm White |
| Installation Mode: | Recessed In |
| Shade Direction: | Up & Down |
| Certification: | CE |
| Power: | 1W |
| Color Temperature: | 2700-6500K |
| IP Rating: | IP20 |
| Input Voltage: | DC2-4V 350mA |
| Shade Type: | Aluminium Alloy |
| LED Chips Brand: | CREE |
Product Parameters

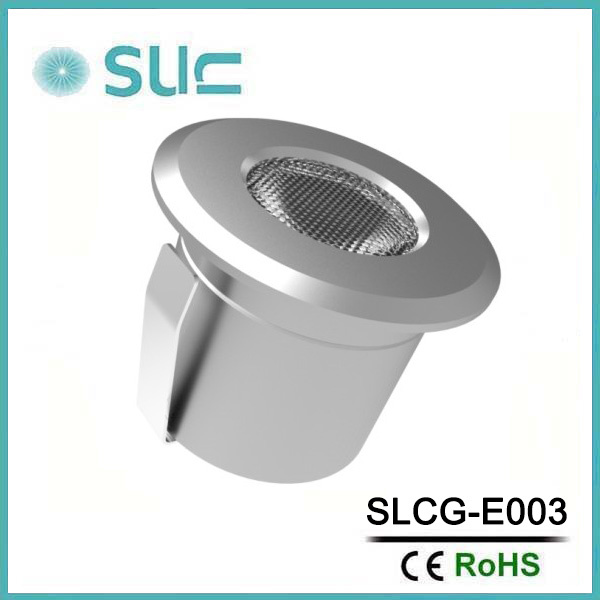

| Description: | SUC LED Cabinet Light |
| Item: | SLCG-E003 |
| Rated Voltage and Current: | DC2~4V, 350mA |
| Material: | Aluminum alloy |
| Rated Power: | 1W |
| Luminous Flux: | 72~103LM |
| CRI: | Ra>80 |
| CCT: | 2700~6500K |
| Beam Angle: | 10°, 15°, 45° |
| Lifespan: | 30000h |
| Working Temperature: | -20~50ºC |
| Lamp Dimension: | ¢26*24mm |
| Hole Diameter: | ¢23mm |
| Net Weight: | 16g |
| White Box: | 6.5x5.5x5.5cm |
| Carton Box: | 35x35x31cm(125pcs) |

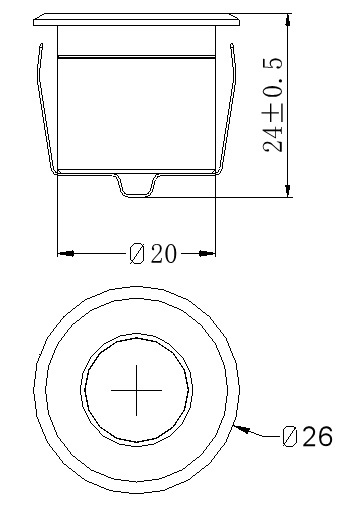

Dimension Drawing(mm)
Feature
1). Low thermal radiation, high CRI, uniform light color, bright and vivid color.
2). Keep textile fabrics luster and avoid plastic embrittlement(UV).
3). Color constancy in whole useful service-life, not sensitive to temperature changes.
4). Adopt imported optical-grade PMMA efficient lens, low decay, high brightness, adjustable beam angle, avoid the light dazzling cause by excessive brightness.
Applications
1. Cabinet and Showcase Lighting: Jewelry, Ornament, Cosmetic,Wine, watch shop, mobile phone shop, professional showcase, etc
2. Furniture lighting
3. Other commercial lighting in the market sna stores
4. Daily room lighting
5. Other suitable application
Company Profile
Ningbo SUC Light & Power technology Co., Ltd was founded in 2004, located in Wangchun Industrial Zone, Ningbo, China. The registered capital is RMB10.27 million. SUC is specializing in researching, developing, producing and selling high power LED lighting products. The main product range is LED wall washer, Spot light, Down light, LED bulb, Grow light. In 2008, SUC has became one member of high-tech enterprise in Ningbo. In 2010, SUC became the authorized LED lighting supplier for Shanghai World Expo. In 2016, SUC was awarded the G20 summit lighting construction contribution. Production is running below the standard of ISO9001:2000. Until now, we have registered 9 trademarks and more than 70 patents. The company has perfect quality assurance system and advanced testing equipment, professional R&D and production teams. Products are exported to Southeast Asia, Europe, the United States, Africa and other countries.
Our Service
A. Replying you in 24 hours;
B. Keeping all of your private information in secret;
C. Feedback you with our professional knowledge and related reports;
D. Customized required designs and our own products;
Warranty
3 years from the date of B/L.
Factory, R&D
1). Supply ability: 1,500,000pcs/ month
2). Lead time: Within 30 days after received the deposit
3). R&D ability: Cooperating with universities and research institutes
