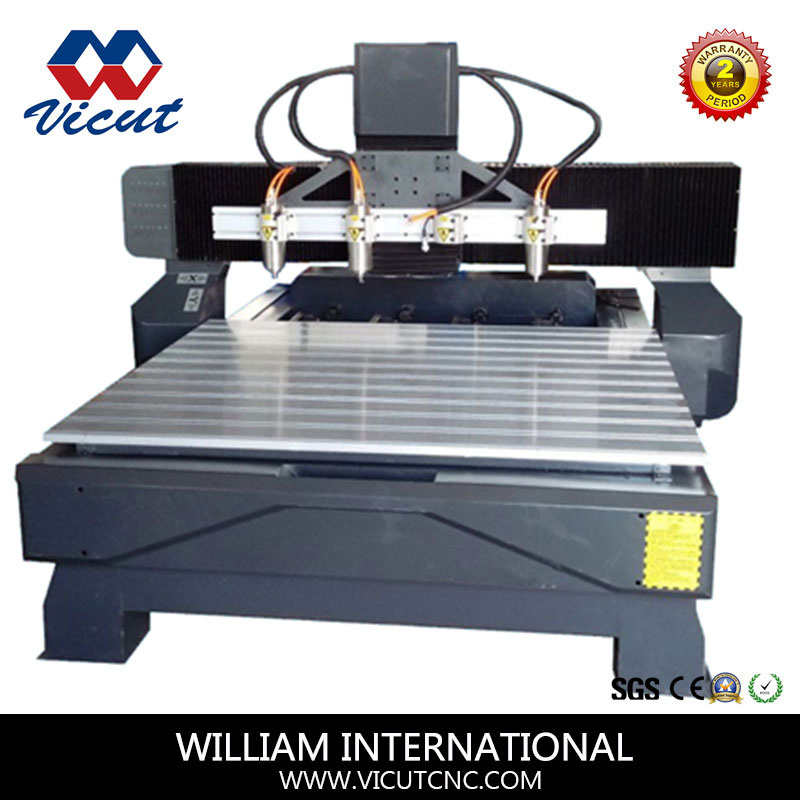

Rotary 2.2kw Wood CNC Router Machine (VCT-1518FR-4H)

Rotary 2.2kw Wood CNC Router Machine (VCT-1518FR-4H)
Price: US $ 8500-13500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: VCT-1518FR-4H
Working Size: 1500*1800*200mm (4.92'*5.90'*0.66')
Net Weight: 800kgs
Max Speed: 12000mm/Min
Resolution: <0.03/300mm
Spindle Power: Water Cooling 2.2kw
Spindle Rotation: 6000~24000rpm
Controller: 4 Axis Nc Studio Controller with Handle Wheel( Use
Xyz Transmission: Xz Tbi Ball Screw, Y Gear Rack
Drive System: Stepper Motor
File Format: G Code or Hpgl
Spindle Layout: Spindle Over
Feed Mode: Manual
Controlling Mode: CNC
Certification: CE
Spindle Number: 4 Spindle

Product Description

2D/3D Flat & Rotary CNC Carving Router

Features:
1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.
2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.
3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
5. Big size with more heads (up to 16 heads) can be customized.

Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.

Technical Parameters:
ModelVCT-1518FR-4HVCT-1525FR-6HVCT-2225FR-8HVCT-3230FR-2Z-10H
Dimension 2000×2200mm (6.6'x7.2')2000×2900mm (6.6'x9.5')2700×2900mm (8.9'x9.5')3700×3400mm
 (12.1'x11.1')
2D Working Size1500×1800×200mm
(4.92'x5.90'x0.66')
1500×2500×200mm
(4.92'x8.20'x0.66')
2200×2500×200mm
(7.2'x8.20'x0.66')
3200 x3000×20 mm
(10.5' x 9.8' x 0.66')
3D Rotary Working Size(L*D)1500 x 250mm2000 x 250mm2000 x 250mm2000 x 250 mm
Spindle  PowerWater cooling  2.2kwWater cooling  2.2kwWater cooling  2.2kwWater cooling  2.2kw
No. Of Rotary4 PCS6 PCS8 PCS10 PCS
No. Of Motors & Drivers8pcs stepper motors (servo is optional)10pcs stepper motors (servo is optional)6pcs Panasonic/Schneider Servo Motors7pcs Panasonic /Schneider Servo Motors
Air Cylinder SupportYes (300MM long air cylinder)
Oil Lubrication systemYes
Tool Diameter4,6, 8, 12mm
Body StructureHeavy-duty steel tube welding
XYZ TransmissionXZ TBI ball screw, Y gear rack
Guiding Rails  XYZ PMI or HIWIN linear square rails
Reposition Accuracy<0.03/300mm
Max Engraving Speed12000mm /m15000mm /m
Spindle Speed6000~24000rpm
Controller4 axis NC Studio controller with handle wheeluse computer to control the machine)
Format of instructionsG code or HPGL
Voltage380V/60Hz or 220V/50HZ
Weight800KG1500KG2500KG3000KG
Packing size1485x 1950x1750mm ( 5CBM)1900×2200×2200mm(9.2CBM)3000×2200×2200mm(15CBM)4200x2200x2200mm (21CBM)


Our Value and Obligation:
1) Do business with integrity. No cheating and deception.
2) We are committed to offer high quality products.
3) We are committed to provide professional and efficient premium services.
4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.
5) If you are the end user, we will help you choose the right products and offer life-time technical support.


Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.


Warranty:
1.Two years warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; VICUT will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.If any part damaged is not in warranty period, VICUT will repair it for free.
4.Customer has to pay the International Express cost.
5.Warranty time starts after goods arrival in customer's location.



After-sale Service:
1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, or team-view, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 80USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sale service technician, make sure our service more and more better.


Company Introdution:
 WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, label cutter, flatbed cutter, Laser marking machine and cutting plotter, having its own manufacturing base and official license for export & import business.
Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.


Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.

Contact us:

If you want to get more information, please feel free to contact us.

Contact person:  Cherry Bao
Cell :  +86 18356087965



CNC Engraving and Cutting Solution Provider

WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.

With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.

Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.

Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.

Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.

Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
