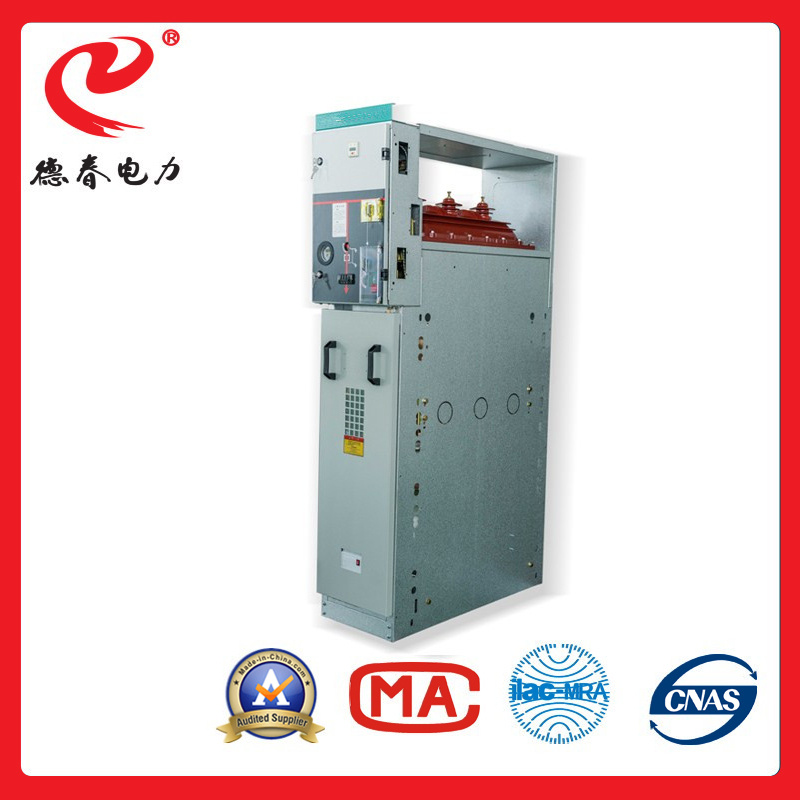

Ring Main Unit (XGN15-12 SF6) Power Supply Power Distribution Cabinet
| Price: |
US $ 500-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Altitude: |
<=2000m |
| Ambient Temperature: |
-35c-+40c |
| Seismic Capacity: |
8 Degree |
Product Description
XGN15-12/24 AC Metal Enclosed Switchgear
Product description:| ITEM | UNIT | XGN15-12(F)/630-20 | XGN15-12(F.R)/T125-31.5 |
| Rated voltage | KV | 12 | 12 |
| Rated current | A | 630 | 125 |
| Rated frequency | Hz | 50 | 50 |
| Rated frequence withstand voltage | KV | 42/48 | 42/48 |
| Rated impulse withstand voltage | KV | 75/85 | 75/85 |
| Rated mainly acnive load breaking current | A | 630 | |
| Rated closed-loop distribution circuit current | A | 630 | |
| Rated short-circuit making current(peak) | KA | 50 | 80 |
| Rated peak withstand current | KA | 50 | 50 |
| Rated short-time withstand current | KA | 20 | 20 |
| Rated duration of short circuit load break switch | S | 4 | 4 |
| Rated SF6 gas pressure(20ºC gauge) | MPa | 0.04 | 0.04 |
| Loop resistance | μΩ | <=200 | <=400 |
| Mechanical endurance load break switch/earthing switch | KA | 5000/3000 | 5000/3000 |
| Rated short-circuit breaking current | KA | 20/50 | 31.5/50 |
| Rated transfer current | A | | 1750 |
| Degree of protection | | IP4X | IP4X |
XGN type is the newest AC metal enclosed HV ring main unit with theSF6, which is suitable for distribution automation, compact and extensible , simple structure, flexible operation, reliable interlocking, and modular design to realize any combination, meet all kinds of connection mode.Features:The device has the advantages of simple structure,flexible operation, reliable interlocking, convenient installation, etc.Compact structure, small size, easy to install;Modular design, flexible expansion;Smart grid compatible, optional automation terminal, to meet therequirements of smart grid upgrade. Applicable conditions:Altitude:≤2000mAmbient temperature:-35ºC~+40ºCRelative humidity:Daily average≤95%Monthly average≤90%Seismic capacity:8 degrees| Altitude | ≤2000m |
| Ambienttemperature | -35ºC-+40ºC |
| Seismic Capacity | 8 degree |

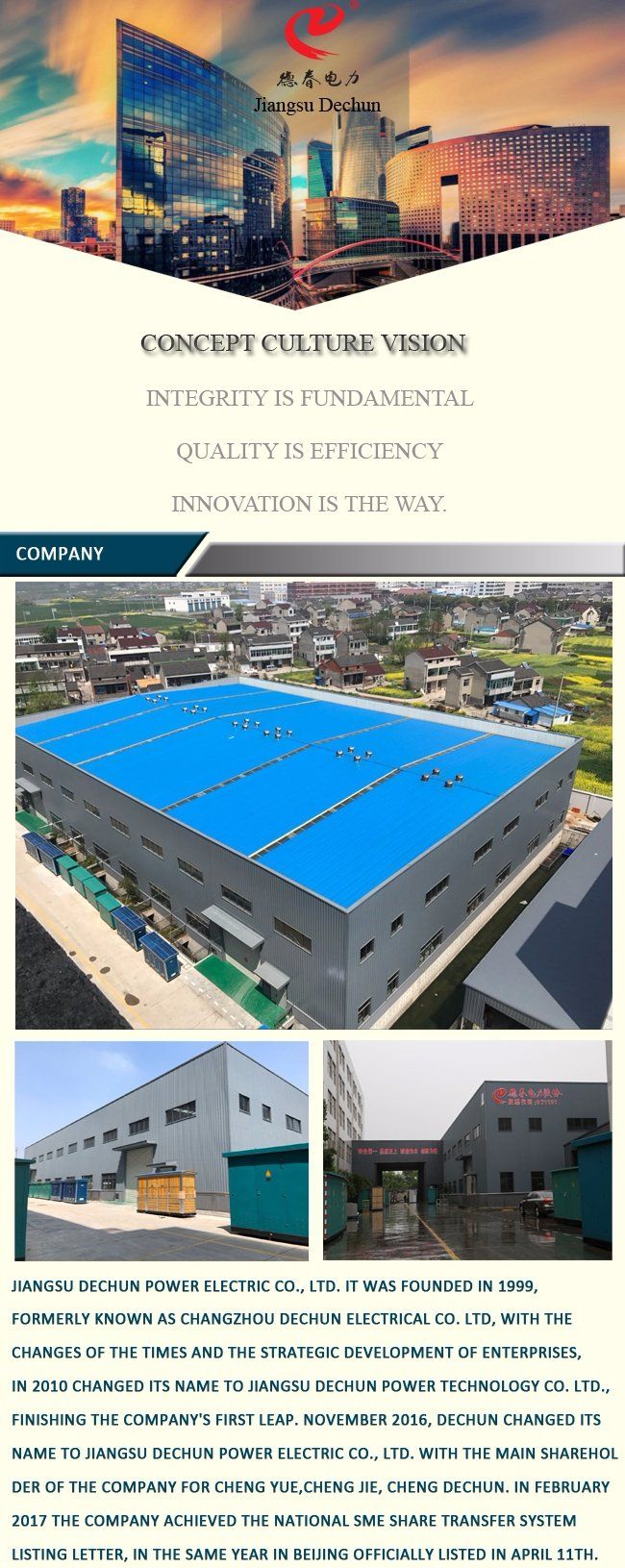

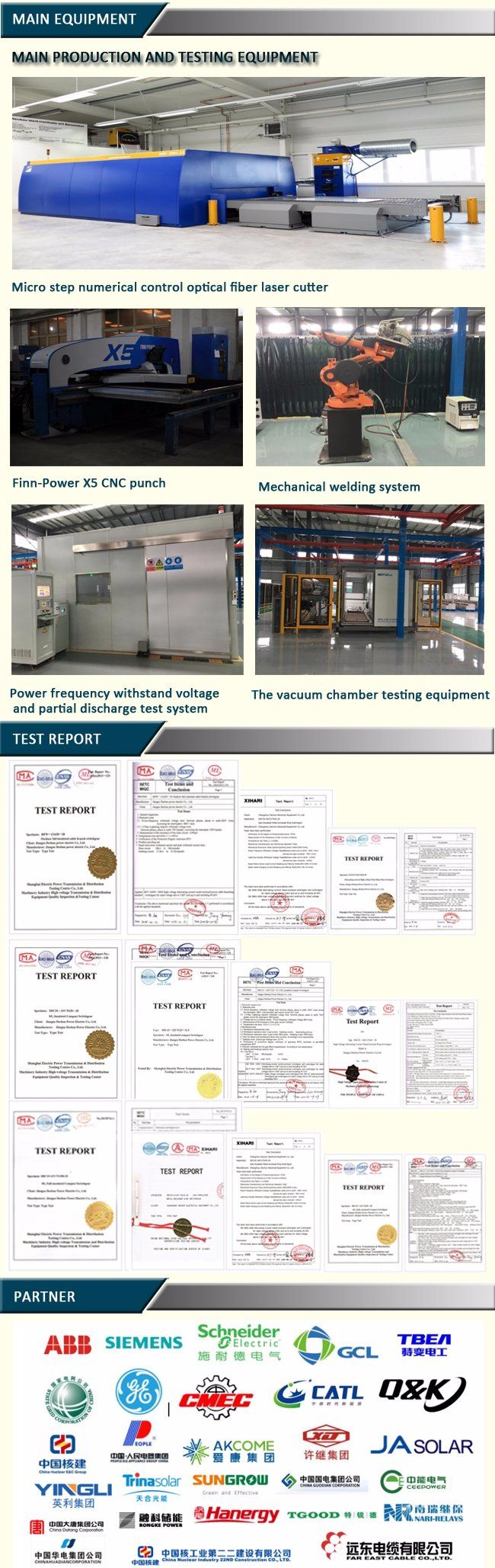

Jiangsu Dechun Power Electric Co., Ltd is located in Menghe Fumin Industrial Park, Xinbei District, Changzhou, Jiangsu Province. It founded in 1999 and covers an area of 50 acres. It built with modern standards for the delivery room 56, 000 square meters and a total investment of 200 million yuan with more than 300 employees. Dechun is one of the domestic key enterprise which researches products such as sulfur hexafluoride load switch, vacuum load switch, sulfur hexafluoride ring network cabinet, cabinets and so on. Dechun has improved production equipment, complete testing equipment and applicable to the product technology standard and tooling facilities.
Since its inception, the company has been adhering to the "integrity is fundamental, quality is the efficiency, innovation is the way, " the guiding ideology, constantly optimizes the quality of management. It has always been to new high-tech products as a guide, develops new products, creates a new brand, and constantly improves the technological content and market share. Under the support, as always, from all sections of the community and all the joint efforts of everyone in the company, Dechun was identified as "key national high-tech enterprise", "high-tech enterprises in Jiangsu Province", "private technology enterprises in Jiangsu Province ", "high-tech SMEs in Jiangsu ", "Credit management standard enterprise of Jiangsu Province " and other honors. It also accessed to hundreds of town, district, municipal, provincial and national awards. At the same time, it has passed National safety production standard (grade 2), ISO9001: 2008 quality management system certification and CCC authentication.
