| Prod Model: |
BXC |
| Product Name: |
Remote Control Transfer Table with Lifting |
| Usage: |
Heavy Duty Material Transportation |
| Application: |
Steel Industry, Factory, Warehouse, Port |
| Brand: |
Perfect |
| Load Capacity: |
1-300 Ton |
| Special Function: |
Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Control Mode: |
Pendant/Remote/PLC Control |
| Power Mode: |
Battery |
| Color: |
Customzied |
| Material: |
Steel |
| Certification: |
ISO9000 |
| Condition: |
New |
| Fuel: |
Battery |
| Emission Standard: |
Battery |
Product Description

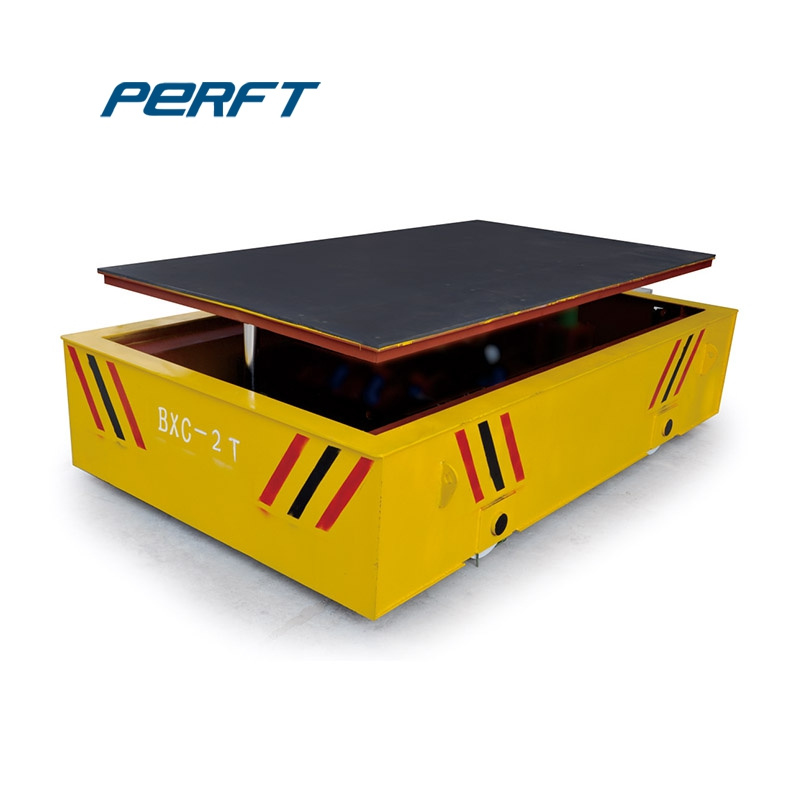

Remote Control Transfer Table with Lifting Function for Unloading Preview of Lifting Transfer Table
We offer a wide range of lifting transfer table specifically designed for the unique needs of both stamping and molding and transporting heavy die or mold from die storage to the press line. These transfer cart is widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.

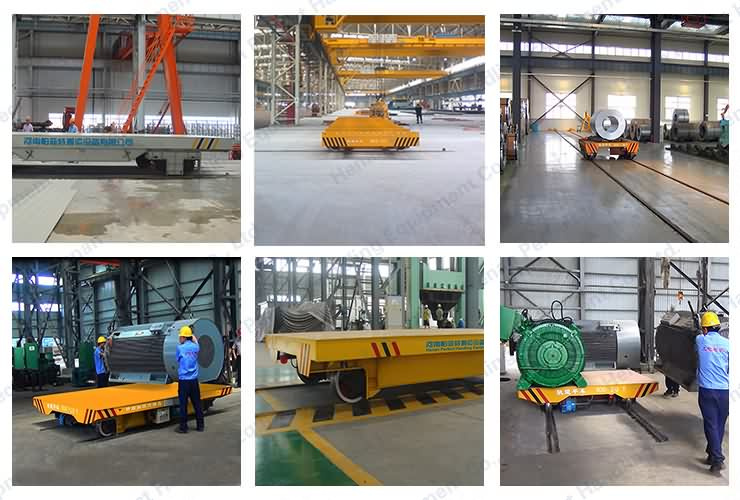

Application of Lifting Transfer Table

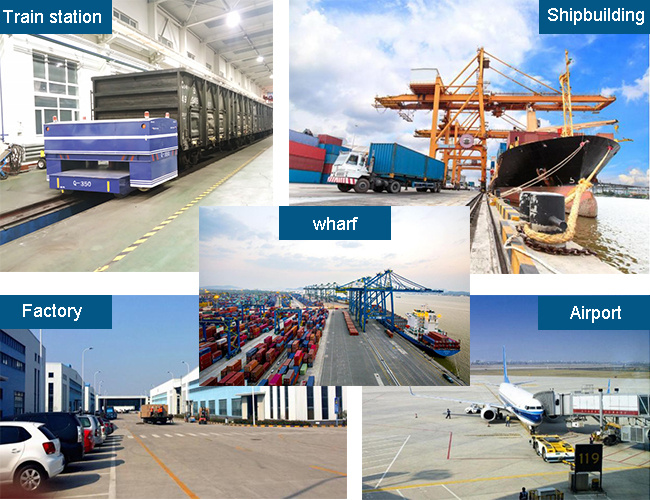

PERFECT heavy die transfer trailers are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Parameter of Lifting Transfer Table
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
Other products we offer
Welcome to Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement.
Our product includes Industrial Trailers, Transfer Cars, electric railway transfer trolley, Scissor Lift Tables, Turntables and many other specialty items.
Every product is designed to meet the specific requirements of each client. Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
We have designed transfer cars for all kind of industries. Our versatility to manufacture this vehicles is proven by our experience and adaptations can be made according to our clients' needs and with clear commitment to meet them.
We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
