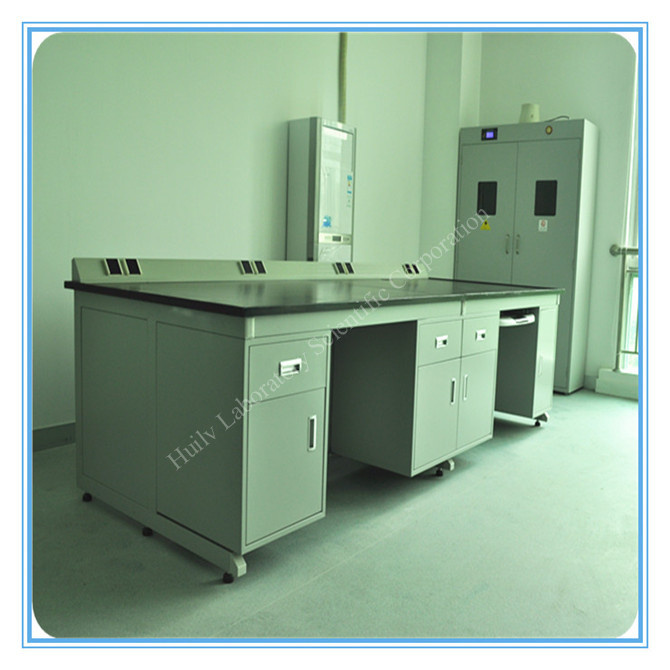

Reliable Quality All Steel Suspended Lab Bench Equipments (HL-QG-X026)

Prod Model:	HL-QG-X026
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Table Size:	Customized
Size:	Customized
Accessories:	Customized for Steerl Bench
Port:	Shenzhen, Guangzhou, Shanghai etc
Delivery:	7-10 Working Days
Quality Certificate:	ISO 9001/ISO 14001
Advantage:	Easy Operation
Certification:	SGS, ISO9001
Application:	Laboratory
Warranty:	3 Years
Material:	Optional
Type:	Lab Bench
Usage:	Laboratory
Color:	Optional

Product Description

All China lab furniture are customized. All steee structure laboratory furniture are customized.

1)Structures: Table one and table three are C frame steel structure, 60*40*2.0mm square steel tube sparying 75μ M epoxy resin power. The middle one is pesestal style.


2)Standard size: 3000*1500*850mm (we receive customized size. )


3)Worktop:

Optional one: 12.7mm/ 17mm / 19mm thick lab grade phenolic resin (black) countertops(double thickness to 25mm at the edge), most chemicals resistant. The acid - and alkali resistant, high temperature curing treatment, Abrasion, scratch and impact cutting resistant.

Optional two: 13mm / 16mm / 19mm thick Trespa(imported from the Netherlands) countertops, most chemicals resistant. The acid - and alkali resistant, high temperature curing treatment, Abrasion, scratch and impact cutting resistant.

Optional three: 15mm / 19mm / 25mm thick lab epoxy resin (made in China or DURCON or EPOXYN ) countertops, most chemicals resistant. The acid - and alkali resistant, high temperature curing treatment, Abrasion, scratch and impact cutting resistant.

4) Cabinets material: Made of 1.2mm cold rolled steel, all the steel parts by pickling, phosphating treatment surface by the epoxy resin power coating, high temperature curing treatment. The acid and alkali corrosion, abrasion, scratch and ompact cutting.

5) Reagent rack:

Table one: Epoxy coated Aluminum column, two layers of 12mm tempered glass. With two stainless steel guardrails at two sides.

Table two: Epoxy coated 60*30*2mm rectangular square steel column, adjustable, two layers of 12mm tempered glass laminates. Good weight support. With two stainless steel guardrails at two sides.

6) Aluminum Groove+ Electric Socket:
Aluminum Groove, special lab Multi Socket, Double Electric. International standard.

7) SINK + FAUCET:
Sink: High grade epoxy resin / high grade PP resistant to most chemicals, such as Aqua Regia. Matt finish on lip, resistant to scratch & consistent with most worktops'finish. General laboratory sink, can effectively prevent the most kinds of chemical acids and alkali corrosion resistance. Density of injection molding basin. Faucet: Solid brass; High gloss epoxy powder, resistant to most chemicals, UV fading & heat; 500000 life cycles, water static pressure Max. 20Bar; Laboratory dedicated copper main material, the epoxy resin coating.

All of our products are customized, please tell me the size, the style, the material, the accessories as you can. If not, just sent us the lab space or take photo about the room, we could design it for you too, and the desin is free. One more thing: Huilv is established about 17 years and we got CE and SGS successfully.


Product features

All steel structure
Worktops:	20mm thick ceramic (black) countertops (edge thickened around the sink countertops) or customized.
Cabinetbody:	1.0mm thickness of cold-rolled steel sheet production
Detachable back panel:	1.0mm thickness of cold-rolled steel sheet production
Cabinet doors& drawers:	1.0mm thickness of cold-rolled steel sheet production, surface by the epoxy resin powder coating.
Hinge:	175 degree  open type high quality hinge.
Slideway:	Self-closing three section slide rail, no noise.
Handle:	C-frame alloy with chrome-plating handle

welcome to inquire, We will reply to you within 24 hours
