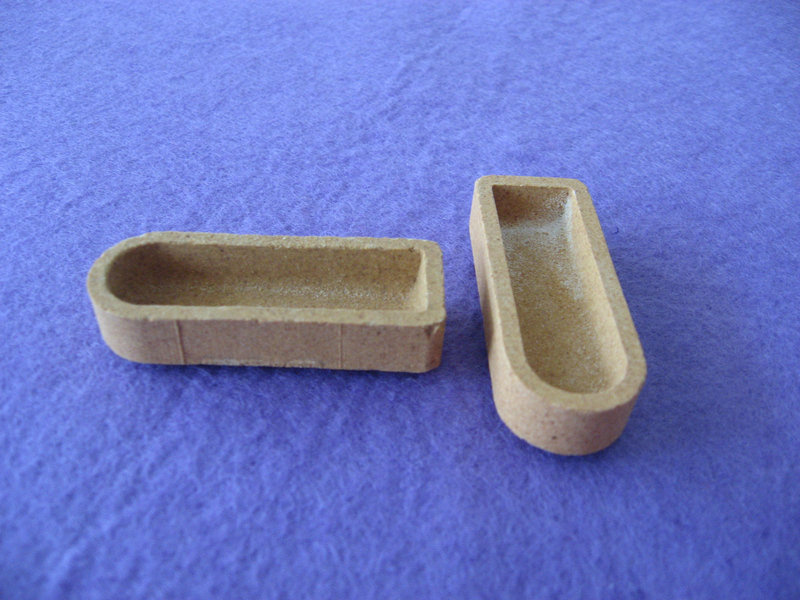

Refractory Heating Ceramic Evaporating Basin Used in Laboratory

Prod Model:	HB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Refractory Heating Ceramic Evaporating Basin Used
Volume:	5-2000ml
Size:	Customized Is Ok
Color:	White
Mold:	Conical, Circular, Cylindrical, Oval, Square
Usage:	Laboratory
Keyword1:	Evaporating Basin
Keyword2:	Ceramic Evaporating Basin
Keyword3:	Ceramic Evaporating Basin for Laboratory
Keyword4:	Heating Ceramic Evaporating Basin
Refractoriness (',℃):	1580< Refractoriness< 1770
Feature:	Long Time Materials
Type:	Refractory Material
Shape:	Pipe
Material:	Alumina Block

Product Description

Material :95-99 Alumina Ceramic
Type : According to clients drawin

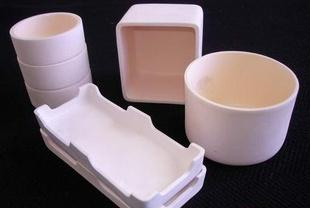

We manufactures custom technical ceramic parts and components ,covering a wide range of customer reuquirements .We make use of several forming and machining techniques to process components made from alumina, zirconia ,cordierite .These materials may be used in applications that require wear or coorosion resistance .high temperature capability ,or ceramic insulators for electrical resistance


Name	Unit	Alumina			Zirconia
Content	%	≥95	≥99	≥99.7	≥94
Density	g/cm3	3.65	3.80	3.90	6.00
Hardness (Hv0.5)	GPa	13.1	15.0	17.1	13.2
flexural strength	MPa≥	340	310	370	1000
Elasticity	GPa	300	330	350	200
Poisson's ratio		0.23	0.23	0.23	0.30
Max Tem.	°C≥	1400	1750	1800	1050
Heat expansion	×10-6/°C(40-800°C)	7.8	8.0	8.0	11.0
Thermo conductivity	W/m·K( 20°C)	22	28	31	2.6
Thermal Resistance	°C	200	200	230	300
dielectric strength	V/m	15×106	15×106	15×106	11×106
dielectric phase angle  (1MHz)	×10-4	4	2	1	16
SIC(1MHz)		9.2	9.8	9.9	33
Nitric Acid  (60%)90°C	WT Loss mg/cm2/day≤	0.12	0.10	0.05	≠0
Sodium hudroxide  (30%)80°C	WT Loss mg/cm2/day≤	0.53	0.26	0.04	0.08




As a professional company in advanced ceramic industries, HIGHBORN is supplying high quality and high precision ceramic components for clients from worldwide. Our ceramic products are widely used in various fields of automotive, metallurgy, machinery, electronic & electrical, food, chemical, medical and so on. With experienced engineers and talented workers, we are able to evaluate projects and drawings properly, make valuable suggestion, supply satisfying products. Our materials including:

- Aluminium Oxide ( 95% 96% 99% 99.5% 99.7% Al2O3 )
- Zirconium Oxide ( Yttria stabilized ZrO2 )
- Silicon Nitride ( Gas pressure sintered & Hot pressed Si3N4 )
- Silicon Carbide (Reactive sintered,  Pressureless sintered & Recrystallization SiC)
- Aluminum Nitride
- Machinable Glass Ceramic

Aiming at building long term cooperation relationship with our clients, we set our motto as "Quality First". Far now, our products have been exported to North Amirica, East Europe, West Europe, East Asia, Southeast Asia and get good reputation from our client.
