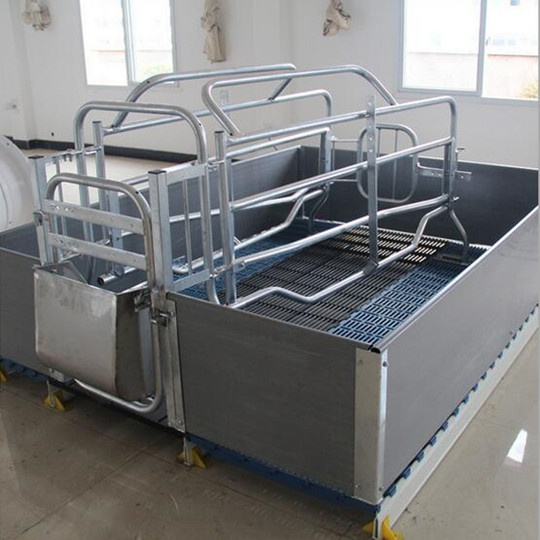

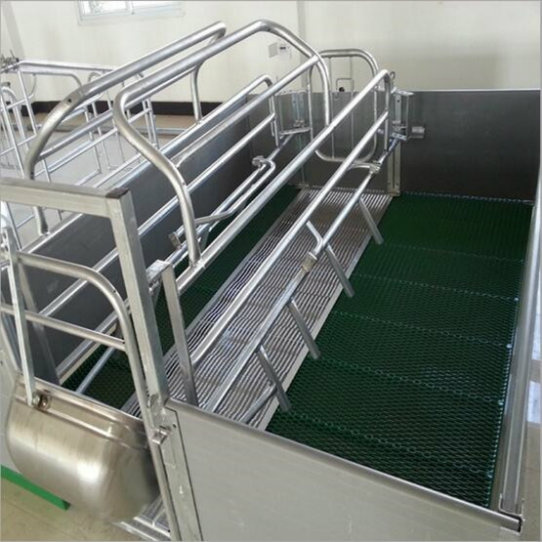

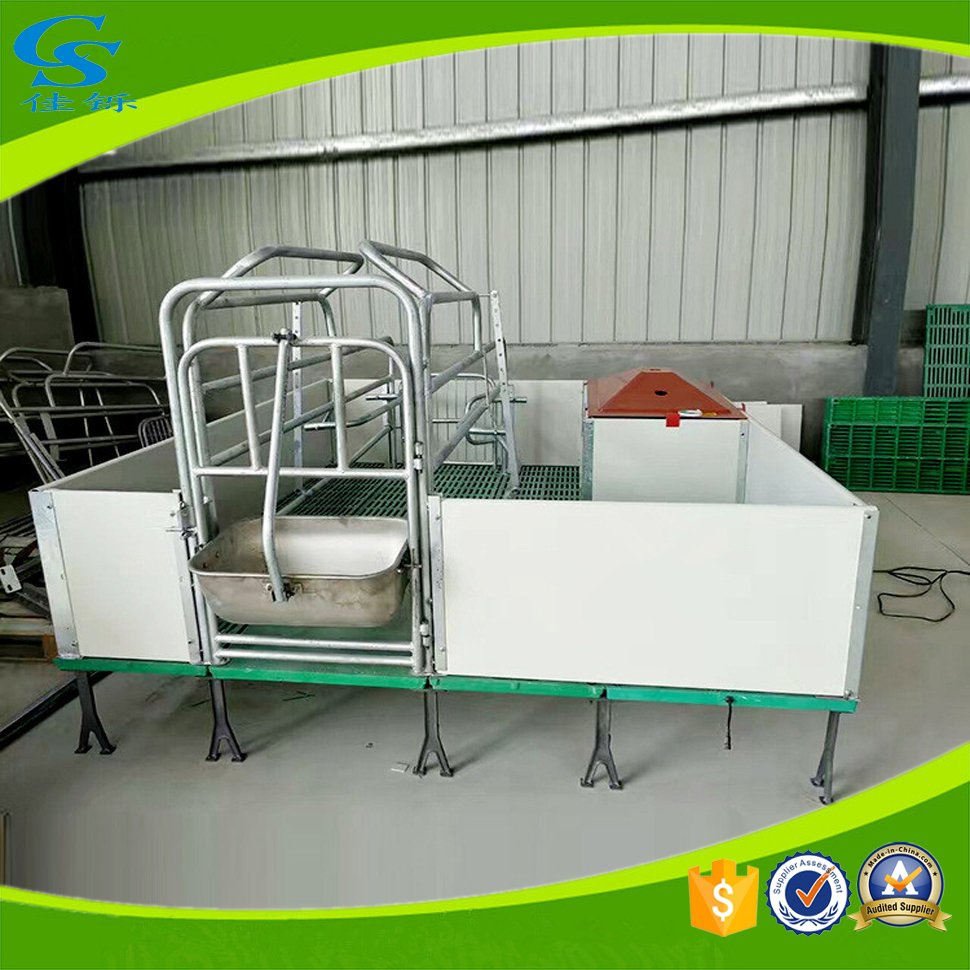

PVC Board Farrowing Pig Crate Sow Bed

PVC Board Farrowing Pig Crate Sow Bed
Price: US $ 750-800/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: CS-K005
Material: Hot DIP Galvanized
Fence: PVC Board
Floor: Iron,PP
Feature: Long Time Used
Export Markets: Global
Brand Name: CS
Size: 2.4*1.8 or Can Be Customized
Quality: Good
Function: Sow Piglets
Delivery Time: Within 30 Days
Power Source: Manual Labour
Type: Livestock
Usage: Sowing

Product Description


Product Details:

1. Available fence iron pipe and PVC two options. Iron pipe fence ventilation, good fences PVC insulation effect, customers can choose to customize according to their own requirements.
2. Floor: sow using a cast iron floor, using a piglet plastic floor.
3. sows using a stainless steel or cast iron trough, durable, easy to clean. Piglet more complement trough optional.
4. glass steel beam bearing strong, no rust, no deformation, durable.
5. The combination of size 2100x2400mm, can be customized according to customer requirements, insulation and PVC plastic boxes to choose from, piglets big space, conducive to the survival, growth.Save space, save material.



Structure:

1.Frame
  Size: 2100 mm*650 mm*1000 mm
  WT: 2.0 mm
  Material: Hot-dip galvanized steel pipe
  Feature:The size is suitable for the small range activities of sow and won't hurt to the piglets.      Hot-dip Galvanized technology ensure frame anti-corrosion for long time and 2.0 mm wall    thickness of steel pipe ensure the frame high impact resistant ability.
2.Fence
 Size: 2100 mm*3600 mm*560 mm
 Material: Hot-dip galvanized steel rod
 Feature: Hot-dip Galvanized technology ensure frame anti-corrosion for long time. High strength of impact resistant ability ensure sow not run away from farrowing crates.
3.Sow Feeder
 Size: 380mm*370mm*345mm*200mm
 Material: Cast iron
 Feature:Solid, durable and not afraid to fall off;Adopt thicken material, long serve time and cost-effective;Corrosion resistance, anti-aging, Practical and not easy to waste feed; Reasonable design is widely used.Pig Farming Equipment Pig
4.Piglet Feeder
 Size:320mm*70mm
 Material: Plastic
 Feature: Easy to clean; Cheap price; No peculiar smell.thickening and increase weight, reasonable design, high strength plastic, increase the capacity.Pig
5.Slatted Floor
 Size:600mm*600mm 600mm*750mm 600mm*1000mm 600mm*1200mm(customizable)
 Material: BMC composite material
 Flat, smooth surface, no pits and no pores, Leakage dung effect is good, easy to flush, friction resistance, corrosion resistance. The floor leakage dung not blocked. Long sevice life more than 15 years.Pig Farmi

Specification:

Piglets fence length, width, heightSpacer lengthThe grid spacing
2.0-2.3m,1.7-1.8m,0.5-0.6m2.1-2.3m40mm






Qingdao Caso Machinery Co., Ltd. is located in China's economic center and port city of Qingdao. We are a supplier specialized in animal husbandry equipment(cattle free stall, cattle headlock, farrowing crate, pig floor, gestation crate, dry & wet feeder), wire mesh fence and grating, staircase, garden fence, pool fence, picket fence, balcony railing, porch railing, Dog Cage for metal products.

Our products offer good corrosion-resistance, anti-aging property, acid and alkali resistance, no color fading, smooth and neat surface and comfortable touch. Our production Technology includes casting, welding, punching, bending. We have many advanced production equipment includes.

We have the advenced equipment and devices to produce quality products. At present, our products are distributed in over 30 countries and regions of Europe, America, Asia, Africa. etc.

We have strict quality inspection, and make our great efforts to provide direct and careful service to clients. We've own the common trust among our clients with our first class products, reliable quality and superb services.

Our company sticks on the principle of "customer-centric innovation as a leaser, taking innovation as the leading, honest as the fundamental, marketing-guide, quality guarantee, service as the core". We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
