| Prod Model: |
shs-fp-ablution025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
6.055X2.435X2.79m |
| Color: |
Red/ Blue/ White/Green/Yellow |
| Frame: |
Cold and Hot Rolled Steel |
| Insulation Layer: |
Glass Wool/ Mineral Wool/ PU Foam |
| Material: |
Steel Structure |
| Usage: |
Equipment Cabin |
| Certification: |
SGS |
| Customized: |
Customized |
Product Description
Product Description
1. Application:

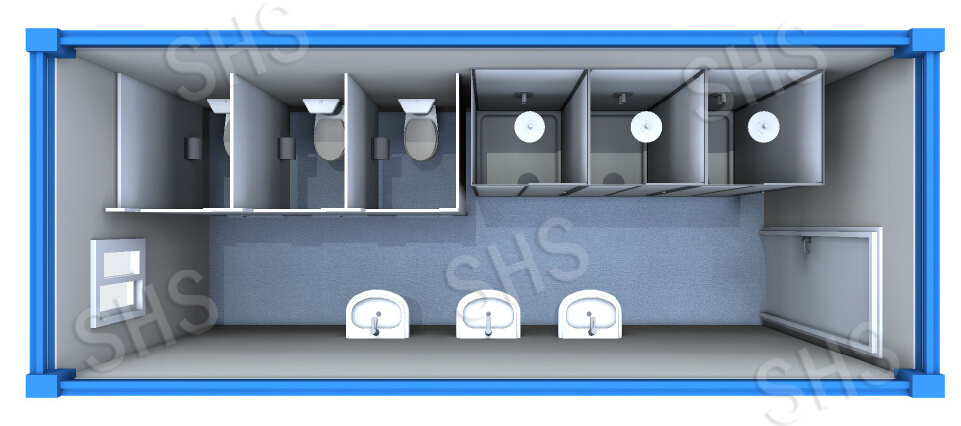

The public washroom is built from a simple 20ft cabin, with 3 toielts, 3 wash basins, 3 urinals, pipes are prebuilt also. It can supply service for 7 years.
2. Certificates:
ISO9001, ISO14001, CSA(Canadian Standards Association), CE(European Conformity), AU(Australia Standard), UL(America standard), SGS(Societe Generale de Surveillance).
3. The advantages of prefab/flat pack container house:
(1) Customized design: You can choose what kinds of house you want;
(2) Light and reliable: The steel structure is strong and firm. Wind resistance capacity>220km / h, seismic resistance capacity >grade 8;
(3) Time and Labor saving and Easy assembly: Four skilled workers can finish assembling one standard unit within 3 hours;
(4) Flexible combination: Multiple modular buildings can be easily combined horizontally and vertically;
(5) Wide applications: Our container house and prefab house can be used as hotel, mining camp, office, villa, toilet, shop, workshop etc;
(6) Good looking and neat inside: Water pipe and wires could be fixed into and be hidden into the sandwich panel;
(7) Global standards meet;
(8) Efficient Transportation: 4-6 units Flat-pack usually packed together into one bundle, which is in one standard 20' shipping container size and transported by standard shipping truck. It includes standard forklift pockets within the floor base, so it can be loaded or unloaded by forklift even no crane.
4. The advantages of modified shipping container house:
(1) Brand new: We produce brand new shipping container and then modified it to be container house;
(2) Good quality control: We have perfect quality control system to assure that we can meet Australia, Canada, CE or other standard and we will take the pictures for every step.
(3) Totally customized: We can make over wide container house, like 10feet, 12feet, even14feet wide;
(4) Plug & play: All stuff had been preinstalled in the container and you just need put it on site, connect to electricity and water;
(5) Big productivity: More than 20 units can be produced every day, so we can shorten lead time to meet your needs.
5. Wide application of flat pack/modified container house:
(1) Office;
(2) Mining camp/labor camp;
(3) Hotel or Motel;
(4) Workers' accommodation;
(5) School;
(6) Canteen;
(7) Villa;
(8) Apartment;
(9) Public toilet or shower;
(10) Clinic;
(11) Disaster relief.
6. Standard basic size:
Here below is the standard specification of our typical unit, measurements of KO/LO flat pack-containers:
External length/Inner length: 6055/5860mm;
External width/Inner width: 2435/2240mm;
External height/Inner height: 2810/2500mm.
7. Structural Strength
Four stories high stacking, with the following design loads:
Floors: 250Kg/Sq. M;
Roofs (of modules): 150Kg/Sq. M;
Walkway: 500Kg/Sq. M;
Stairs: 500Kg/Sq. M;
Walls: Wind at 220 Km /Hour.
8. Thermal insulation
Floor: 0.34W/Sq. M/° C;
Walls: 0.20W/Sq. M/° C;
Roofs: 0.30W/Sq. M/° C.
Multi-functional container modules specification:
| Item | Description |
| Structure | Flat pack | @ Cold rolled steel structure with corner casts and forklift pockets 90x256x2050mm |
| @ Available size, 8ft x 10ft, 8ft x 16ft, 8ft x 20ft, 8ft x 24ft, 8ft x 30ft, 10ft x 20ft |
| Wall panel | Exterior Cladding | 0.5mm thick corrugated or flat galvanized coated steel sheet |
| Insulation | 60mm, 70mm, 80mm, 100mm |
| Internal Cladding | @ Laminated E1 – Emission Valued 9mm thick chipboard; |
| @ White 12.7mm thickness Glass – Magnesium Board MgO; |
| @ Parallel compressive strength = 18.1 MPa; |
| @ Formaldehyde emission ≤ 0.1mg/100g; |
| @ Water expansion ratio = 0.2%; |
| @ Low smoke and non-flammable; |
| @ Flammability class A1 – non-combustible; |
| @ Smoke density: low smoke emission; |
| @ 0.5mm thick galvanized and coated color steel sheet. |
| floor | Floor Steel frame | @ 3mm thick cold rolled & welded steel profiles; |
| @ Insulation Thickness: 10mm PU / 100mm mineral wool; |
| @ Subfloor: 0.5mm thick, galvanized steel sheet; |
| @ Floor Board: 18mm magnesium(water resistant v 100); |
| @ The board complies with the emission value E 1; |
| @ Parallel compressive strength = 35.7 MPa; |
| @ Formaldehyde emission ≤ 0.4mg/100g; |
| @ 1.5mm thick vinyl sheet; |
| @ Flammability class B1 – hardly combustible; |
| @ Smoke density class Q1 – low smoke emission; |
| @ Welded seams. |
|
| Fiber cement floor | @ Density: 1.26kg/m 3 K= 0.18W/m*k; |
| @ Waterproof, moisture content = 0.13%/m 2 |
| @ Formaldehyde emission = 0.2 mg/ 100g; |
| @ Deformation, parallel to the bending elasticity = 6055MPa |
|
| 18mm thick marine grade floor | @ Parallel compressive strength = 88MPa; |
| @ Formaldehyde emission ≤ 0.4mg/100g; |
| @ Deformation, parallel to the bending elasticity = 8030MPa; |
| @ Waterproof, moisture content = 6.0%/m 2 |
|
| Insulation | Mineral wool | @ Density : 40kg/m 3 – 120 kg/m 3 (120kg/m3 = 0.25w/m 2 *k) |
| @ Flammability class A – non-combustible; |
| @ Smoke density class Q1 – low smoke emission; |
| @ Certification : CE & GL; |
| @ Temperature adjustment – 50c & 120c. K= 0.044W/m*k; |
| @ Water Ratio ≤ 0.5%; |
| @ Hygroscopic coefficient ≤ 5% & ≥ 98%. |
|
| PU Foam | @ Density : 30kg/m 3 – 40 kg/m 3 (40kg/m 3 = 0.044W/m 2 *k) |
| @ Flammability class B1 – non-combustible; |
| @ Smoke density class – low smoke emission; |
| @ Compressive strength > 150MPa; |
| @ Water vapor absorption ≤ 6.0ng(Pa*m*s ); |
| @ Hygroscopic coefficient ≤ 4%. |
|
| Glass wool | @ Density : 16kg/m 3 – 24kg/m 3 |
| @ Flammability class A – non-combustible; |
| @ Smoke density classQ1 – low smoke emission; |
| @ Coefficient ≤ 4% |
|
| roof | Roof Steel Frame | 4mm thick cold rolled & welded steel profiles |
| Roof Cover | 0.5mm thick galvanized sheet & double folded in the roof middle; Insulation Thickness: Ceiling Panels: 100mm 9mm chipboard(V20), White(Usual); |
| 50mm 50mm Steel Sandwich panel(Option 1); |
| 100mm 12.7mm Glass Magnesium Board(Option2); |
| Corner posts | 4mm thick cold rolled & welded steel profiles, Screwed to the floor base frame and roof frame. 3mm thick cold rolled & welded steel profiles, Screwed to the floor and roof frame. |
| Door | Right or left hand hinged; Inward or outward opening; Steel frame with triangular wrap-around sealing; Door blade with galvanized steel sheets on both sides; Insulated with honeycomb; Aluminum or Steel type; Regular size: 870*2040mm, 870*1995mm. |
| Window | @ PVC frame with insulated glazing and integrated Aluminum roller shutters; |
| @ Color: white; |
| @ Tilt & turn mechanism or sliding; |
| @ Regular size: 800*1100mm. |
| Electrical | @ CE,AS/NZ,UL. |
| Further information please refer to www.shs-house.com |
Shanghai Haicheng Special Steel Container Co., Ltd. (SHS) is one of the leading suppliers of prefabricated modular structures and container conversion. We have been in this industry for more than a decade. Our company is located close to Pudong Airport, covering an area of 30, 000 square meters including 18, 000 square meters plant area. We have full facilities of welding, painting, wood-works, metal-works and assembly area. Through years of unremitting efforts, our annual output has reached 5, 000TEU.
Since its official establishment in 2004 and trial operation in 2002, SHS has developed into a big provider in the world, from disaster relief to large scale camps for the oil & gas / mining sectors, hotels, hospitals, schools and colleges, bars, restaurants and retail structures. The integration of innovative design, continuous research & development, superior production, strict quality control, fast delivery and response to your inquires, as well as well-trained service teams, putting us in a position to assist each customers to meet their needs. Whether you need an individual offering or a full turnkey solution, SHS can assist in delivering your product / project within budget and on time.
We always adhere to the principle of "quality is of essence, manage efficiently and loyalty to customers". Following the motto of "people-oriented, development driven", we manage our company in accordance with ISO standard and spare no efforts to create high quality and environmental friendly accommodation solutions at competitive price and supply excellent service to our customers.
We are looking forward to cooperating with you!
