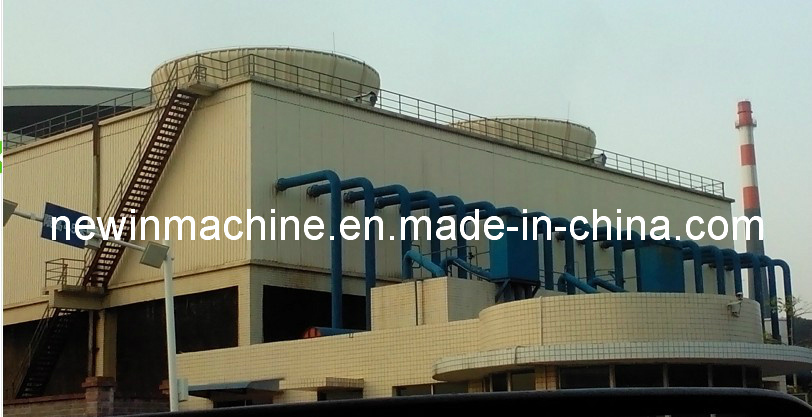

Power Station Industrial Cooling Tower

Prod Model:	NWI-3000SX2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity:	8000ton
Inlet Water Temperature:	43 Deg.C
Outlet Water Temperature:	33 Deg.C
Wet Bulb Temperature:	28 Deg.C
Air Flow:	6000 Km3/H
Motor Weight:	1200kg
Cooling Method:	Counter Flow
Certification:	CTI
Condition:	New
Material:	FRP/ Concrete

Product Description

Features:

1. Excellent Design and Long lifetime.
The shell of cooling tower adopts high quality and toughness glass fiber, beautiful shape, resistants to natural factors and chemical material erosion, looks brand new even after long time use. All the steel shelves are processed by immersive hot galvanized zinc and comply with British BSENISO1461: 1999 standard, reducing the oxidation mostly, prolong the service life.

2. High Efficiency and Energy Saving
Newin NWI series cooling tower using excellent quality PVC film as thermal interface material, corrosion resistant, no deformation, curved and diagonal design film effectively prolongs exchange time between high temperature water and air inside cooling tower, which makes air flow smoothly and resistance lower, meanwhile, making the water drift ratio lowest, furthermore, the axial and arc fan, specially designed basin with evenly distributed waterstoma, which highly improved heat exchange rate of cooling tower and lower the entire cooling tower's energy consumption and noise.

3. Easy Installation, Reasonable and Practical Usage
Newin NWI series cooling towers can be paralleled for multi-units, flexible combination, widely used. The body structure is tidy, standardized, compact and strong, which is easy for installation. The design and manufacture are all on basis of practical uses, so it can meet customers' requirement better with high quality.


FAQS:

Q: As a trading/contracting company, how to ensure my benefit?
A: Our company has strict customer management software, for the same project will not repeat to others. If you require our offer including commission, the commission will be paid within 2 working days after receipt of payment.

Q: As a end user, how to ensure that the installation and commissioning?
A: - We have some factory-assembled models for choosing.
- We can provide global installation supervision and commissioning services.
- For small simple equipments, our company will supply installation and commission guide through the Internet and telephone. We have a wealth of documentation and videos to guide customers arrange debugging.

Q: How to pay?
A: Preferred TT, large single amount or restricted areas can be selected LC.

Q: Product warranty period?
A: We commit to provide warranty and maintenance serives for all of our products.
Warranty period:
-Round type cooling tower: 1 year
-Square type cooling tower: 2 years
-Motor: 1 year
-FRP Accessories: 5 years
-Galvanized steel and stainless steel accessories: 5 years

Q: How about the size of your company?
A: Our company has three plants: Pumps and electrical plant, cooling tower plant and casting plant. A total of more than 500 workers, the largest professional manufacturer of cooling towers in Southern of China.

Q: Delivery time?
A: -Round type cooling tower below 300 tons: Inventory; 300 tons or more: Customized 15 working days;
- Square type cooling tower 80-1200 tons: Customized 20 working days
- Closed circuit cooling tower: 20 working days
- Industrial cooling tower (containing large F. R. P. Cooling tower, concrete cooling tower, splash cooling tower, sewage cooling tower): Customized 30-60 days;
- Other special towers (turbine cooling tower, fan-less cooling tower, spray infill-less cooling tower): Customized 30-60 working days;
- Accessories (filling, motors, fans, distribution head, etc. ): 10 working days;

Model	NWI	800	1000	1500	2000	2500	3000	3500	4000
Nominal flow	m 3 /h	800	1000	1500	2000	2500	3000	3500	4000
Cooling capacity	Kcal/h	8.0×10 6	1.0×10 7	1.5×10 7	2.0×10 7	2.5×10 7	3.0×10 7	3.5×10 7	4.0×10 7
Water pressure	×10 4 pa	8.0	8.8	10.0	11.0	11.5	12.0	13.3	13.5
Net weight	Ton	11.63	19.68	29.34	45.03	46.2	65.0	76.05	78.5
Running weight	Ton	18.45	31.23	46.75	68.69	75.3	99.2	104.8	132.0
Noise	dB(A)	71	72	72.5	73	73.5	73.5	74	74
Air volume	km 3 /h	600	900	1200	1750	2100	2400	2730	3150
Fan diameter	mm	4700	5460	6000	7700	8000	8530	9140	9140
Motor power	kW	30	45	55	90	132	160	160	200
Motor speed	rpm	220	165	165	149	149	149	110	110
Length	mm	7400	9000	10500	12000	13500	15000	16000	17400
Width	mm	7400	9000	10500	12000	13500	15000	16000	17400
Height	mm	7800	8700	9500	10200	10700	11400	12100	12400
Fan stack height	mm	2800	3100	3600	3800	4000	4200	4400	4400
Coaming height	mm	3500	3800	3800	4000	4000	4200	4500	4500
Air inlet height	mm	1500	1800	2100	2400	2700	3000	3200	3500
Water inlet height	mm	4000	4300	4600	4900	5200	5500	5700	6000
Water inlet diameter	mm	400	450	500	450*2	450*2	500*2	500*2	550*2
Fan stack	Fiberglass Reinforced Polyester
Exhaust fan	Completed equipment
Ladder	Galvanized steel
Roof plate	Fiberglass Reinforced Polyester / Gavanized steel
Water eliminator	PVC
Sprinkler system	Galvanized steel & P.V.C
Infill	PVC
Casing	Fiberglass Reinforced Polyester
Ice-melting pipe	Galvanized steel
Clapboard	Fiberglass Reinforced Polyester
Frame	Galvanized steel / Concrete
Pool	Concrete
