| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Machine Parameters | Model | Unit | DSK-2516 | DSK-3020 | DSK-4025 |
| Travel | | |
| X axis | mm | 2,500 | 3,000 | 4,000 |
| Y axis | mm | 2,600 |
| Z axis | mm | 500 (800 - opt.) |
| W axis | | 1,200 (1,500/2,000 - opt.) |
| Distance between columns (max. workpiece width) | mm | 2,600 |
| Work table | | |
| Length | mm | 2,500 | 3,000 | 4,000 |
| Width | mm | 1,200 | 1,600 | 2,000 |
| T slot (width x number x pitch) | - | 28x7x180 |
| Max. table load | kg | 5,000 | 9,000 | 12,000 |
| Spindle | | |
| Spindle motor | kW | 15/22/26 (30/37 - opt.) |
| Spindle speed (gear type) | rpm | 4,500 (6,000 - opt.) |
| Spindle taper | - | BT 50 / ISO 50 / CAT 50 |
| Feed | | |
| Rapid feed-rate (X/Y/Z/W) | m/min | 10/10/12/2 | 8/10/12/2 |
| Cutting feed-rate | mm/min | 7,000 |
| Accuracy | | |
| Position accuracy | mm | ±0.005/300; 0.015/ full travel |
| P0.035 | P0.045 |
| Repeatability | mm | ±0.003 |
| Ps0.028 | Ps0.03 |
| ATC | | |
| Tool magazine capacity | pcs | 32 (40/60/90 - opt.) |
| Max. tool length | mm | 350 |
| Max. tool weight | kg | 20 |
| Max. tool size (full tools) | mm | Ø125 |
| Max. tool size (next pocket empty) | mm | Ø245 |
| Others | | |
| Power consumption | kVA | 65 |
| Compressed air | kg/cm2 | 6.5 |
| Machine weight (approx.) | tons | 62 | 64 | 66 |
| Floor space (LxWxH) (approx.) | m | 13.0x7.8x6.6 | 14.8x7.8x6.6 | 16.7x7.8x6.6 |
Machine Configuration | Automatic lubrication system |
| Spindle oil cooler |
| Air blast through spindle |
| Manual Pulse Generator |
| Working lamp |
| 3-color alarm lamp |
| RS-232 interface |
| Heat exchanger for electrical cabinet |
| Water gun and air gun interface |
| Cutting coolant system |
| Twin auger chip removal system |
| Belt type chip conveyor with cart |
| X axis Heidenhain Linear Scale |
| Sub-table |
| 3 axes manual pulse generator for mold processing |
| Coolant through spindle at 20/40/70 bar |
| Coolant through tool holder interface |
| Air conditioner for electrical cabinet |
| Transformer |
| Oil skimmer |
| Oil mist collector |
Machine PropertyAn optimum main structure must be able to withstand the stresses from both the weight of the casting itself and
the reaction force generated during machining.
Nantong DSK Series is rigid enough to resist the deformation.

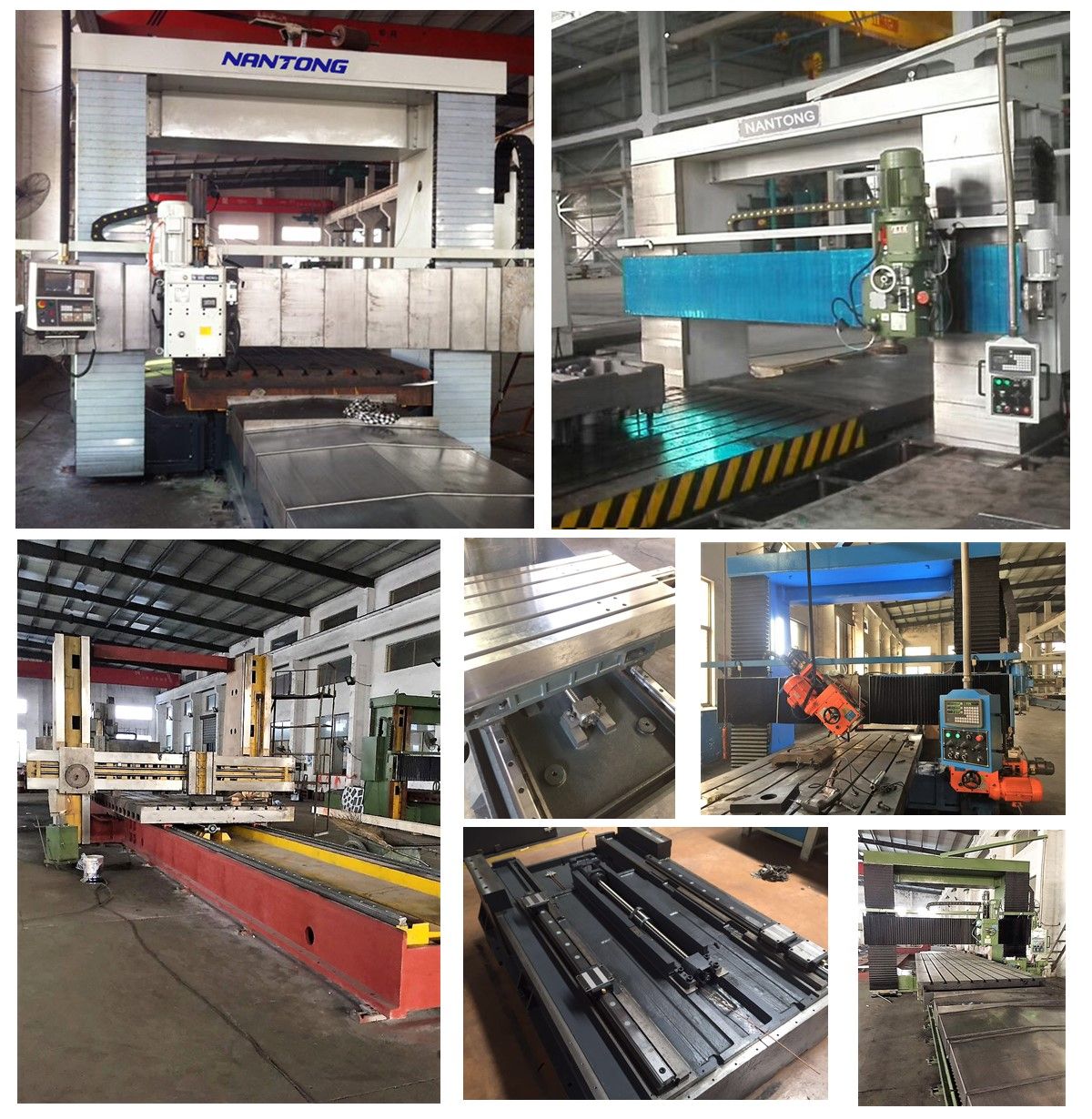

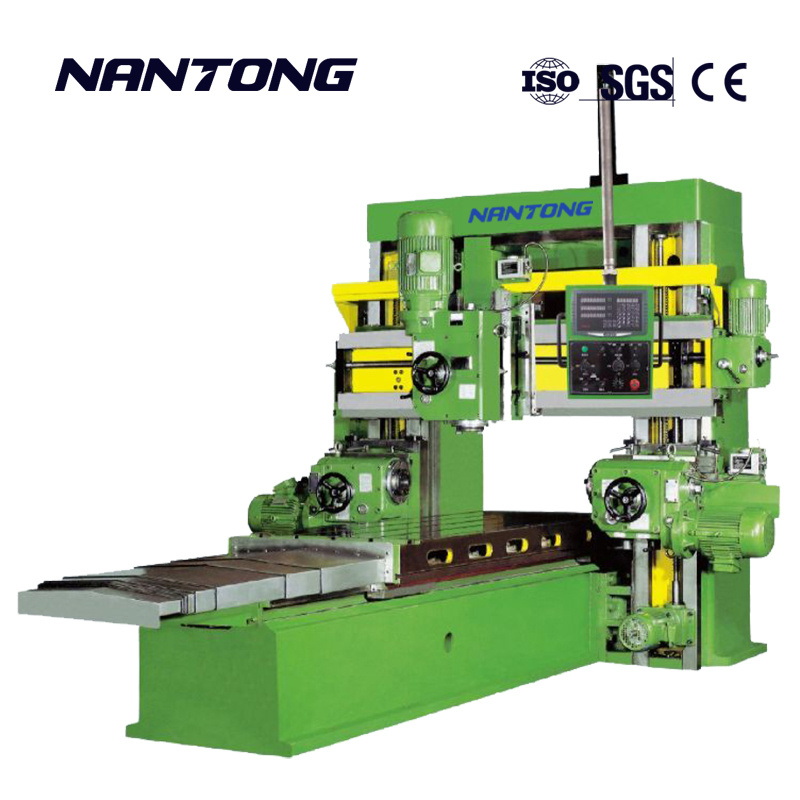

Machine pictures
