| Price: | US $ 800-1100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: | A102-1 |
|---|---|
| Name: | Electrical Surgical Hospital Operating Table |
| Certifications: | Ce/FDA/ISO |
| Sample: | Available |
| OEM: | Available |
| User's Manual: | Available |
| Spare Parts: | 1% Free |
| Warranty: | 2 Year |
| Service: | Lifetime |
| Factory Location: | 2 Hours Driving From Shanghai |
| Factory Type: | Over 13 Years Manufacturer |
| Type: | Operating Table |
| Certification: | ISO9001 |
| Kind: | All |

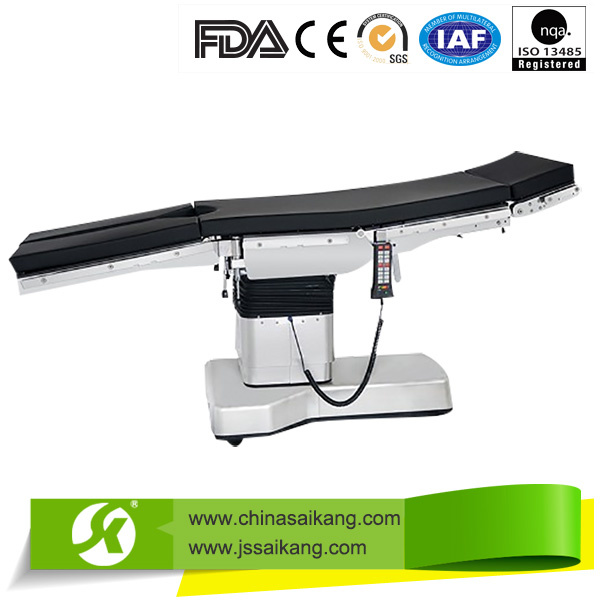

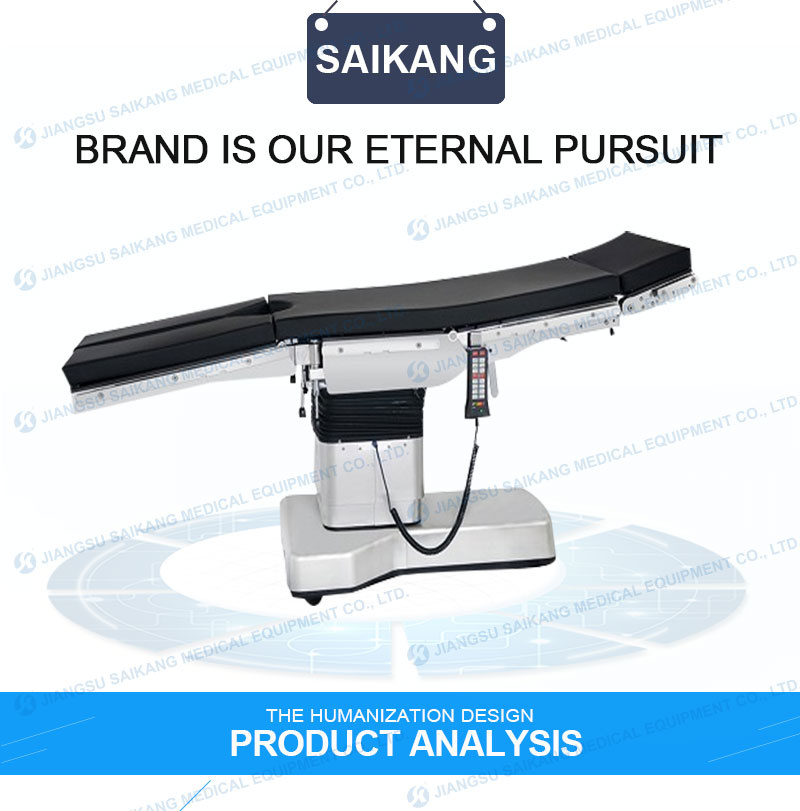

Portable Electrical Surgical Hospital Operating Table
Specifications:
It is a cost-effective, multi-performance mobile operating table that meets the requirements of different surgeons, the clinical staff can easily operate the table quickly and effectively, even in a darkened operating theater
The large loading capacity accommodates patients of different sizes.
Features:

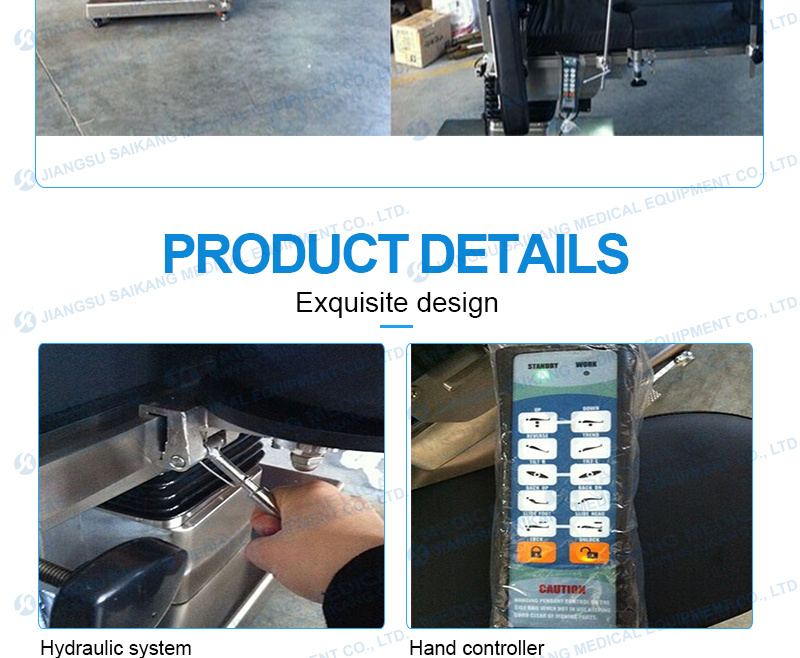

Imported hydraulic motor and solenoid valve
It has the function of auto-restoration
Electro-hydraulic mode of operation is adopted. Panel control modes are available to control various movements
Quality stainless steel 304 is used for table support, bae plate, column shield and rails on both sides of the table, easy for cleaning and sterilization, Console supports the use of cast aluminium parts, never rust
The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam
Imported carbon steel plate is used for the table top, which is convenient for X-ray photography
AC and DC can use at the same time
The table top can sliding
Electric braking device, convenient for shifting the operating table
Standard accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waistband
Length: 2000±100mm
Width: 520±20mm
Height: (750-1150)±30mm

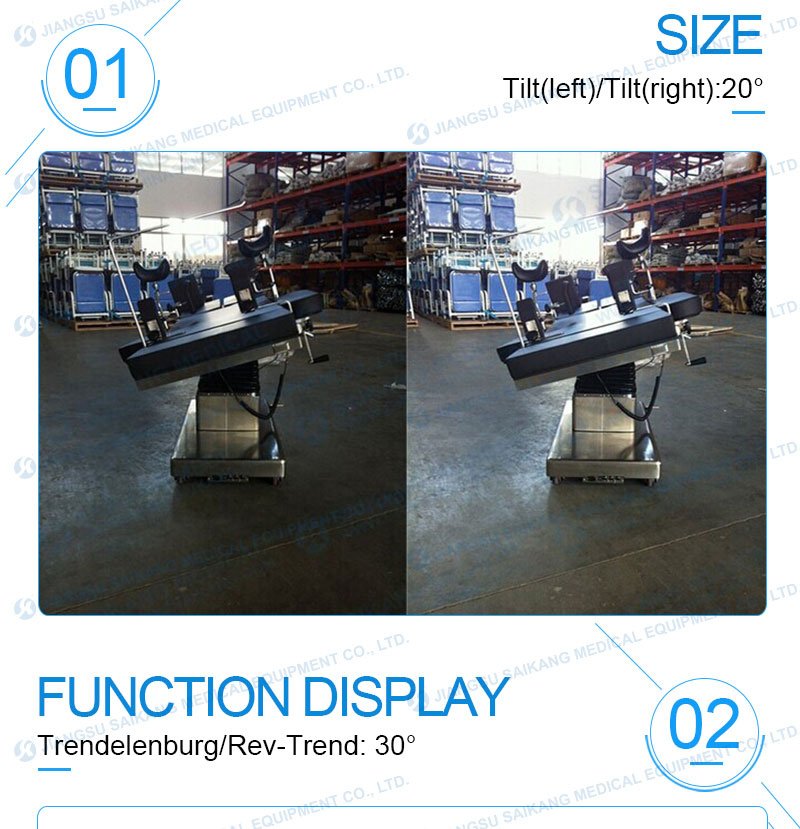

Forward: ≥20° Backward: ≥25°
Leftward: ≥18° Rightward: ≥18°
Horizontal and longitudinal movement: 300±30mm
Leg board fold upward/downward: 15°/90°
Leg board fold outward: ≥180°
Back board fold upward: ≥70° fold downward: ≥20°
Head board fold upward: ≥50° fold downward: ≥90°
Waist board lifting: 100±20mm
| Name | Electric Surgical Operation Table |
| Model | A102-1 |
Item | Specification |
Size (L*W*H) | 2000*520*700-1150mm ±50mm |
Height adjustment (mm) | 700-1150mm ±50mm |
Trendelenburg | 20° |
Left tilt | 15° |
Right tilt | 15° |
Back board upward | 75° |
Back board downward | 20° |
Head board upward | 30° |
Head board downward | 90° |
Kidney bridge evevation | 100mm ±20mm |
Sliding | 300mm |
Leg board upwards | 10° |
Leg board downward | 90° |
Leg of the board split | 180° |
Horizontal and longitudinal movement | 300±30mm |
Main Voltage AC | 220V±22V |
Input Power VA | 400±10% |
