Portable Accessible Wheelchair Vertical Lift Table
| Price: |
US $ 2050-5060/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HTVL |
| Platform Size: |
1.0*1.5m and as Per Your Requirement |
| Material: |
Spraying Plastics or Stainless Steel |
| Platform Height: |
600-10000mm |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
Hydraulic |
| Running Mode: |
Stationary |
| Feature: |
Explosion-Proof |
Product Description

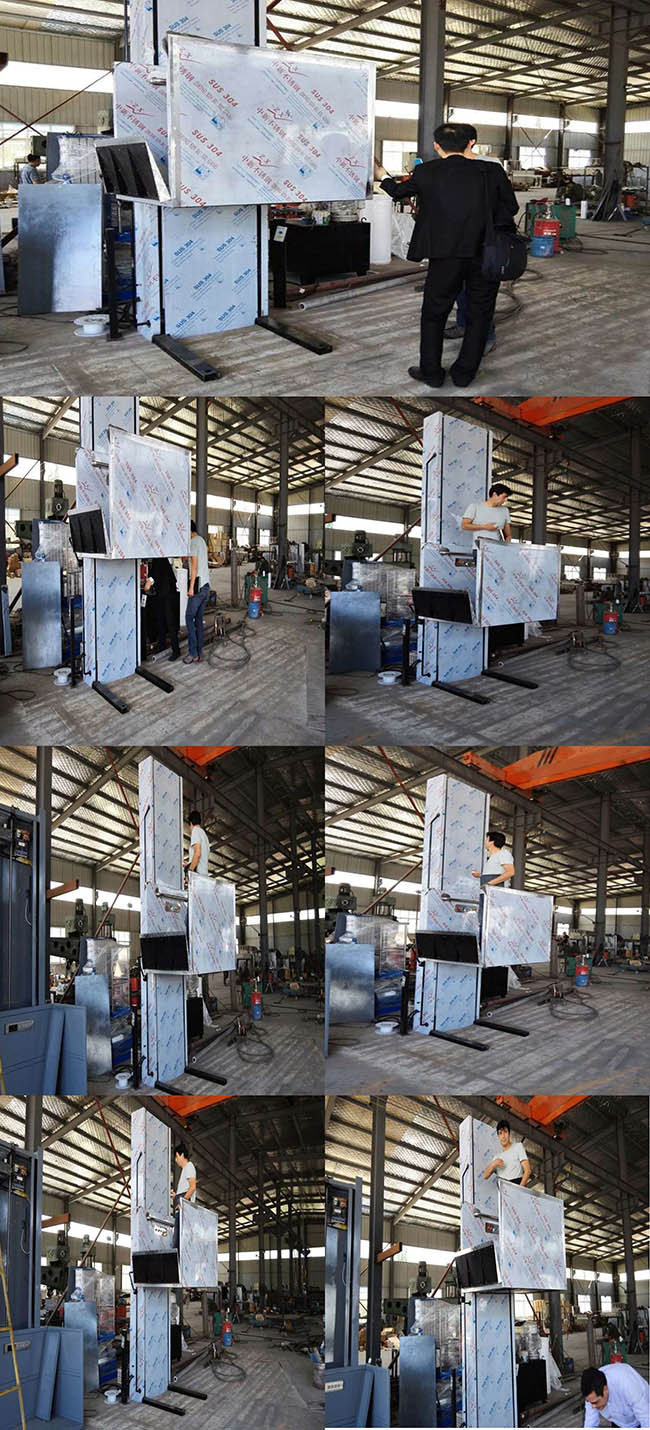

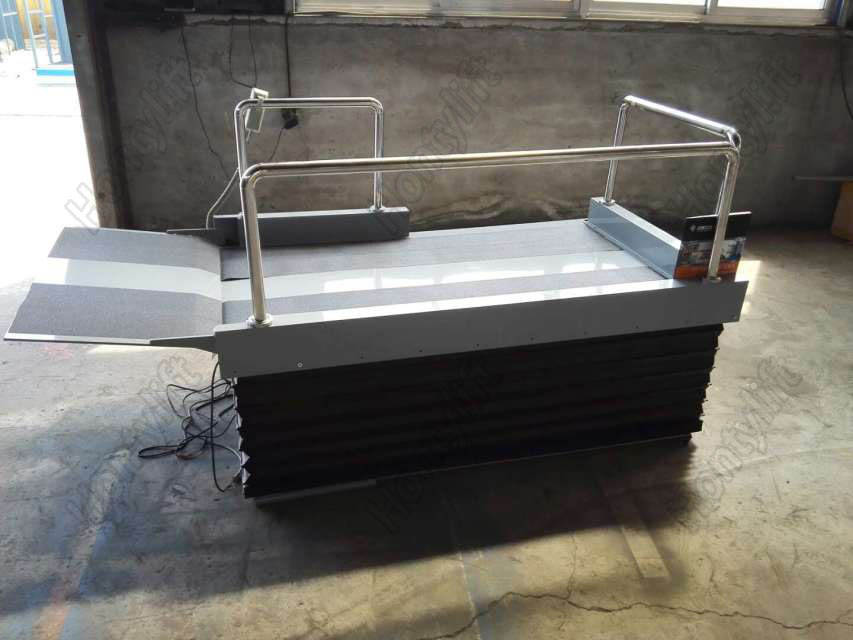

Portable Accessible Wheelchair Vertical Lift Table
product introductOne of the most common challenges faced by wheelchair users is going through steps in public or private areas.If you are considering an alternative to your current method of going up and down stairs,
a wheelchair lift might be your best choice. Our Wheelchair Vertical Lift Table is a short rise vertical elevating system. This durable and easy to use vertical lift is suitable forIndoor or outdoor applications requiring vertical transportation up to 6 meters.Customer's experience
specification | Model | Platform size(mm)
| Load(kg)
| Lifting height(m)
| Package size(mm)
|
| HTVL0.25-1.0 | 1200*1000 | 250 | 1.0 | 1600x1300x1550 |
| HTVL0.25-1.5 | 1200*1000 | 250 | 1.5 | 2100x1300x1550 |
| HTVL0.25-2.0 | 1200*1000 | 250 | 2.0 | 2800x1300x1550 |
| HTVL0.25-2.5 | 1200*1000 | 250 | 2.5 | 3300x1300x1550 |
| HTVL0.25-3.0 | 1200*1000 | 250 | 3.0 | 4000x1300x1550 |
| HTVL0.25-3.5 | 1200*1000 | 250 | 3.5 | 4500x1300x1550 |
| HTVL0.25-4.0 | 1200*1000 | 250 | 4.0 | 5000x1300x1550 |
The disabled Accessible Vertical Wheelchair Lift Platform can be customized as you requiredProduct detailsControl system

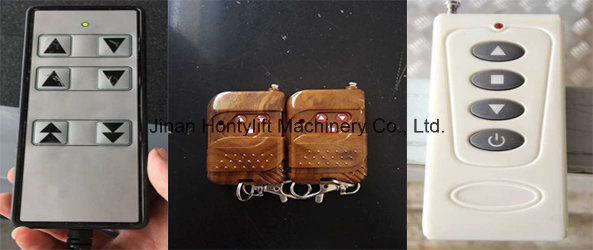

You can control The disabled Accessible Vertical Wheelchair Lift Platform by control panel, remote controller or control button on ground, it is very convenient
A: Control panel
B:Manual valve and emergency stop they can make the machinary go down safetly in case of no power or something urgent
C: control bottonsthey can be inclined or remote controlling the machinary for your convenience

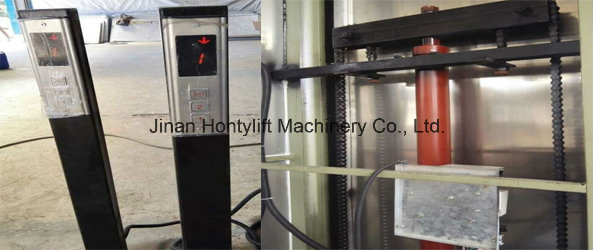

D: Post switch, it can link with the lift to control it up down, for people call the lift.
- we provide two for one lift.

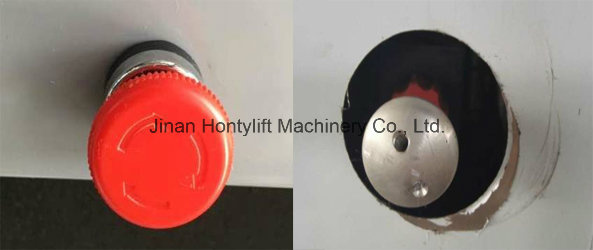

Safety protection device1) Emergency Stop: The lifting and lowering process can be stopped immediately
By pressing the emergency button.
2) Safety device:
Safety Interlock: Lock the platform when it is out of control.
3) Safety Sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.
4) Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.

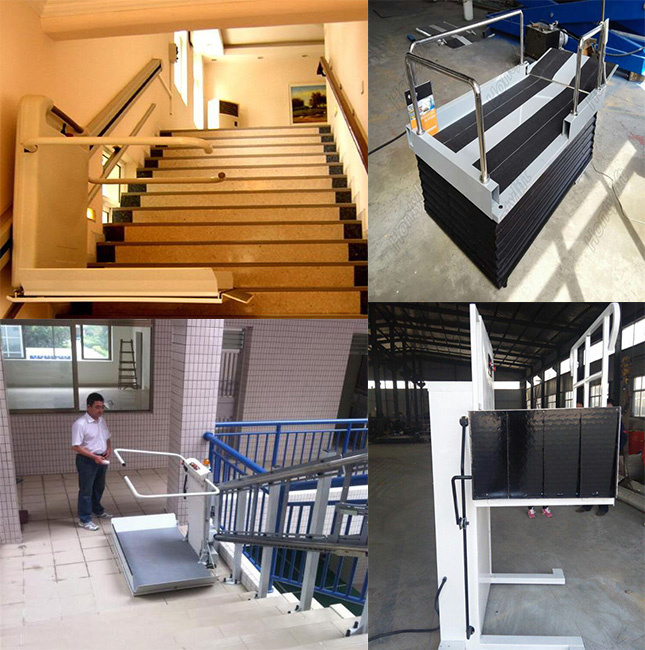

5)Auto-flap: Turn up after lifting . Application The Disabled Accessible Vertical Wheelchair Lift Platform is widely used in residential areas, hotels, administrative offices buildings, subways, banks, stadiums, hospitals and other public places. For the aged and disabled people.
HAVE A NICE DAY!!!!!!! IT'S MY HONOR TO ANSWER ANY QUASTION ABOUT OUR PRODUCT FOR YOU.
Jinan Honty lift was founded in 2005, which is one of the main manufacturer of hydraulic equipments located in China elevator base. Since the revolution in 2006, we took the development on the technology of hydraulic lifting table as well as elevator, and now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China, and we are also given the honor of "Company with good credit" by the Chinese Government.
We have excellent equipment, advanced technology, perfect detection method and skilled technicians as well; We have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
Our products approved -CE&ISO, exported to Europe North America South America MID-east Southeast Asia Easten Asia, etc. Got good reputation. As one of China's lift machine leading enterprises, we are committed to create the world advanced level lift.
