| Prod Model: |
BHM-ASC12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cup Material: |
Polypropylene |
| Cavity No.: |
8 Cavities |
| Payment: |
Tt |
| Supplier: |
Bhm |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Compound Die |
| Installation: |
Semi Fixed |
| Plastic Material: |
PP,PE |
| Application: |
Laboratory |
| Standard: |
Lkm |
Product Description
BHM is an ISO 9001 certificated company and is engaged in design and making injection moulds and moulding for laboratory plastic wares.

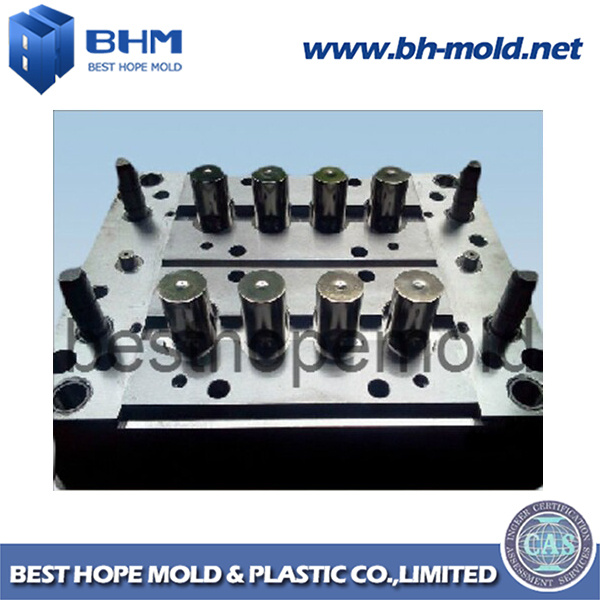

The above picture shows 8 cavities moulds for sputum cups.
The same moulds we have made for many times and the rich experience can ensure you high precision moulds at reasonable price. We can also cooperate with both mould tooling and moulding for the plastic products if there is any custom design.
We do well in the mold feeding, cooling, ejection.
Some of our advantages:
1. Mould for AS, CP, PP, ABS, POM, PE, and other material.
2. Imported steel from Sewden, Germany for cavity and core pin, with very good shining or matte surface on customers' requirements.
3. Mould cavity No.: According to customers' requirements and plastic parts structure.
4. Mould life: We can make mould life different according to customers' production capacity by using different mould steel. The maxium mould life is 3million shots.
5. Other feaatures: Good steel, short delivery time, and low cost. These all will bring you muvh competitiveness.
Look forward to you favorable reply at any time.
| Product Name | Plastic Sputum Cup Injection Mould |
| Product Material | PP, PE |
| Tooling Technology | injection molding |
| Core/Cavity Steel | 1.2083ESR |
| Mold Base | LKM |
| Runner | cold runner |
| Cavity No. | 8 |
| Mold Life | 3 million shots |
| Hot Runner Brand | NA |
| Lead Time | 40-45 days |
| Mold hardness | HRC52-54 |
| Ejector system | ejector plate |
| Packaging | Fumigation-free wooden box |
Best Hope Mold & Plastic (Shanghai) Co., Ltd (BHM) focus on high precision Plastic Injection Molds design and developing, as well as custom injection molding.
BHM' S Facilities:
BHM owns two facilities located in Shanghai and Suzhou, respectively focuses on high precision molds and large size molds.
Since established in 2005, BHM has been developing very fast, business expands rapidly due to quality products and serves, At present, BHM has covers an area of 10000m2 in total and owns 185 employees including 28 engineers, 110molds makers, 10 QC personnel and many injection operators.
BHM' S Capabilities:
BHM offer one-stop services from engineering design, tooling, to custom injection molding, as well as printing and assembly etc.
Design for manufacturability and efficient production is our primary objective. The mold drawings can be finished within 2-4 days then send to customer for checking before tooling. We are able to meet our customers' Shortened lead time. All the necessary technical drawings will be sent to customers for future mold maintenance references.
Our high speed milling machine, EDM, WEDM and CMM optimize our tooling process and improve accuracy and efficiency of our mold to ensure customers can get quality product.
Our expertise in tooling leads to better results in molding. We have 11 injection machines for mold trial, mold validation and custom production.
We have enough experience working with materials such as: LDPE, HDPE, PP, ABS, PC, PS, PVC, PA, PMMA, POM, TPU, TPR, TPE etc.
