| Prod Model: |
J1803142 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Equipment: |
CNC, EDM, Wire Cutting Machine, Drilling Machine |
| Heat Treatment: |
Nitriding |
| Mould Running: |
Full Automaticity |
| Design Time: |
7~10days |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Single-Process Mode |
| Application: |
Furniture |
| Installation: |
Fixed |
| Plastic Material: |
PP |
| Design Software: |
Ug, Proe, CAD, Catia, Solidworks |
Product Description

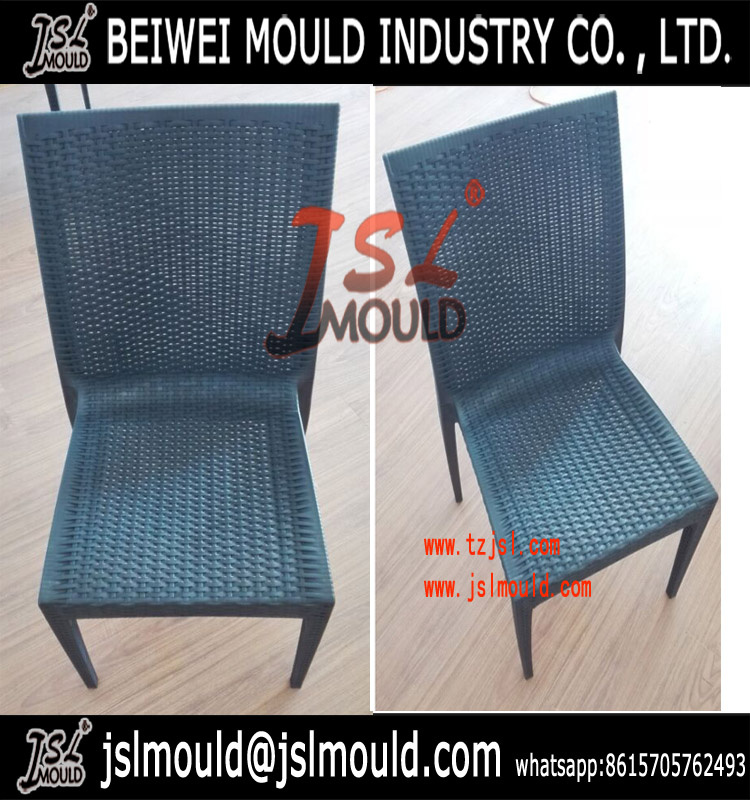

Product Name: Plastic Injection Rattan Armless Chair Mould
Product material: PP
Core&Cavity Steel: 2738
Steel hardness: HRC35-38
Mould Standard: DME
Cavity Number: ONE
Injection System: SIDE GATE
Ejector System: EJECTOR PIN+OIL CYLINDER
Cycle Time: 180S
Tooling lead time: 60DAYS
Mould life: 500, 000SHOTS
Quality assurance: ISO9001
Our Advantage
1. High quality
2. Reasonable price
3. On time delivery
4. Good After-sale service
5. Strict quality control
6. All the mould are automotic.
Offer you
In-time response on letters, telephone calls or fax
In-time supply the quotation and mould designs
In-time communication on the technical points
In-time sending pictures for the mould machining progress and mould finishing schedule
In-time mould test and sample delivery
In-time mould delivery.
For more information please contact us.
JSL Mould Quality Control
For the Q/C of mould, there are 3 steps:
1. Mould Material Q/C
- Mould Steel Checking(Hardness, flaw detection)
- Mould Standard Spare Parts Checking(hardness, size, flaw checking)
2. Mould Making Process Q/C
- design checking (part design, mould design, mould engineering drawing)
- checking each part of mould's size after machining, according to 2D drawing
- mould testing(check mould running condition)
3. Check with customer's requirement again before mould shipping.
Beiwei Mould Industry Co., Ltd. is the leading plastic moulds manufacturer in China, Based on the precision tooling, high technology and top mentality mould design. Jsl mould has established the main market in Spain, Brazil, Sweden, Australia, Ireland, U. S. A and etc.
Our products covers Plastic injection molding, Plastic blow molding, BMC/SMC/DMC/GMT glass fiber mold, Plastic injection molded products and Metallic punch products.
We use PRO-E, Solidworks, U. G., and Auto-CAD for moulds and products design, with very strong mould design and drawing reading ability. This ensures the good technical communications with clients, which can avoid any mistake occur.

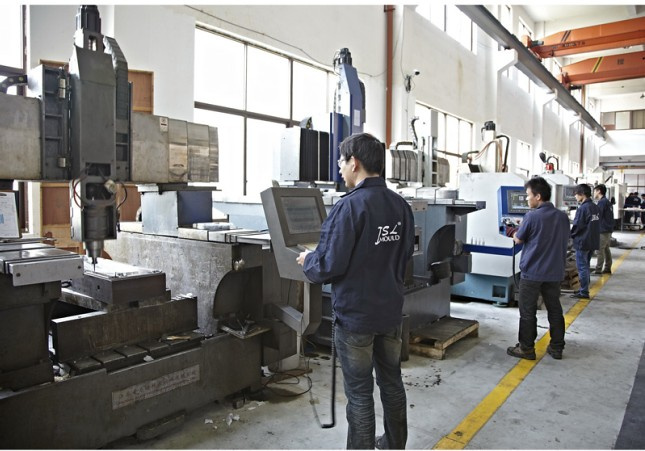

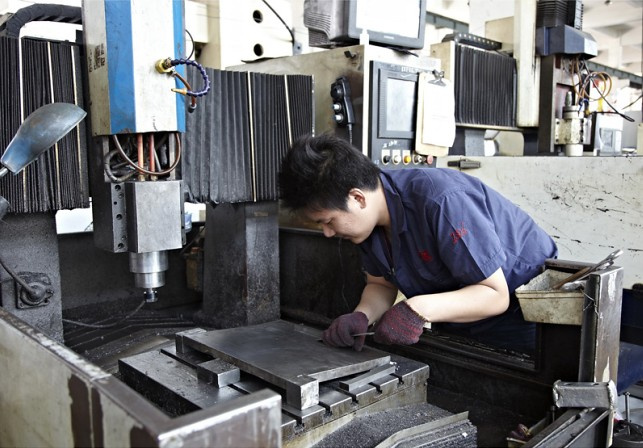

We have utilized modern equipment such as CNC machining center, EDM machine and EDM wire cutting machine. Modern CAD/CAM/CAE systems, such as those using UG, ProE, Solidworks and Cimatron, are also in place to assure the quality of our molds and molded products.
Our mission is to provide our customers high quality products and services. We aim to exceed our customers' expectations in terms of pricing, quality and on-time delivery.
