| Price: | US $ 11000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | ST34 |
|---|---|
| Shaping Mode: | Injection Mould |
| Process Combination Type: | Single-Process Mode |
| Application: | Commodity |
| Installation: | Fixed |
Sautau Company New Molds making department
Product Description

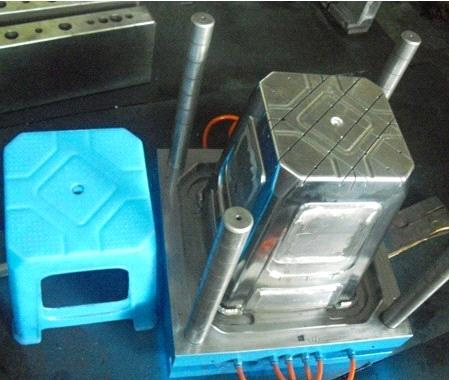

STOOL MOULDS SPECIFICATION: | |
Adult stool,Children stool,stackable stool,foldable stool | Injection mould,plastic mould,plastic moulding,injection moulding |
Stool Mould Name: | Adult Stool Mould |
Stool Mould Size: | 800*600*600 |
Stool Mould cavity: | 1 cavity |
Stool Mould Size: | 1350x860x800mm |
Suitable machine: | 500T injection machine |
Stool Mould material: | P20 |
Stool Mould life | 800K |
Runner system | Cold runner,sprue gate |
Ejection system | Ejector plate |
Stool Mould running: | Semi automaticity |
Stool Mould features: | Simple structure mould. Optimal cooling system, Good Polishing, Precision air venting, Interchangeable back design inserts |
Injection cycle time: | 35 seconds |
Table Mould normally delivery time: | 50 days |
Company Profile
Sautau Mould is the new concept in mould making in China. After more than 20 years of experience, Sautau faces the new challenge of creating better and more reliable partnerships around the world. It was in 2013 that we began to expand our business and improve our service.We have enough experience for making Plastic homeware mold such as Plastic basket mold,plastic container mould,plastic stackable bowls mold.Plastic industrial mould such as plastic crate mould,plastic pallet mould,plastic paint bucket,plastic bobbin mould,plastic workshop chiller mould.Plastic Chair Mould,Plastic Table Mould,Pet Preform mould,Pet Blowing Molds,Motor parts mould,automobile parts mould and so on.
Research&Designing
Simulation Plastic Flow: Simulation of plastic melt flow. To optimize and injection mould design of plastic parts, potentially reducing parts defects, improve the molding process.
Simulation Gating System: The cold/hot runner and gate configuration of modeling and Optimization. Improvement of parts surface, reduce warping of parts and cycle furthest.
Simulation Cooling: Improving the efficiency of the cooling system, reduce warping of parts furthest, so that the surface is smooth, and reduced cycle times.
Simulation Shrinkage and Warping: Evaluation and injection mould design of plastic parts in order to control shrinkage and warping.
Professional Forming Process: On a wide range of injection moulding processes and specialized application process flow simulation, especially in gas-assisted injection mould. For example: gas rattan chair.

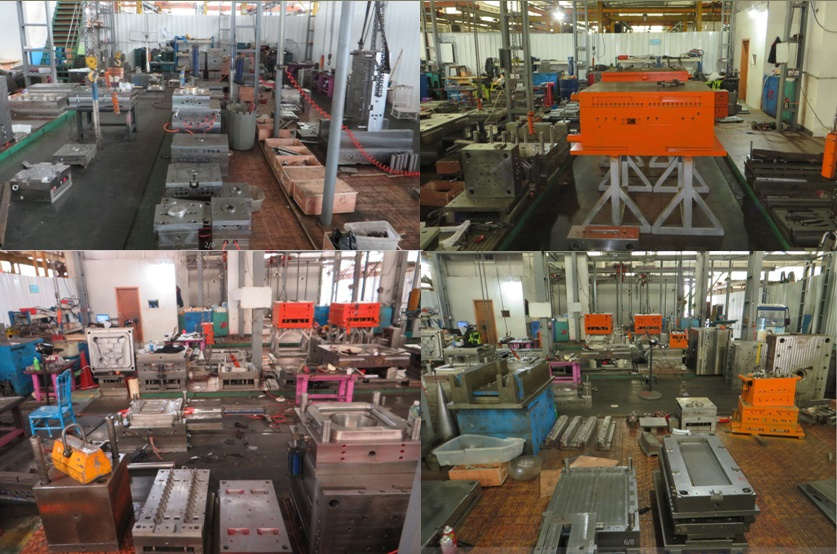

Workshop shows
This is new molds making workshop belongs to Sautau Company

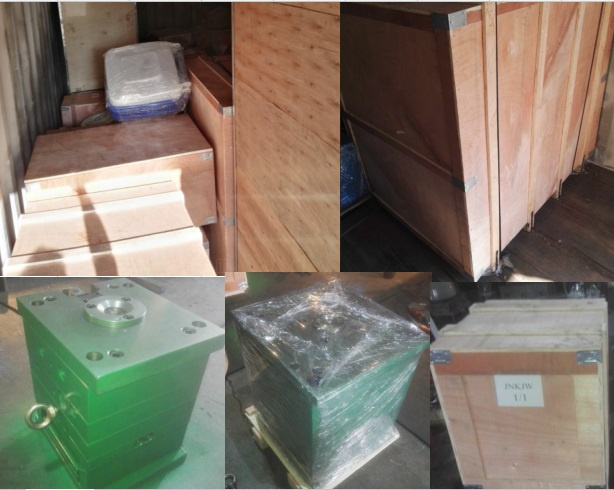

Delivery States
This is export standard package pallet for easy moving
