| Price: | US $ 15000-20000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ZP375 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Speed: | 300r/Min |
| Inner Diameter: | 952.5mm |
| Gear Ratio: | 3.56 |
| Hardness: | HRC58-62 |
| Certificate: | ISO,API |
| Material: | Steel |
| Process: | Hobbing |
| OEM: | Ok |
| Others: | Customized in Drawing or Samples |
| Shape: | Helical Gear |
| Usage: | Water Well |
| Power Type: | Diesel |
| Type: | Rotary Drilling Rig |
| Condition: | New |
About Us
As a company of industries and trading integration with ISO 9001-2008 Certificate, Changzhou Baoxin Metallurgy Equipment Manufacturing Co., Ltd. has been in manufacturing roll forged sheaves,forged crane wheels and spiral bevel gears and other spare parts for rotary table,metallurgy equipment, hoisting machinery, oil drilling rigs, and heavy decelerator boxes for many years, with professional experience.
Description:

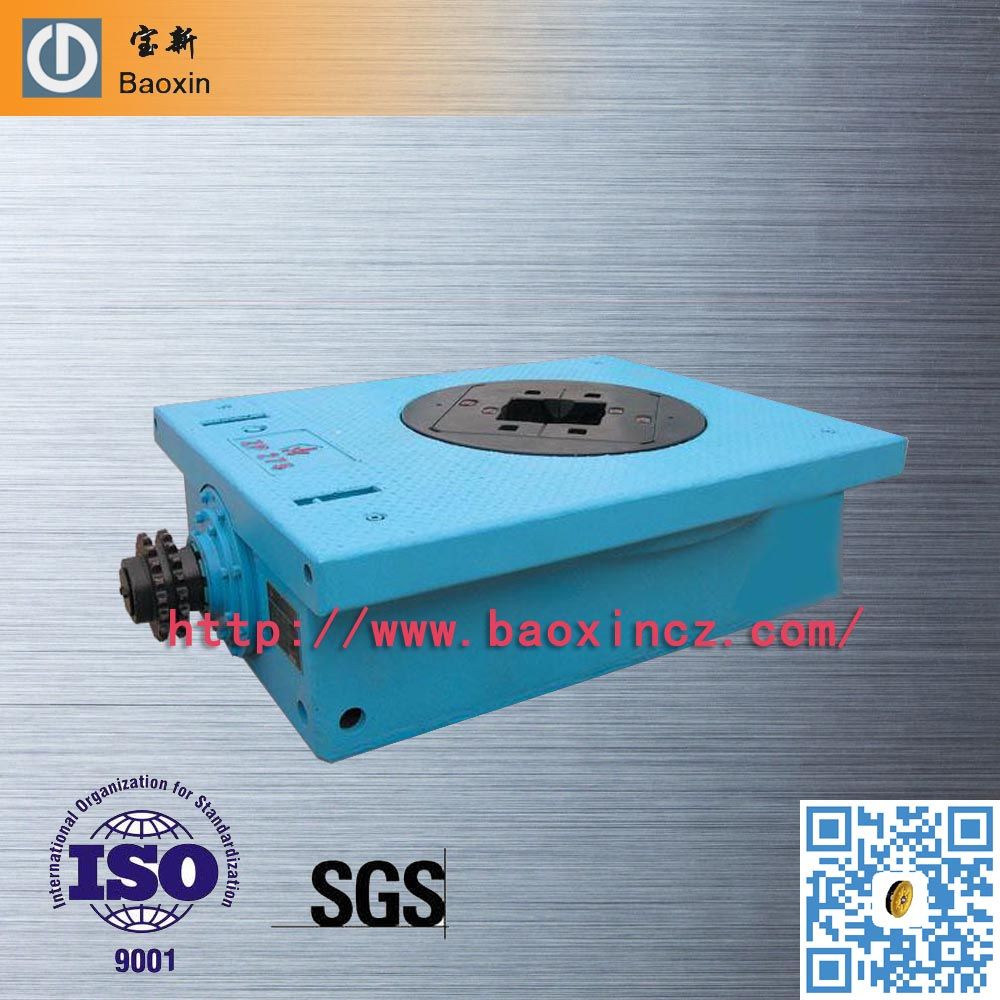

ZP375 type rotary table is mainly used as supporting device to petroleum,natural gas,geothermal and deep water well drilling rigs.This product is manufactured according to API spec 7K(2001 edition) and the SY/T5080-2004 standard(standards of petroleum and natural gas industries).It is also named turntable.Its gear wheel and pinions are all made of alloy steel.Our rotary table features higher load capacity,small size and lighter weight.
Features:
1) Master bushing and kelly roller bushing can be square drive type or pin drive type.
2) Pin drive type master bushing conforms to API standard.
3) ZP375 type rotary table have full lubricable and steady seal.
4)Long clips and short clips are both applicable for the turntable.
5)The driving mechanism of this product is spiral bevel gear.It turns steady and has long lifespan.
6)The shell of this device is wielded with metal structure.It features good rigidity and high accuracy.
7)Splash lubrication is adopted in the gear and bearing of the rotary table.The lubrication is reliable.
Application:

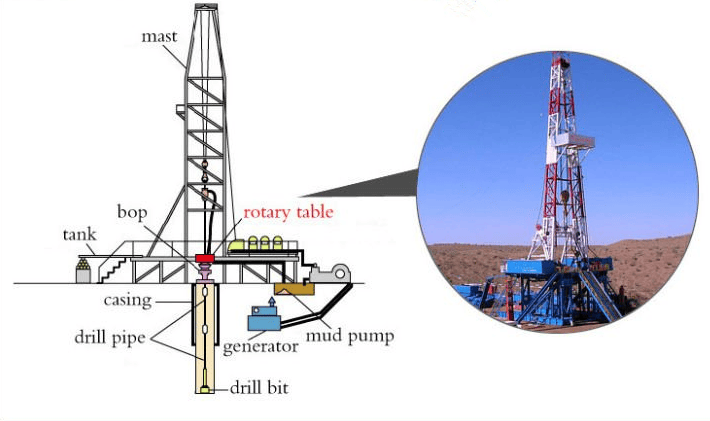

1) In drilling process and salvage procedure,the turntable is used for spinning drill pipe.
2) Rotary table can bear the restoring torque of the drill pipe in turbo drilling.
3) It is also used to hole the pipe when pulling drill pipe or casing.
4)When pulling out the drill bit,the turntable is used to unload drill pipe pin.
Maintenancey:
1) When installing the rotary table,operator should level the device and adjust the direction of the sprocket wheel.
2) Oil in new turntable is bled off during transportation.Clients should flush the product before using it and fully lubricate it.
3) Maintainer should open the cover plate on top every month and clean the mud once or twice a month.If the rotary table is frozen in winter,it should be cleaned more frequently.
4)After running a new turntable for 30 years,lubrication oil should be renewed.After that,lubrication oil should be changed every three months.
Parameters:
| Rated Static Load | 5,850kN |
| Inner Diameter | 952.5mm |
| Top Rotating Speed | 300r/min |
| Gear Ratio | 3.56 |
| Distance from Table Axis to Center of First Row of Sprocket Teeth | 1,353mm |
| Weight | 7,548kg |
| Exterior Dimensions(LxWxH) | 2,468x1,810x718mm |

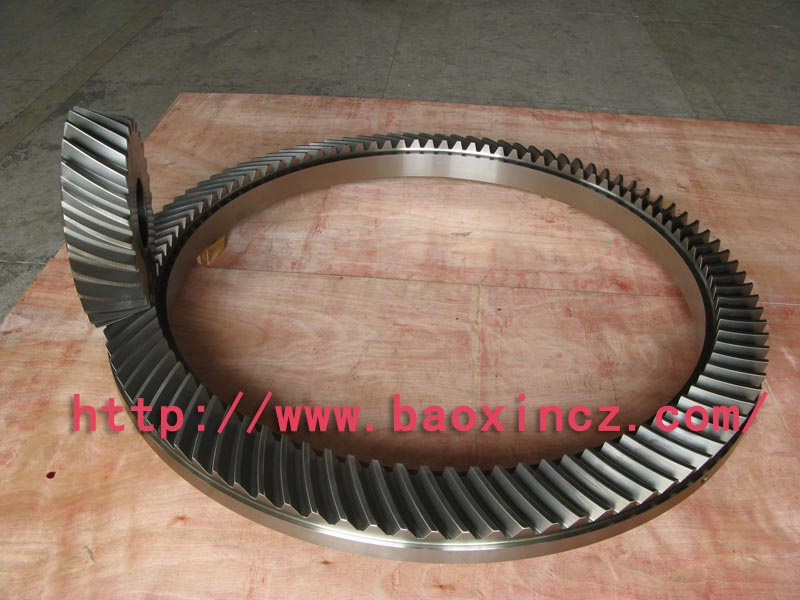

Spiral Bevel Gear and Pinion Sets for Rotary Tables:
| Model | ZP175 | ZP205 | ZP275 | ZP375 | ZP375AS | ZP495 | ZP205A | |
| Diameter of opening | mm | 444.5 | 520.7 | 698.5 | 952.5 | 952.5 | 1257.3 | 520 |
| (in) | 17.5 | 20.5 | 27.5 | 37.5 | 37.5 | 49.5 | 20.5 | |
Distance from table axis to center inner row of sprocket teeth | mm | 1,118 | 1,353 | 1,353 | 1,353 | 1,478 | 1,651 | 1,353 |
| (in) | 44 | 53.25 | 53.25 | 53.25 | 58.18 | 65 | 53.25 | |
| Max.static load rating | kN | 1,350 | 3,150 | 4,500 | 5,850 | 5,850 | 7,250 | 2,000 |
| lbs | 300,000 | 700,000 | 1,000,000 | 1,300,000 | 1,300,000 | 1,600,000 | 440,000 | |
| Max.working torque | Nm | 13,729 | 22,555 | 27,459 | 32,362 | 32,362 | 36,285 | 13,729 |
| lb.ft | 10,132 | 16,646 | 20,265 | 23,883 | 23,883 | 26,778 | 10,132 | |
| Max.speed | r/min | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Gear ratio | 3.58 | 3.22 | 3.67 | 3.56 | 3.56 | 3.93 | 3.22 | |
Overall dimensions (LxWxH) | mm | 1,935x200 x585 | 2,291.5 x1,475 x668 | 2,392x 1,670x 685 | 2,468x 1,810x 718 | 2,468x 1,810x 718 | 2,940x 2,184x 813 | 2,250x 1,440x 659 |
| (in) | 76x11x23 | 90x58x26 | 94x65x27 | 97x71x28 | 91x71x28 | 116x86x32 | 89x57x26 | |
| Weight | kg | 3,888 | 5,530 | 6,163 | 7,548 | 8,026 | 11,626 | 4,560 |
| lbs | 8,600 | 12,000 | 13,587 | 16,600 | 17,700 | 25,600 | 10,000 | |
Notes:Changzhou Baoxin reserves the right to change dimensions at any time without notice.

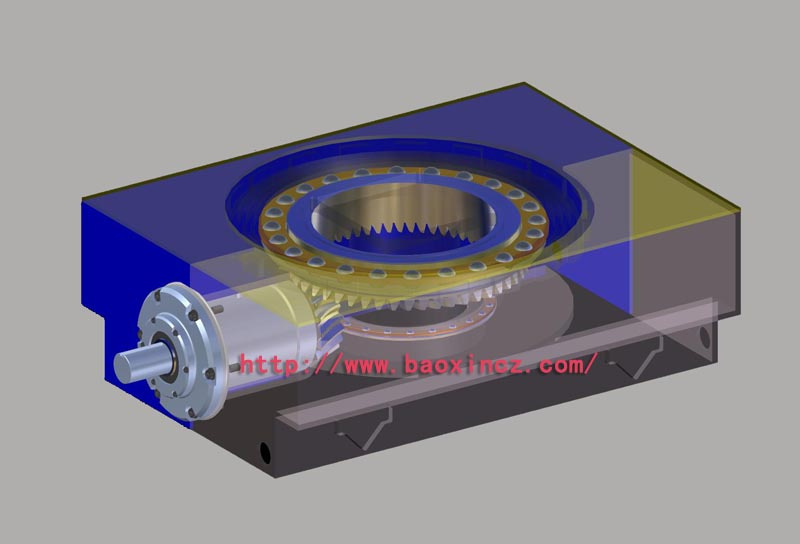

Structure:
ISO9001:2008 Quality Certification:
Our Service:
If you are interested in any of our products, please contact me freely! Warmly Welcomed your visit to our factory in China, OEM service will be ok.
