| Prod Model: |
JL-ILD2.5 |
| Brightness: |
1300 |
| Delivery Time: |
10~15days |
| Warranty Time: |
2 Yeas |
| Viewing Angle: |
H:140°, V:120° |
| Packing Size: |
710X550X730mm (6 in 1) |
| Weight: |
10kgs Per Piece |
| LED Lamp: |
King Light or Customized |
| Power Supply: |
Meanwell or Customized |
| IC: |
Mbi5153, Mbi5124 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Market Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Conference |
| IP Rating: |
IP43 |
| Certification: |
FCC |
| Pixel Density: |
160000 |
| Scanning Mode: |
1/32scan |
| System Operating Platform: |
Windows XP, 2000, etc |
Product Description
P2.5 is extremely high definition which make small LED TV. Compared to traditional TV, it's more colorful, fresh and vivid and eye catching.
High resolution high precision;

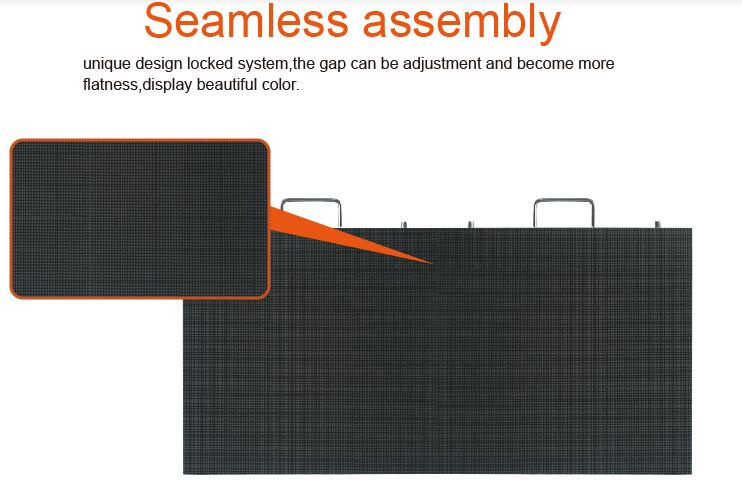

Seamless splicing,High gray scale, good performance ;
Fanless design ;
Large view angle ;
The most effective solution for indoor HD billboard ;

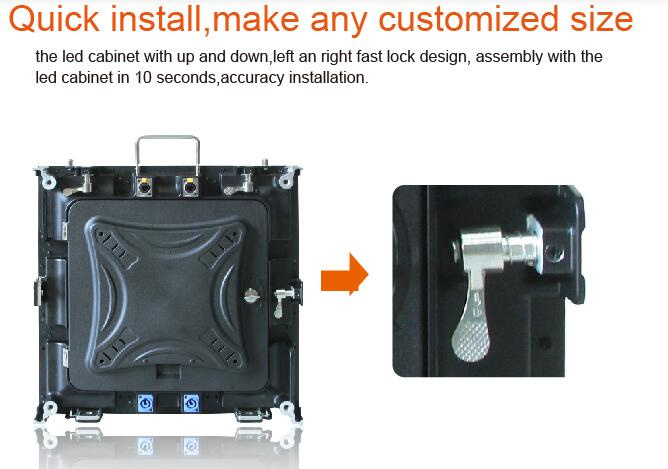

With fast locks,easy to install and dismantle ;
Light weight:about 7kg/cabinet .
Features:
1. Highest resolution, Up to Pitch 2.5mm. 160,000 pixels in 1 square meter. With high density, it is the most popular for high end market considering the price is competitive based on so good performance.

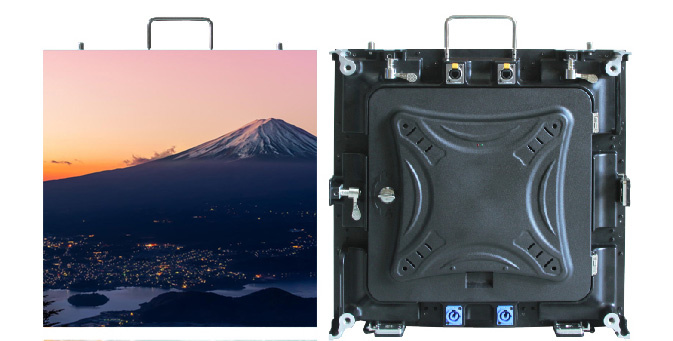

2. Die-casting aluminum cabinet, strong and high precise,tolerance is less than 0.2mm ,it's ultra-light and super-light
3. Can be viewed clearly in 2 meters
4. MBI 5153 high end driver IC ,high refresh rate, high color output ,high grey scale
5. Linsn or novastar control system, guarantee very high refresh rate, no scaning line when taken photos or videos.
6. Can emit heat very well , quality is stable
7. Large viewing angle, Up to 140° (Horizontal & Vertical)
Specifications:
| Model | P2.5 LED display for rental indoor |
| Pixel pitch | 2.5mm |
| Pixel density | 160000 dots /sqm |
| Module size(W*H) | 160mm(width) * 160 mm(height) |
| Module pixels(W*H) | 64 dots * 64 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1 / 32 scan |
| LED lamp type | SMD2020 |
| Cabinet size(W*H*D) | 480mm*480mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 1300cd/sqm. |
| Power consumption(one cabinet) | Max:600W / cabinet , Average: 120W / cabinet |
| Operating Voltage | AC110V±10% or 220V ±10%; 50---60HZ |
| Net weight | 6Kg / cabinet |
| Operating temperature | -30°C----+70°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protections for outdoor display | IP30 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
